Telescoape > Vixen > Vixen Refractor acromat AP 103/795 ED103S SXD Sphinx
Nr. articol: 14776

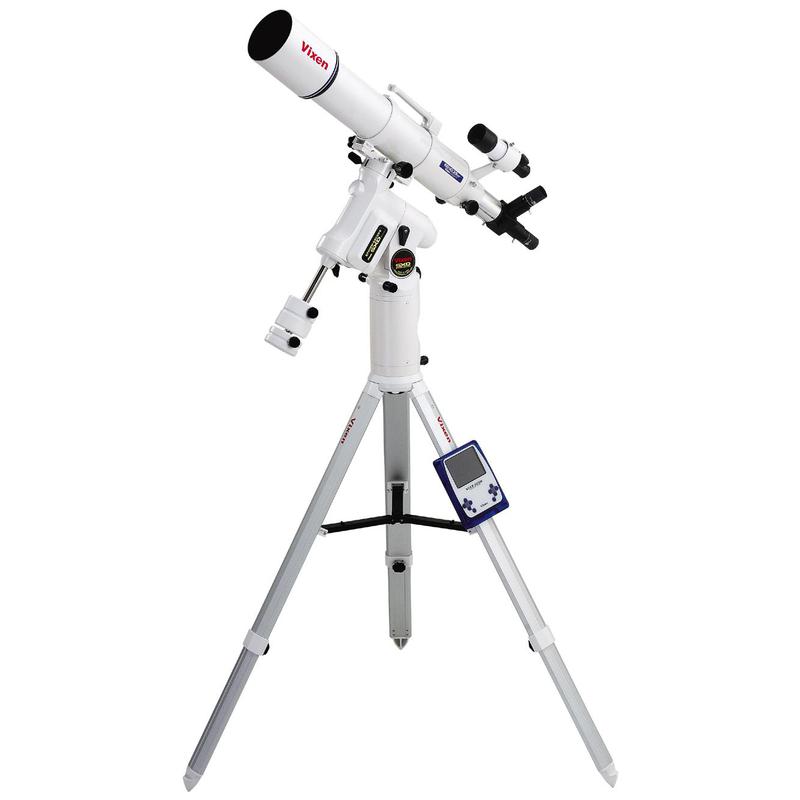

Refractor acromat AP 103/795 ED103S SXD Sphinx

$ 5.400,00 incl. TVA plus costuri de livrare
prea scump?
termen prelungit
produsul nu mai este disponibil + timp de tranzit

Descriere produs

Din pacate aceasta descriere nu a fost tradusa momentan in limba romana, din aceasta cauza veti gasi in locul ei descrierea in limba engleza.

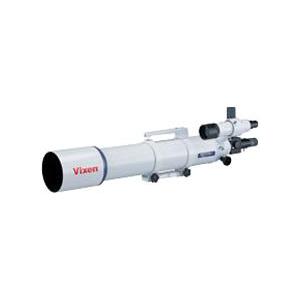

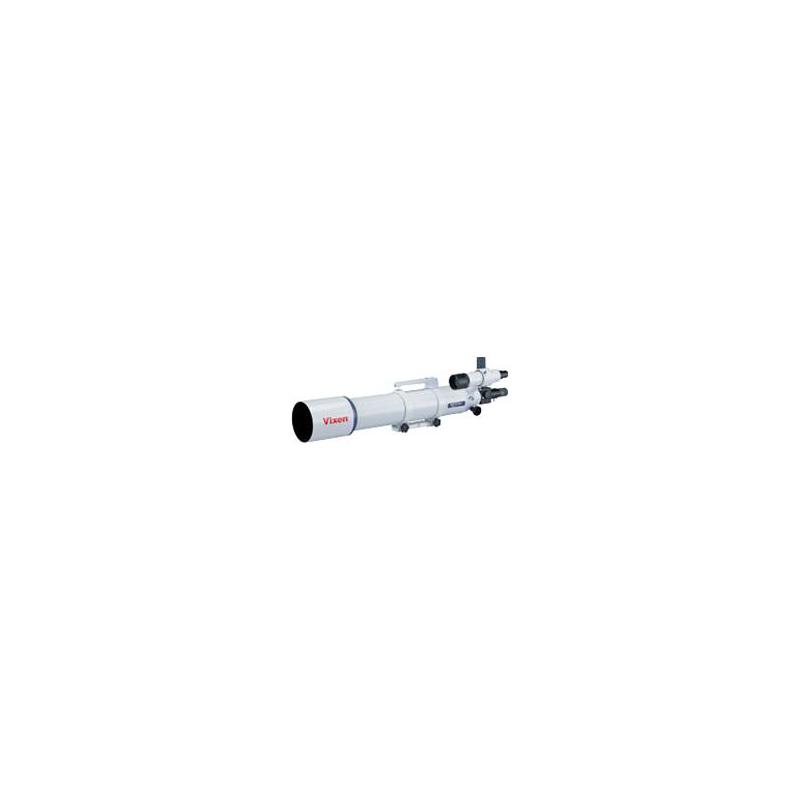

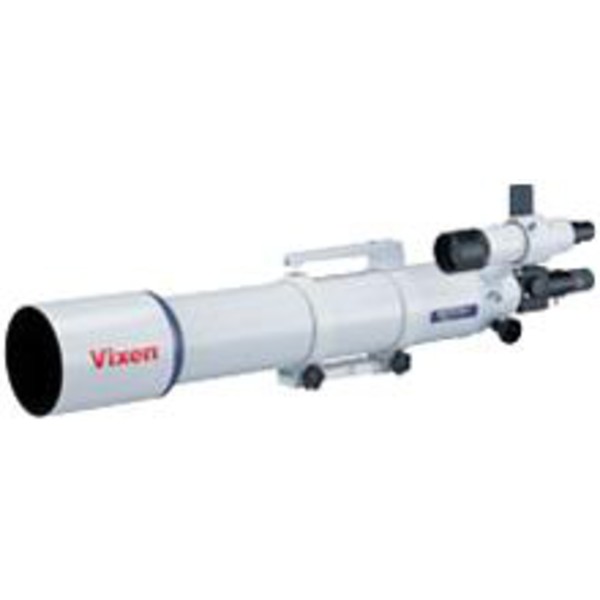

Vixen AP 103/795

The newly designed high definition ED lens in Vixen's ED103S gives excellent optical performance in a short optical tube for easy handling. The new ED lenses feature brighter images from the shorter f/7.7 focal ratio and capture crisp, pinpoint star images for your eye’s enjoyment. Vixen's ED glass produces clear and high contrast viewing, virtually free of false color. The design uses environmentally friendly glass technology, free of hazardous lead that helps to support a cleaner global environment.

Vixen's new lenses focus the full visible spectrum of visible light to a critical point much more accurately than past ED products. The ED103S lenses are almost free of chromatic aberration in all colors and are critically sharp edge to edge. The astro-photographer will be especially pleased with the high contrast images through this telescope. The ED103S comes complete with 90mm tube rings, compression ring, and Vixen Dual Speed Focuser.

Vixen Sphinx Deluxe mounting

While the outsides might look similar to the standard Sphinx Mount, the changes that have happened under the hood are huge! Incorporating one piece hardened steel RA and DEC shafts with needle bearings throughout, the new Sphinx D can handle a load capacity up to 50 lbs. The Sphinx D comes complete with PEC, backlash compensation, and the incredibly accurate SX Polar Finder Scope.

Astronomers with larger optical tubes and all level of astrophotographers are sure to feel right at home with the intuitive controls that so many have become accustomed to with the standard Sphinx Mount. Its 4.7" Color LCD Display gives an exact position against its scrolling star chart, any object is a point and look away!

Date tehnice

Optica


Tip
Refractor
Tip constructiv
Dublet Apocromat
Apertura (mm)
103
Distanta focala (mm)
795
Raport focal
7,7
Putere de separatie
1,12
Magnitudine limita (mag)
11,9
Capacitate de colectare a luminii
217
Putere de marire utila maxima
206
Greutate tub (kg)
3,6

Focuser


Tip constructiv
cu cremaliera
Conexiune (spre ocular)
2

Montura


Tip montura
ecuatoriala
Tip constructiv
Sphinx
Control GoTo
da
Surse de curent
12
Consum de energie (mA)
2000
Urmărire
da

Control GoTo


Baza de date
22.725
Software
StarBook
Procedura de aliniere
2-Stele, cea mai stralucitoare stea
Limba GoTo
multilingual

Trepied


Tip
Trepied
Material
Aluminiu
Inaltime (cm)
81-130

Accesorii incluse


Oculare 1.25"
NLV 20mm, NLV 5mm
Cautator
7x50
Contragreutati (kg)
3,7
Alte produse
Unitate Flip Mirror

General


Recomandare speciala
nu

Aplicaţii


Luna & Planetele
da
Nebuloase & Galaxii
nu se recomanda
Observatii in natura
da
Soare
nu se recomanda (doar cu filtru solar adecvat)
Astrofotografie
da

Recomandat pentru..


Incepatori
da
Avansat
da
Amatori experimentati
nu se recomanda
