Stemi 305 is your compact Greenough stereo microscope with 5:1 zoom for biological education, labs and industrial production environments. Observe your samples as they are: three-dimensional and crisp in contrast - no preparation required. Profit from this easy-to-use microscope, where everything is integrated: long-living LED illumination for reflected and transmitted light and documentation, too. Choose between the conventional phototube to have access to all ZEISS microscope cameras or the integrated 1.2 Megapixel Wifi camera to connect several microscopes and share your images via WLAN
Mehr über Mikroskop-Serie Stemi 305...
All-in-One Device
Stemi 305 integrates everything you need – various illumination and documentation.
This compact Greenough stereo microscope comes without additional boxes and cables - just plug it in and switch it on, that’s the installation done
Stemi 305 can easily be operated, also by untrained users. All you have to do is illuminate your object, focus and start snapping images.
Integrated Illumination. Crisp for Any Application
Easily select and mix the integrated LED illuminations: near vertical reflected light, so as transmitted light.
White LEDs generate bright light of daylight color, so each image appears crisp and clear.
You profit from long lifetimes and low energy consumption. LEDs stay cool and they are noiseless and maintenance-free.
Integrated Documentation
Choose between two options for documentation:
Decide for the conventional phototube and get access to all ZEISS Axiocam microscope cameras.
Or choose the integrated camera and Wi-Fi router. With the iPad imaging app Labscope you create your own virtual classroom and share your images.

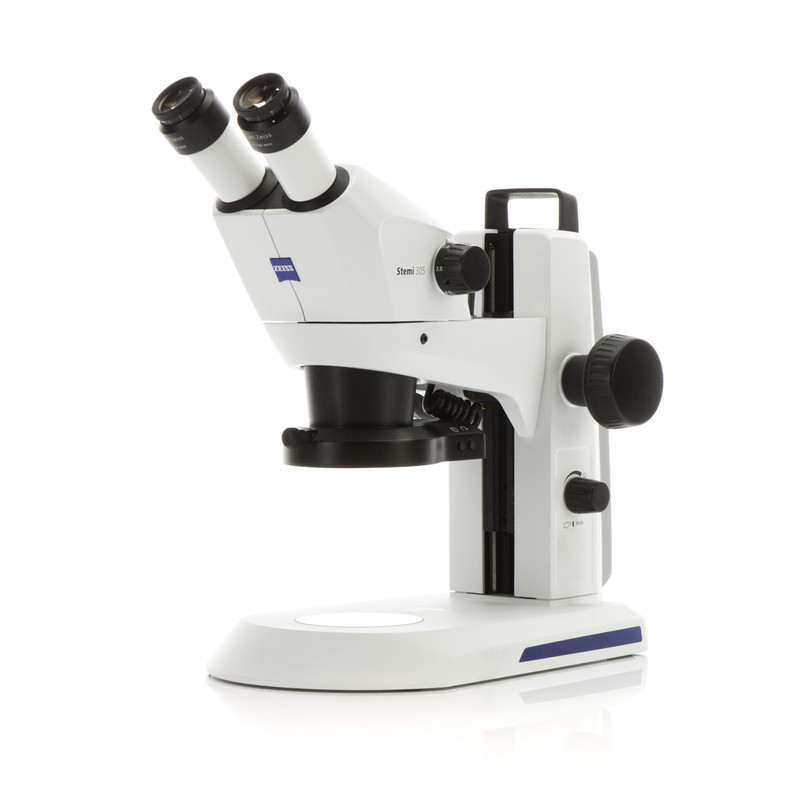

Stemi 305 MAT microscope

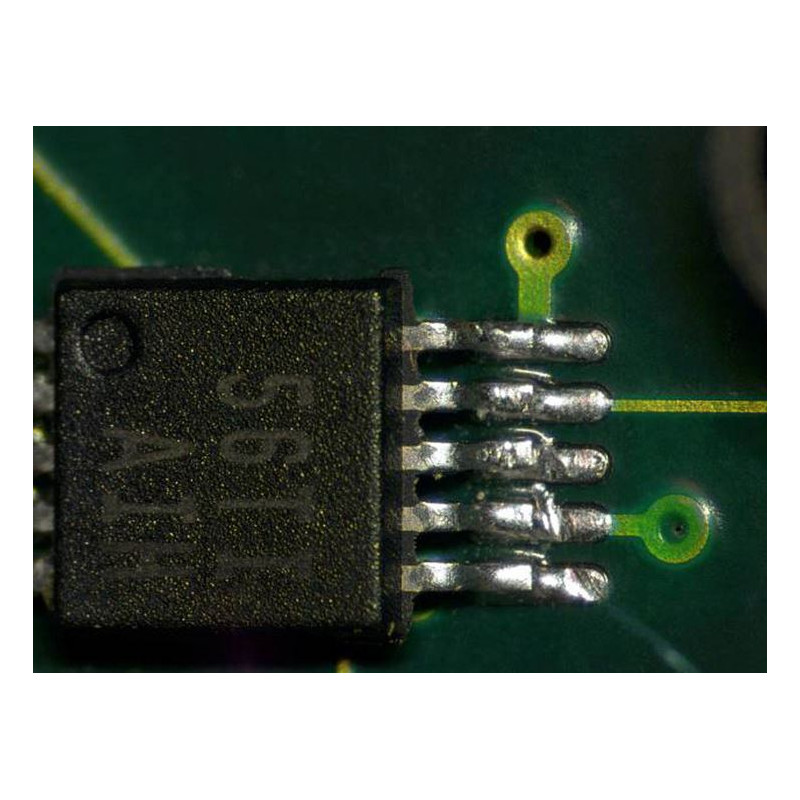

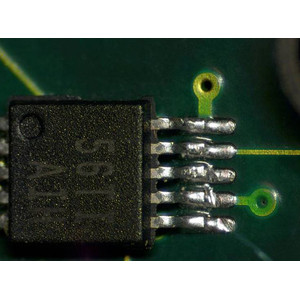

ZEISS Stemi 305 MAT with stand and lighting, ready for operation, especially suitable for industrial production or quality control, especially where ESD features are required (for example, electronics, PCB inspection).
Consisting of:
Stemi 305 ESD microscope body
- Greenough system with 11° stereo angle
- ESD protection function: antistatic surface
- manual 5:1 zoom (0.8 to 4.0X), can be operated from both sides
- fixed zoom click-stops at 0.8X,1X,2X,3X,4X
- free working distance 110mm
- viewing angle 45° with adjustable interocular distance 55 to 75mm
- 30mm eyepiece with maximum field number of 23mm
- D=76mm receiver for Stemi carrier/carrier S
- interface D=66mm for illuminators
- M52 thread for front optics or polarizer

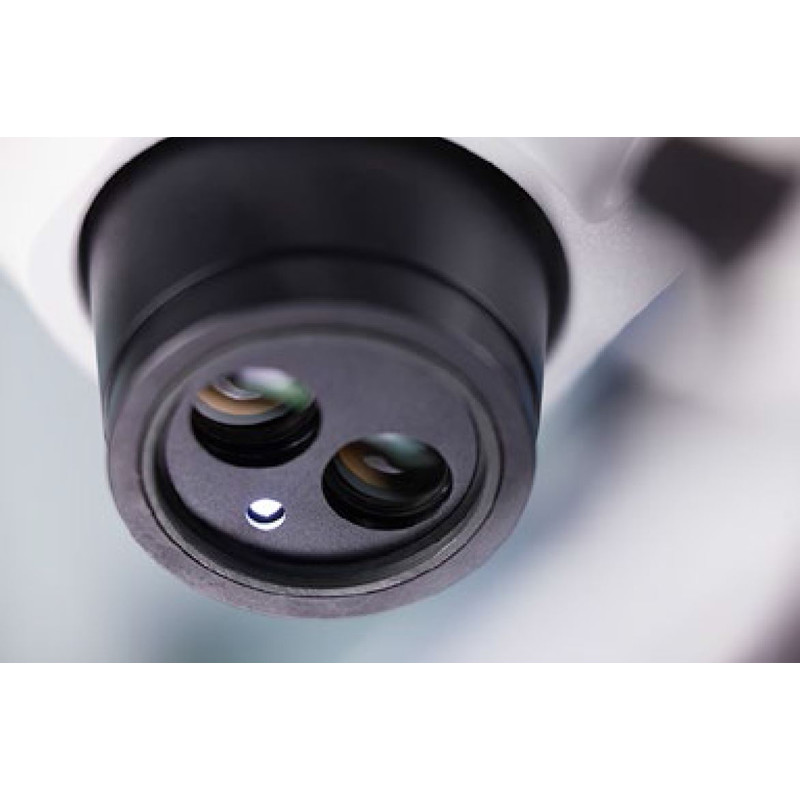

- near vertical built LED lighting (IVI) for K EDU/LAB/MAT stands or K LED controller additionally included
- 2 eyepieces, 10x23, br. foc.
- RJ12 spiral cable
K MAT stand, ESD-capable without lighting

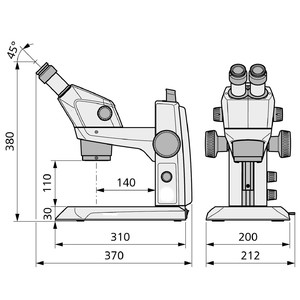

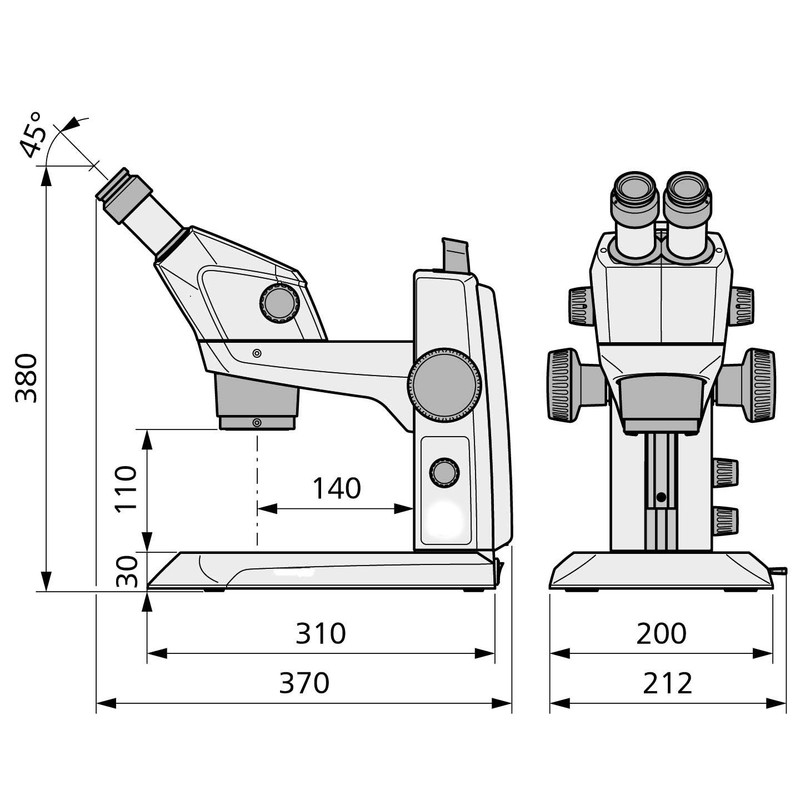

- stand W190xD310xH35 mm
- working surface W160xD195 mm
- interfaces, d=84mm for stages and d=45mm for DL polarizer
- 250mm column with focus drive and handle, travel range 145mm
- Stemi mount , d=76mm, capacity 5Kg, adjustable friction
- 2 sockets - for IVI and K LED lighting
- AL controls for on/off/dimming
- ESD protection function: antistatic surface, grounding connector
- built-in power supply: 12V DC 24W / 100 to 240V AC / 50 to 60Hz
- glass and B/W plastic plate, D = 84x5mm
- country-specific power cable, EURO C7
- dust cover

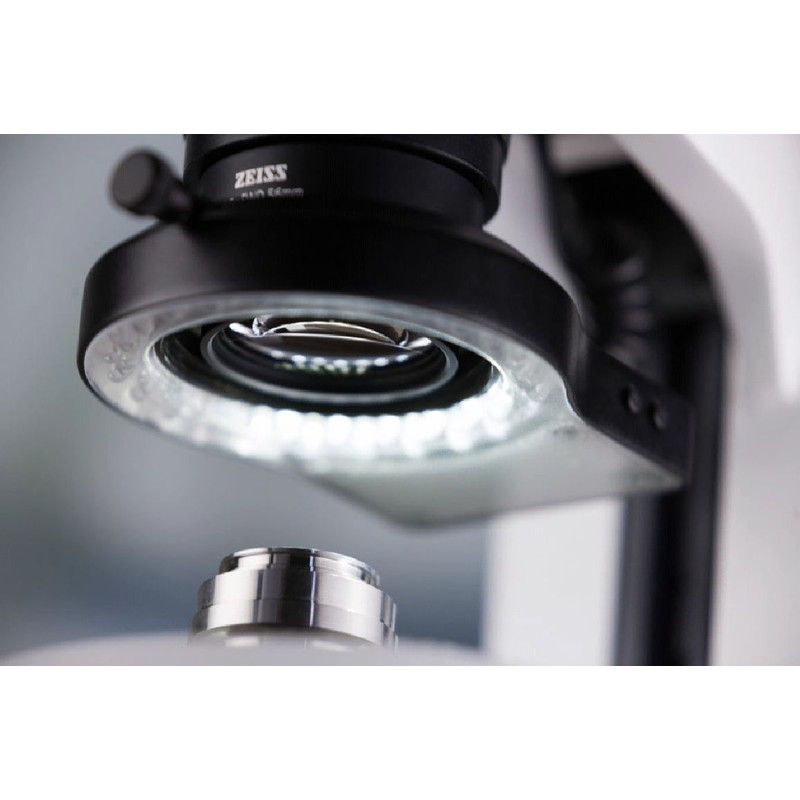

K LED ring lighting, can be used in segments
- 48 LEDs in 2 rows, inclined
- working distance 50mm to 150mm, housing d=66mm
- separate controls for segmentation and rotation
- 4 modes: full-, half- and quarter-circle, or 2 opposing quarter-circles
- manually rotatable in 90° increments or continuous rotation
- for K EDU/LAB/MAT stands or K LED controller
