GEM Series
OPTIKA GEMOLOGY Series includes stereomicroscopes purposely designed for stone inspection and stone setting. Jewels and gems have a variety of grade, which ultimately influence their value and cost on the market; therefore it is important to have solutions that are purposely designed for gemology.
Choose between 20mm or 22mm field of view and simple or gemological stand, depending by the model.
Especially OPTIGEM Series offers the ideal configuration, with multiple options for illumination and contrast techniques, such as incident, transmitted and oblique brightfield / darkfield, polarization and immersion analysis. They come with a special optical condenser configuration to ensure real, perfect darkfield application. OPTIGEM-1 & OPTIGEM-2 are two-in-one gemology instruments that can be used both in vertical and horizontal position in a very easy way, just by turning one knob: the horizontal position extends the use of a gemological microscope, giving the possibility to perform immersion analysis by submerging a sample in liquid.
Specifically Designed for Specialists
Gemological stereomicroscopes are meant to help with stone inspection and stone setting. Jewels and gems have a variety of grades (or quality levels), which ultimately influence their value and cost on the market; therefore it is important to have solutions that are purposely designed for gemology. These tereomicroscopes are equipped with iris and darkfield condenser on the bottom light source, and with a set of on stage tweezers to hold the stone in place.
Much More Than Gemological Stereomicroscopes

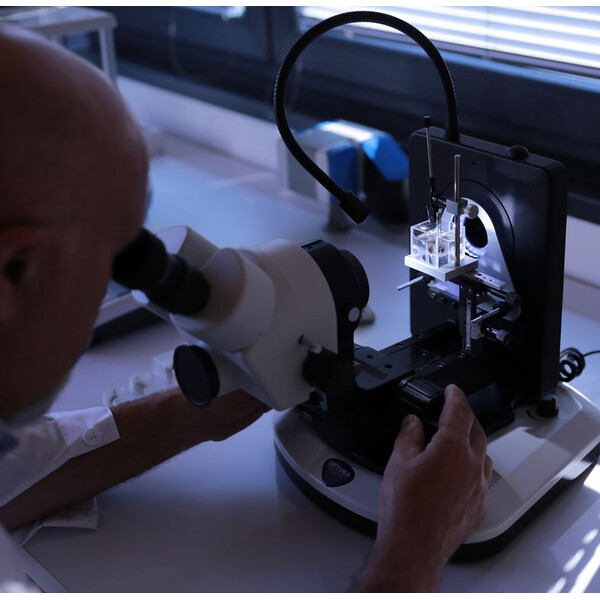

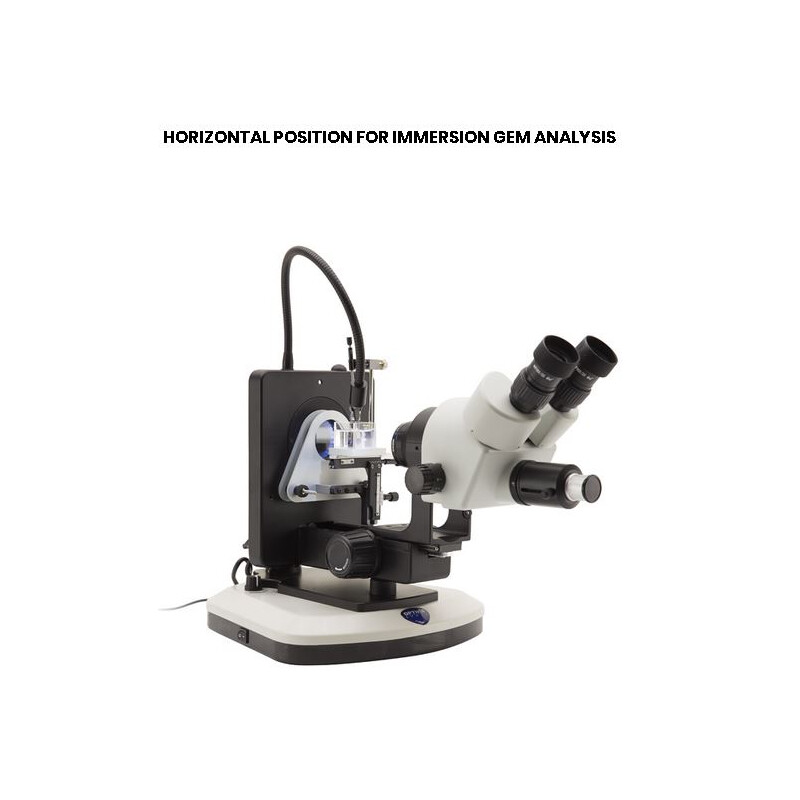

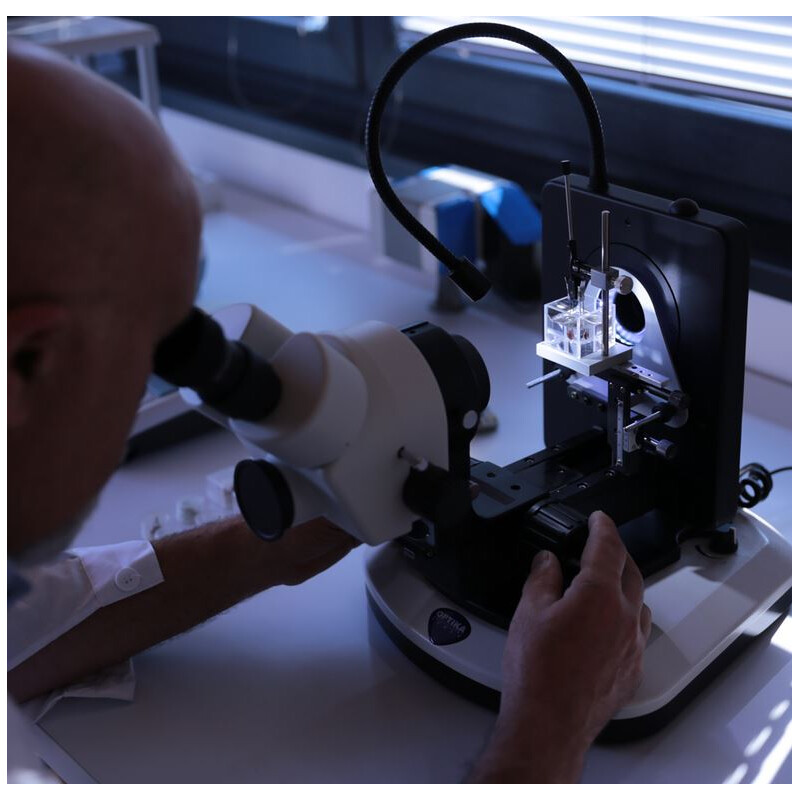

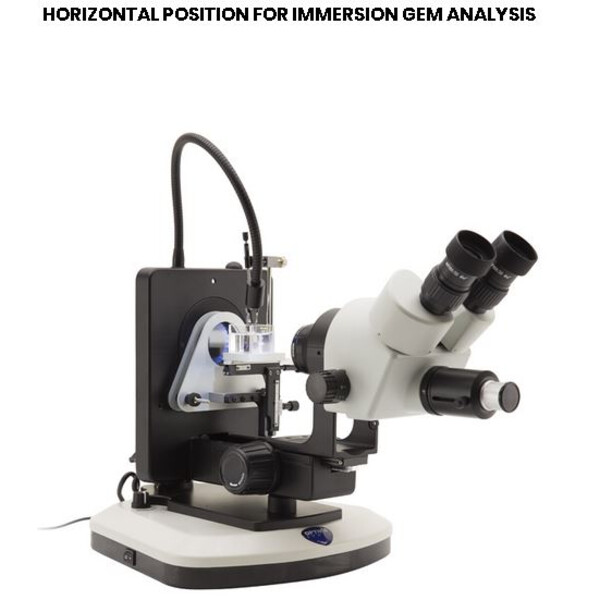

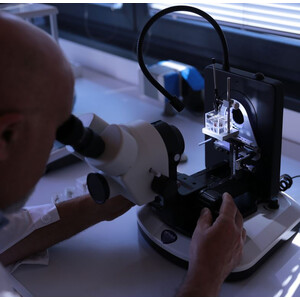

OPTIGEM-1 & OPTIGEM-2 are two-in-one gemology instruments that can be used both in vertical and horizontal position in a very easy way, just by turning one knob (no disassembling and re-assembling operations are required). The horizontal position extends the use of a gemological microscope, giving the possibility to perform immersion analysis by submerging a sample in liquid. If the stone’s refractive index is close to the liquid’s one, immersion makes the interior more visible by reducing the effects of refraction and surface reflection. This enables you to see a gem’s inclusions or color distribution more easily. Immersion is also necessary to see crystal growth structures, which might help you separate natural from synthetic corundum. Features like curved growth striae in flame-fusion synthetics, or separation planes in assembled stones, are often far easier to see when the stone is immersed.
Incredibly Versatile Operations
OPTIGEM Series offers multiple options for illumination and contrast techniques, such as incident, transmitted and oblique brightfield darkfield, polarization and immersion analysis (only on Optigem 1 & 2). They come with a special (see the dedicated chapter for further information) optical condenser configuration to ensure real, perfect darkfield application.
Ultrabright LED Condenser for Optimized Illumination

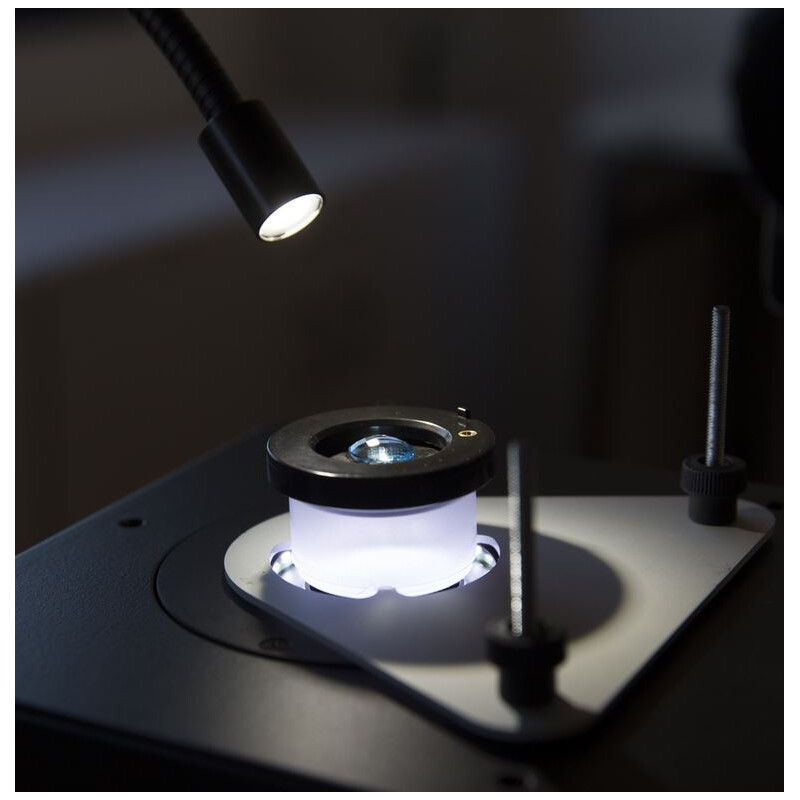

An ultrabright LED-based electronic condenser with intensity control allows to switch from brightfield to darkfield; it also produces perfectly the colourvof daylight. The condenser uses a new optical configuration especially created in order to obtain a perfect darkfield application.

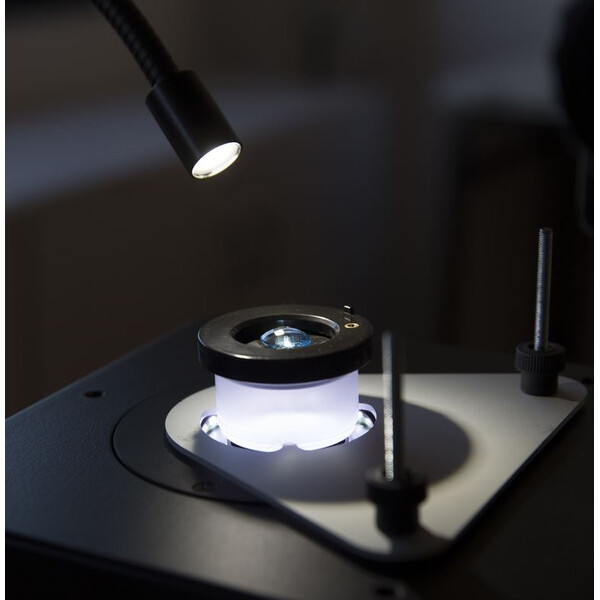

Dedicated LED Illumination For Outstanding Results During Grading

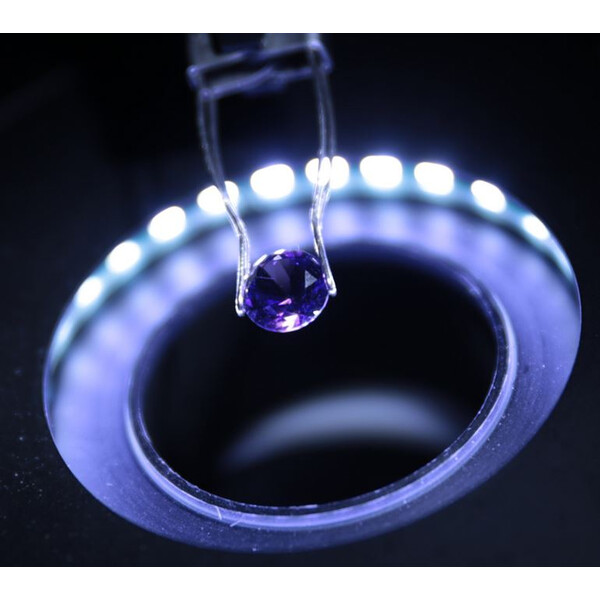

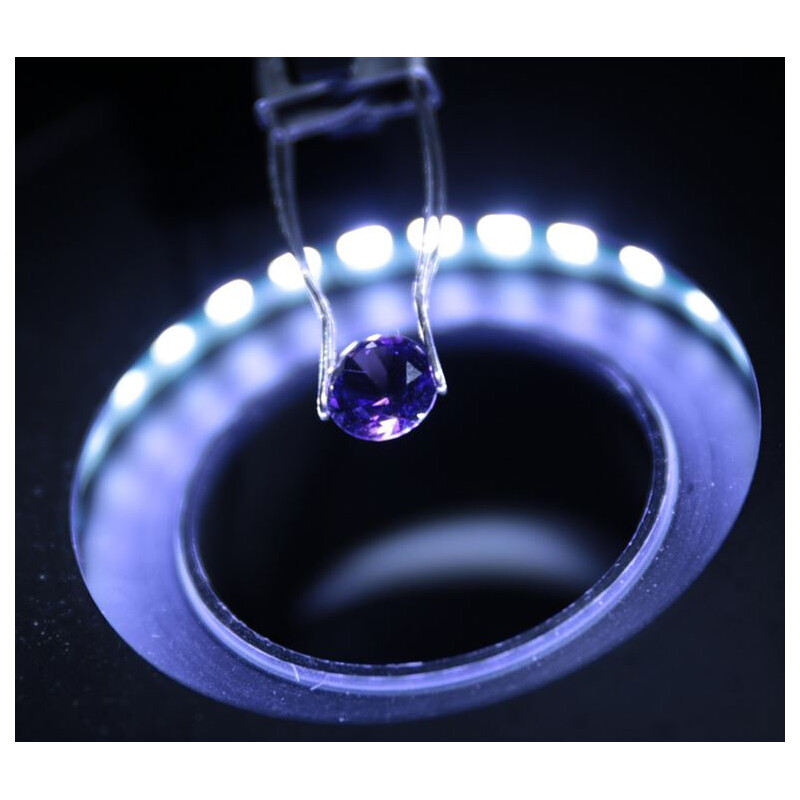

The requirement for a pure white (6.3000 K), particularly high intensity light is because only incident light is seen: a flexible arm can be freely positioned and the brightness of the LED illumination accurately adjusted. LED transmitted illumination is available through a diffusing disc (for brightfield) or as a side-emitting LED ring (darkflield, with black background) only on Optigem 1 & 2. A selector gives the chance to set the microscope in 3 configurations: brightfield only, darkfield only, or both brightfield and darkfield.

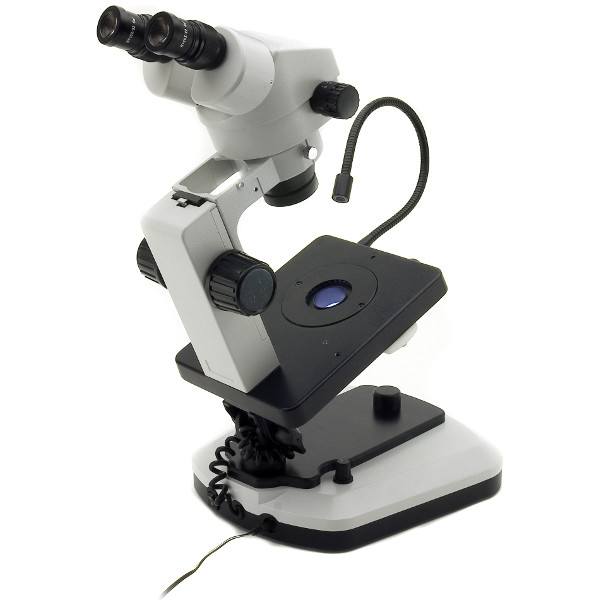

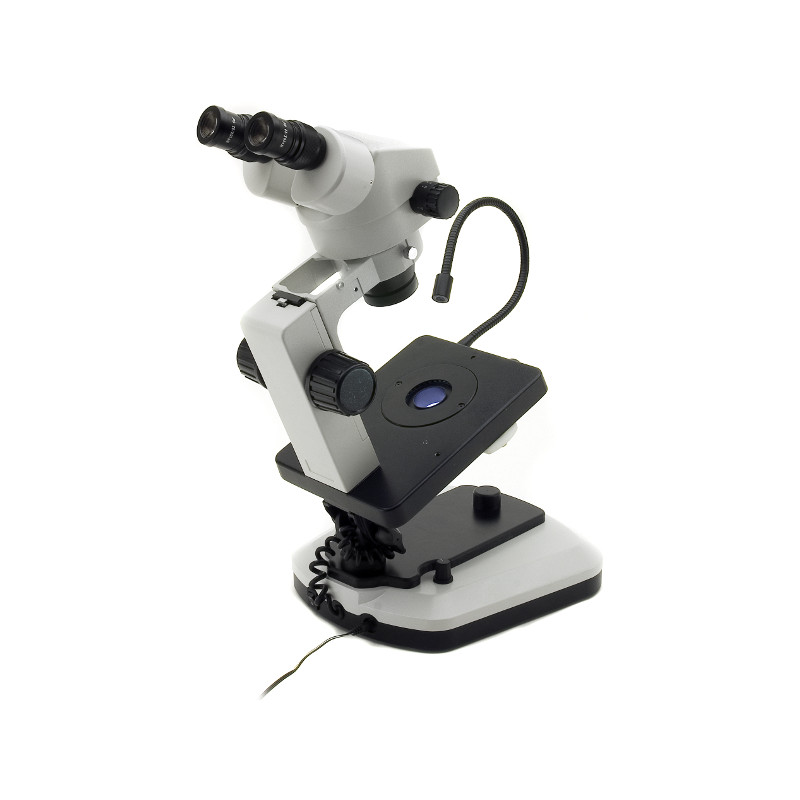

OPTIGEM-1
Observation mode: Brightfield, darkfield.
Heads: Binocular, 45° inclined, 360° rotating.
Illumination
Incident illumination: flexible arm with fluorescent tube 7W 6400K (pure white). Independent ON/OFF switch.
Transmitted illumination: system for observation with brightfield and darkfield, based on 30W halogen illumination and a dedicated reflecting system. Brightness adjustment.
Iris diaphragm and removable black background for contrast enhancement with darkfield.
Input: 240Vac, 50Hz; Fuse T3.15A 250V
Max. required power: 45W
Focusing By means of a rack and pinion controlled by a pair of knobs placed on both sides of the stereomicroscope.
Stage Adjustable gemology clip.
Base 360° rotating.
Stand Rack-and-pinion stand (it can be inclined 45°).
Base: 305x260x70h mm.
Weight: 7 Kg
Diopter adjustment on both eyepieces.
Interpupillary adjustment 55-75 mm.
Eyepieces Widefield eyepieces WF10x/22 with field number 22.
Objectives Parfocal achromatic objective 1X
Working distance: 110 mm
Zoom range: 0,67x - 4,5x
Zoom factor: 6,71:1
Accessories Instruction manual and dust cover included.
