Microscoape > Microscoape > Lupe stereo > Stereo zoom sets > Motic > SMZ-168 > Motic microscopul stereoscopic zoom SMZ-168-TL, trino, 7,5x - 50x
Nr. articol: 53473

microscopul stereoscopic zoom SMZ-168-TL, trino, 7,5x - 50x

$ 1.360,00 incl. TVA, plus costuri de livrare
prea scump?
termen prelungit
produsul nu mai este disponibil + timp de tranzit

Descriere produs

Mai multe despre această serie SMZ-168...

Din pacate, descrierea acestui produs nu a fost inca tradusa in limba romana, din acest motiv veti gasi in loc o descriere in limba engleza.

SZM168 series

Versatile Stereo Microscope Solution

The SMZ168 Stereo Zoom microscope represents the top-of-the-line model in Motic’s successful SMZ Series of stereo microscopes. Designed for a wide range of biological and material science applications, the SMZ168’s optical quality and versatile accessories will satisfy the most demanding user applications in both routine and research fields. From industrial quality control to biological preparation work, the SMZ168 is a durable workhorse model ready for a variety of applications.

Its Greenough optical system comes with a large zoom range of 6.7:1, parfocal at all magnifications. Its 5-position click-stop magnification mechanism, implemented into the continuous zoom, enables precise reproduction of magnifications, thus simplifying measurements.

An impressive 3-dimensional upright image, combined with an industry leading working distance of 113mm in its standard configuration, allows easy manipulation of the sample. Further, the SMZ168 can convert easily into a complete documentation station by combining it with a member of the Moticam camera series.

The SMZ-168 stereomicroscope provides a reliable, high-quality stereomicroscope for a wide range of potential applications. The Greenough zoom optical system with a zoom ratio of 6.7:1,one of the industries largest, provides a total magnification of up to 50x, suitable for most applications--addition of auxiliary lenses and/or eyepieces enables a magnification of up to 320x with a maximum possible working distance of up to 324 mm. Additional accessories such as polarization and dark field attachments further enhance the versatility of the SMZ-168 stereomicroscope.

Adding a Moticam microscopy camera enables the SMZ-168 stereomicroscope to become a complete documentation workstation. Options such as various stands, head holders, and articulating boom stands ensure that the SMZ-168 will fit perfectly into your workflow. Taken together, the SMZ-168 is a high quality, reliable, and highly versatile stereomicroscope for a wide range of environments and potential applications.

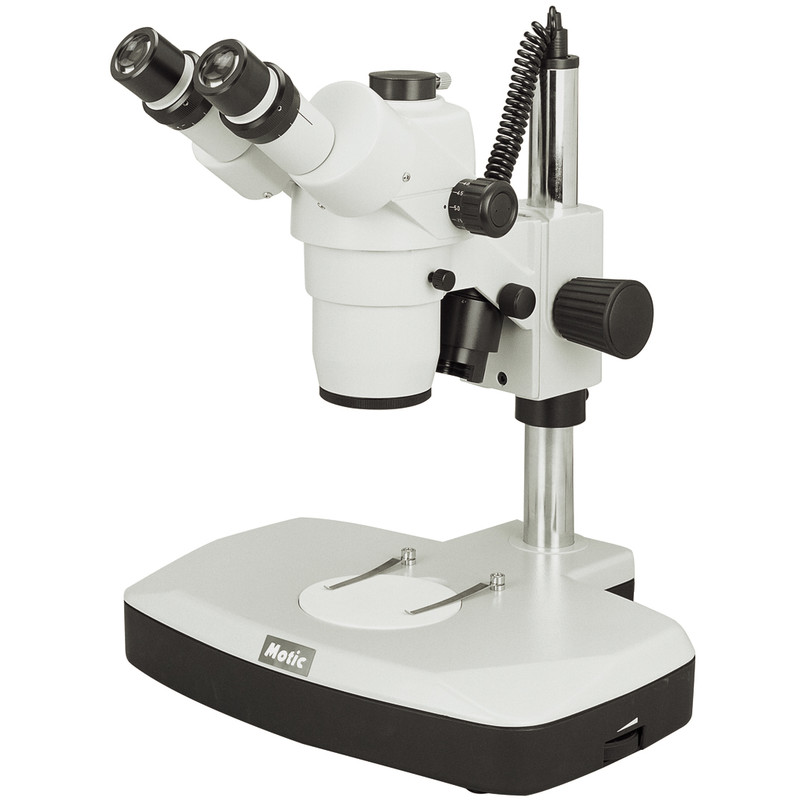

SMZ-168-TL

  • Greenough zoom optical system
  • Trinocular head, 35º inclined, 360º rotating
  • 100:0 (eyetubes), 0:100 (left eyetube/trinocular tube) optical split
  • Widefield eyepieces WF10X/23mm
  • 6.7:1 Zoom ratio, WD=113mm
  • Objective magnification range: 0.75X-5X
  • Pole type stand with large working area and head holder
  • Coarse focusing system with tension adjustment
  • 12V/10W incident and transmitted halogen illumination with intensity control
  • Main supply 100V-240V (CE)
  • Black/White and frosted glass stage plates, blue filter and dust cover
  • Note: Photo and C-mount camera adapters not included

Date tehnice

Optica


Putere de marire
50
Ocular
10
Iluminare
Lumina directa si incidenta
Tip lampa
Halogen
Sistem optic
Greenough

Mecanica


Tip constructiv
Trinocular
Focusare
Actionare rapida
Masa specimene
Masa specimene

Extras


Masa de centrare
-
Geanta de protectie anti praf
da
Ocular de camp larg
da

General


Culoare
gri/negru
Serii
SMZ-168
Greutate (g)
5200
Latime (mm)
277
Lungime (mm)
329
Inaltime (mm)
365

Domeniul de aplicare


Industrie
da

Aplicaţii


Biologie, zoologie & botanica
da
Dental
da
Medicina veterinara
da
Universitate
da
Patologie si histopatologie
da
Tehnologia semiconductorilor
da
Metalurgie
da
Inginerie mecanica
da
Tehnologia materialelor
da
Electronica
da
