Microscoape > Microscoape > Lupe stereo > Stereo zoom sets > Euromex > DZ > Euromex Microscop zoom stereo DZ.1805, cap FIX 8x-64x, LED
Nr. articol: 47011

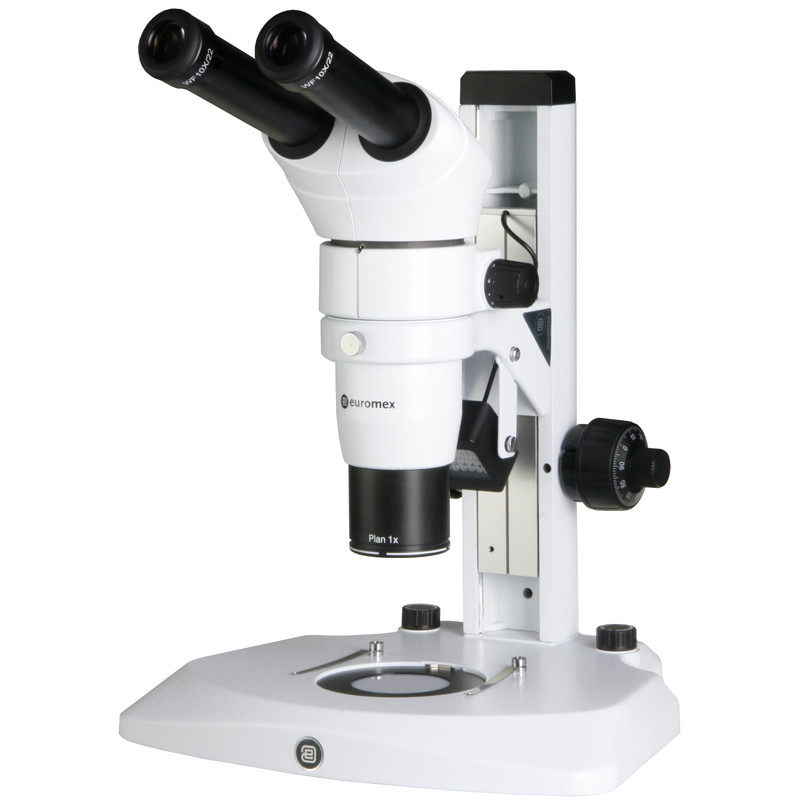

Microscop zoom stereo DZ.1805, cap FIX 8x-64x, LED

$ 3.600,00 incl. TVA, plus costuri de livrare
prea scump?
termen scurt
gata de livrare in 3-5 saptamani + timp de tranzit

Descriere produs

Din pacate, descrierea acestui produs nu a fost inca tradusa in limba romana, din acest motiv veti gasi in loc o descriere in limba engleza.

Euromex DZ series

The modern DZ stereomicroscopes are modular configured around a central zoom body. The first with a 1:6,3 zoom ratio, a second with a 1:8 zoom ratio and a third with a 1:10 zoom ratio. The DZ modular microsope - with his Extra Wide Field eyepieces, Plan Apochromatic 0.5x, 1x and 2x common objectives, the ergonomical stereo head with 5-35° inclined tubes or a fix stereohead with 45° inclined tubes, stand with incident and transmitted LED illuminations - belongs together with the Euromex D series, to the top stereomicroscopes of Euromex 6 standard configurations are avialable for magnifications from 8 to 80 times. One can configure other configurations for magnifications from 4x up to160 times around the central zoom bodies DZ.1000, DZ.0800 or DZ.0630

The DZ series is designed around a highly precise Infinity Parallel Zoom body equipped with a Plan Apochromatic corrected common main objective providing the necessary high contrasting images and resolving power for high-tech applications. One can choose between an 1:6.3, 1:8 or even a 1:10 zoom ratio zoom body. All three versions can be equipped with 3 different Plan Achromatic common main objectives with 0.5x, 1.0x and 2.0x magnifications. Together with standard Extended Wide Field EWF10x/22 corrected eyepieces, magnifications up to 160x are achievable. Optionally WF 15x/16 and WF 20x/12 eyepieces for magnifications up to 320x are available. Two stereo head versions are available, a fixed 20° bino head or an ergonomic head with adjustable inclination from 5° up to 35°.

Stereo microscope DZ.1805

  • Binocular stereo microscope with 1:8 zoom ratio
  • Total magnification from 8 to 65x
  • Binocular stereo head with 20° inclined tubes

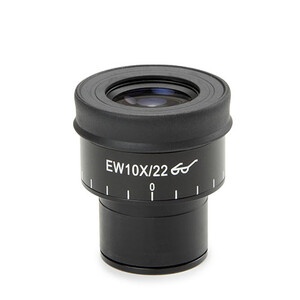

  • EWF 10x/22 eyepieces
  • Central 0.8 – 6.5x zoom body with click-stop
  • Plan apochromatic 1x objective
  • Fields or view 27.5 - 4.4 mm
  • Working distance is 78 mm
  • Flat ergonomic stand with incident and transmitted LED illumination

Date tehnice

Optica


Putere de marire
8-64
Factor de marire
1:8
Ocular
EWF 10x/22
Sistem optic
CMO
Iluminare
Lumina directa si incidenta

Capacitate


Tip lampa
LED
Reglaj intensitate luminoasa
da

Mecanica


Distanta de lucru (mm)
78
Postura vizualizare (°)
vizualizare inclinata 45°
Tip constructiv
Binocular

General


Serii
DZ

Domeniul de aplicare


Industrie
da
Medicină
da
Educatie
da
Biologie
da

Aplicaţii


Criminalistica
da
Biologie, zoologie & botanica
da
Mineralogie
da
Metalurgie
da
Inginerie mecanica
da
Tehnologia materialelor
da
Universitate
da
scoala
-
Electronica
da
Știința materialelor
da
Biologie marină
da
