Microscoape > Microscoape > Microscop vertical > Microscop cu fluorescenta > Euromex > Oxion > Euromex Microscop trinocular, OX.3075, Fluarex
Nr. articol: 44132

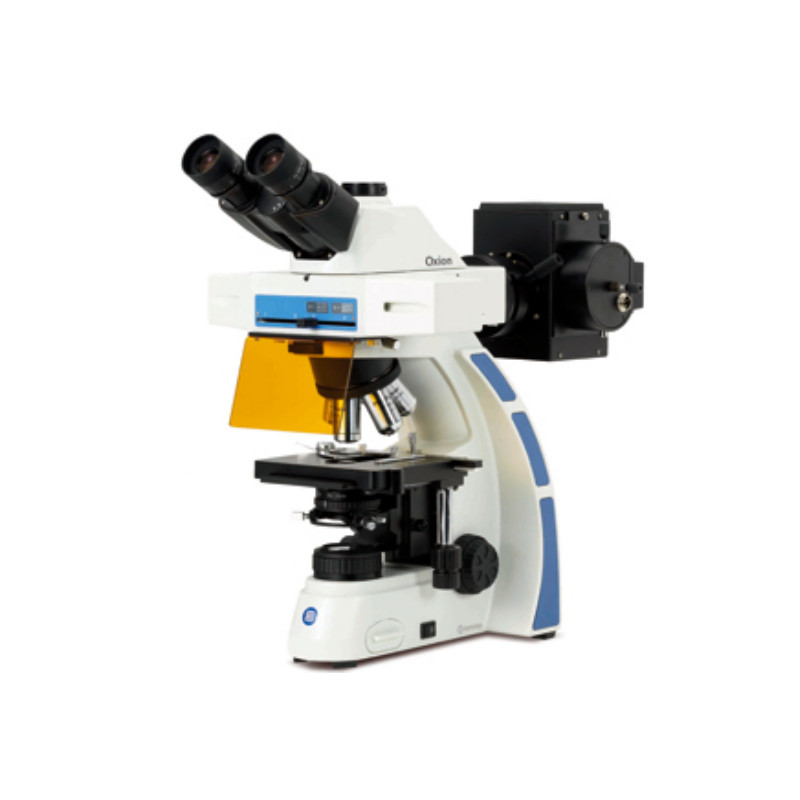

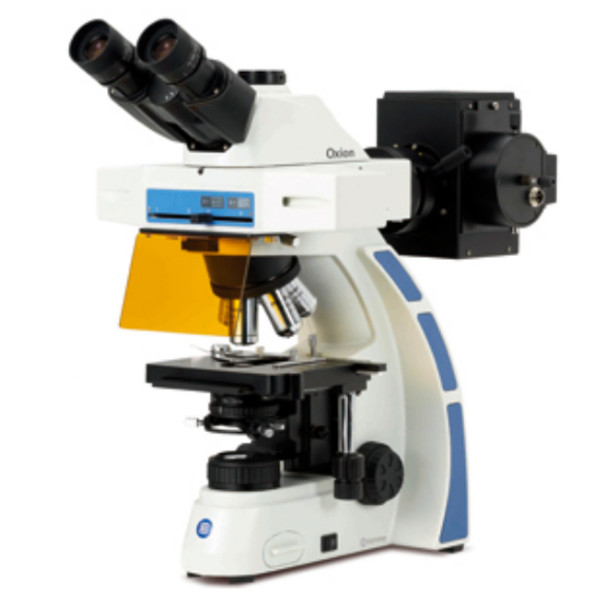

Microscop trinocular, OX.3075, Fluarex

$ 8.800,00 incl. TVA, plus costuri de livrare
prea scump?
termen prelungit
produsul nu mai este disponibil + timp de tranzit

Descriere produs

Din pacate, descrierea acestui produs nu a fost inca tradusa in limba romana, din acest motiv veti gasi in loc o descriere in limba engleza.

Euromex Oxion series

Thanks to the high resolving power, a 3 Watt transmitted LED illumination, a 100 Watt Mercury fluorescence epi-illumination, multiple phase contrast, dark field set and the optional Apochromatic objectives, these microscopes can be used for all kind of demanding applications as well in fundamental research

  • Wide Field eyepieces HWF 10x / 22
  • Semi Plan SMP 4x, 10x, S40x and S100x-oil, IOS, objectives for bright field contrast
  • Plan PL 4x, 10x, 20x, S40x, S60x and S100x-oil, IOS, objectives for bright field contrast
  • Plan Phase PLPH 10x, 20x, S40x and S100x-oil, IOS, objectivesfor phase contrast
  • Plan Semi-Apochromatic PL APO 4x, 10x, 20x, S40x and S100x-oil, IOS, objectives for bright field contrast
  • Plan Semi-Apochromatic PL APO FLUAREX 4x, 10x, 20x, S40x and S100x-oil, IOS, objectives for fluorescence
  • Binocular withor without photo port
  • Height adjustable Abbe condenser N.A. 1.25 with holder for phase sliders
  • Zernike phase and bright field disc condenser with 4 phase rings
  • Zernike phase and bright field disc condenser with 3 phase rings + dark field stop
  • Cardioid dark field Oil-immersion condenser with built-in 5 W LED illumination
  • Large stage with ball beared XY translation stage with optional heating elements and temperature controller
  • Adjustable 3 Watt LED illumination
  • 100 Watt mercury vapor lamp for fluorescence
  • Many fluorphore filter sets available

Models OX.3012 and OX.3015 are equiped with standard Semi Plan IOS objectives for bright field applications
Models OX.3020 to OX.3035 are equiped with standard Plan IOS objectives for bright field applications
Models OX.3040 to OX.3047 are equiped with Plan Phase IOS objectives for phase contrast
Models OX.3050 to OX.3065 are equiped with Plan Semi-Apochromatic IOS objectivesfor bright field applications
Models OX.3070 to OX.3085 are equiped witht Plan Semi-Apochromatic IOS objectives for fluorescence applications
Model OX.3064 is equipped with standard Plan IOS objectives and a cardioid oil-immersion condenser with built-in 5 W LED illumination for dark field applications and living blood analysis

Date tehnice

Optica


Factor de marire
40-400
Condensator
Abbe 1,25 N.A. focalizabil cu diafragma iris, reglabil in inaltime
Tip lampa
LED
Tip obiectiv
Plan Acromat
Ocular
10/22
Surse de curent
85-240 V
Iluminare
Lumina directa si incidenta
Putere de marire
40, 100, 400

Capacitate


Reglaj intensitate luminoasa
reglabil
Tip lampa
Sursa de lumina reflectata 100W cu vapori de mercur pentru fluorescenta
Fluorescenta
da
camp luminat
da

Mecanica


Distanta de lucru (mm)
45
Tip constructiv
Trinocular
Postura vizualizare (°)
Tub Siedentopf ajustabil 30° vertical. Pentru Adaptor foto 80/20. Distanta vizualizare 50-75 mm.
Focusare
Actionare fina si rapida
Masa specimene
Masa X-Y

Extras


Masa de centrare
-
Functionare cu baterii
-
Camera foto digitala integrata
-
Suport filtru
da
Obturator camp iluminat
da
Geanta de protectie anti praf
da

General


Culoare
alb/albastru
Greutate (g)
15000
Inaltime (mm)
397
Lungime (mm)
294
Serii
Oxion

Contrast


Fluorescenta
da

Aplicaţii


Fluorescenta
da
Mineralogie
da
