Microscoape > Microscoape > Microscop vertical > Microscoape cu contrast de faza > Kern > OBL > Kern Microscop OBL 145, bino, PH, WF10x/20, Inf, E-Plan, 40x-1000x, HAL 20W
Nr. articol: 66356

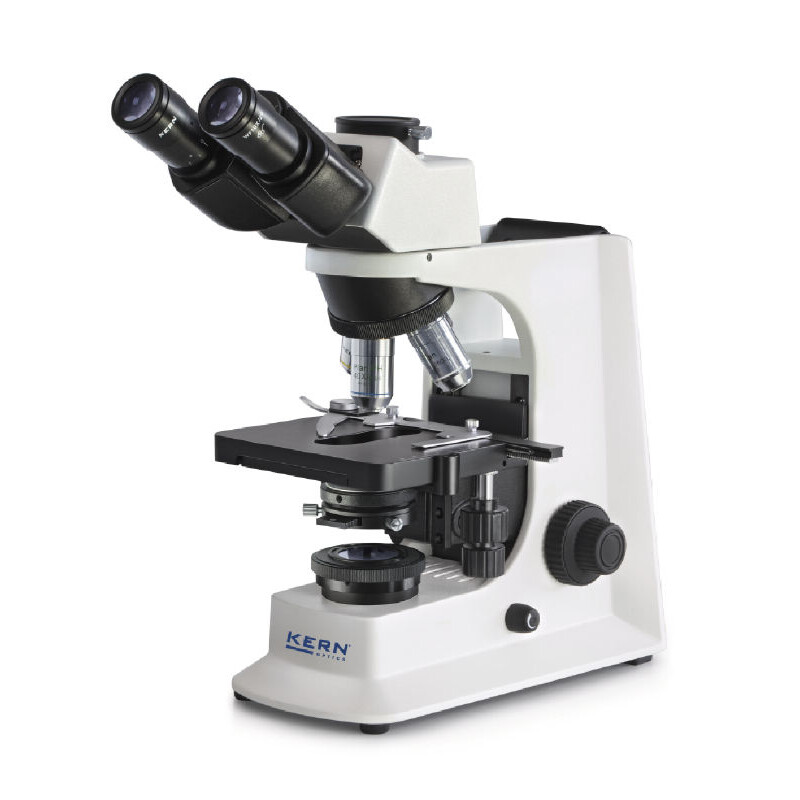

Microscop OBL 145, bino, PH, WF10x/20, Inf, E-Plan, 40x-1000x, HAL 20W

$ 1.800,00 incl. TVA, plus costuri de livrare
prea scump?
termen prelungit
produsul nu mai este disponibil + timp de tranzit

Descriere produs

Din pacate, descrierea acestui produs nu a fost inca tradusa in limba romana, din acest motiv veti gasi in loc o descriere in limba engleza.

  • We have developed this series specially for general applications with phase contrast method. In addition, the stable, modular construction system of the OBL series offers many more options
  • A strong and continously adjustable 20W halogen illumination unit (Philips) ensures the optimum lighting conditions

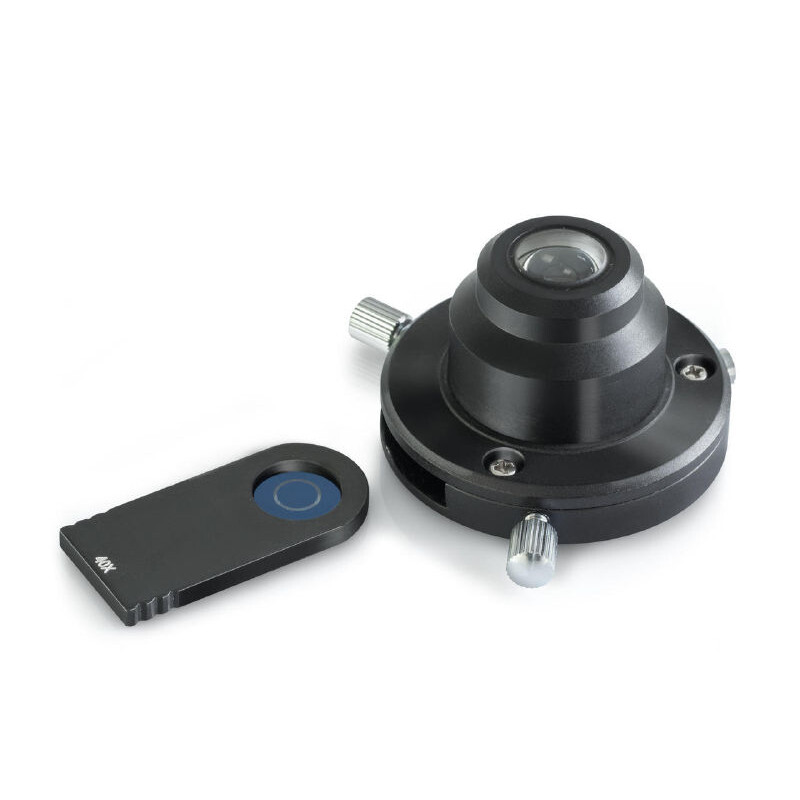

  • A special fixed, pre-centred phase contrast condenser with aperture diaphragm as well as field diaphragm which can be focused to a height give you a simplified Köhler illumination and thereby a powerful phase-contrast display of your sample
  • The large mechanical stage table and its specimen holder holds up to two samples at the same time and is quick and easy to focus using a coaxial coarse and fine focusing knob on both sides
  • A large selection of eyepieces, objectives and colour filters, a simple polarising unit as well as further phase contrast units are available to you as accessories
  • A protective dust cover, eye cups, as well as multi-lingual user instructions are included in the scope of the delivery
  • A C-mount adapter is required to connect a camera to the trinocular version

Scope of application

Haematology, urology, gynaecology, dermatology, pathology, microbiology and parasitology, immunology, oncology, entomology, vets, sewage treatment plants, water analysis, breweries

Applications/Samples

specially for extremely translucent, thin, low-contrast, challenging samples (e.g. living mammal cells, bacteria, tissue) with phase contrast

Technical data

  • Infinity optical system
  • 4-fold lens revolving unit
  • Siedentopf 30° inclined, 360° rotatable
  • Dioptre compensation one-sided
  • Overall dimensions W×D×H 395×200×380 mm

Date tehnice

Optica


Ocular
10x/20 (Camp larg)
Sistem optic
infinit
Tip obiectiv
Plan apocromat
Obiectiv 2
10x PH Plan
obiectiv 3
40x PH Plan
Obiectiv 4
100x/1.25 ulei (cu arc) W.D. 0.19 mm
Putere de marire
40-1000
Condensator
Abbe 1.25 N.A, focus reglabil, cu diafragma iris
Tip lampa
Halogen
Surse de curent
UE

Capacitate


Reglaj intensitate luminoasa
da
camp luminat
da
Contrast
Contrast faza

Mecanica


Tip constructiv
Binocular
Postura vizualizare (°)
30 (30° vedere inclinata, rotativ 360°)
Focusare
Actionare fina si rapida
Masa specimene
-

Extras


Suport filtru
da
Functionare cu baterii
-
Geanta de protectie anti praf
da

General


Greutate (g)
6688
Latime (mm)
395
Lungime (mm)
200
Inaltime (mm)
380
Serii
OBL

Potrivit pentru


Avansat
da

Contrast


Contrast faza
da

Domeniul de aplicare


Educatie
-
Medicină
da

Aplicaţii


scoala
da
