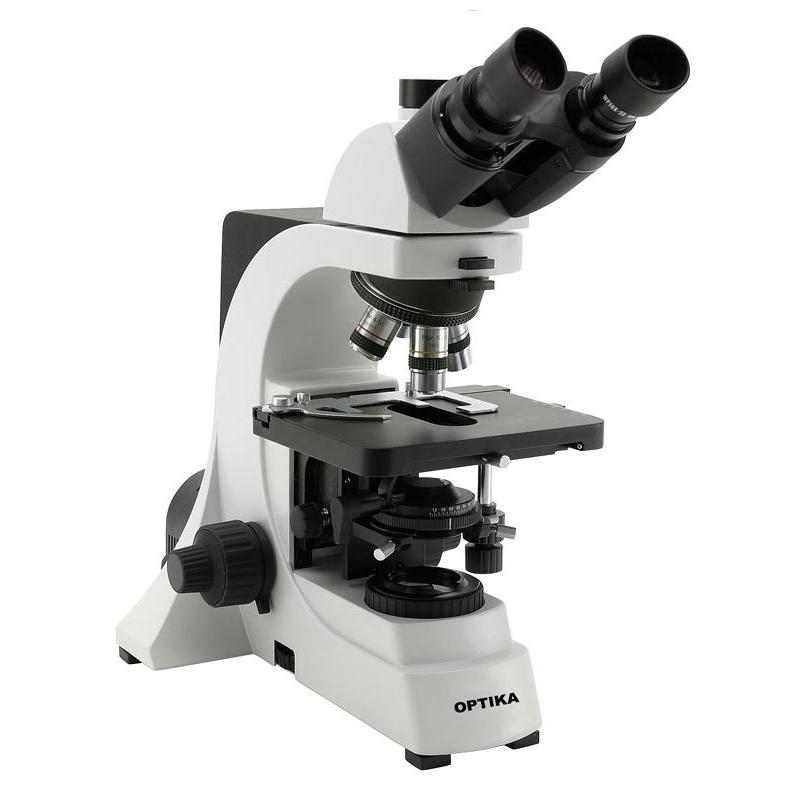

B-600
With the series B-600, Optika Microscopes set a new record in the quality-to-price ratio.
The extraordinary characteristics of a series of highly professional microscopes are now accessible for all laboratories, meeting the needs of those who are looking for a prime quality instrument, even they haven’t considerable budgets.
The series B-600 microscopes are instruments specifically designed to be used in a laboratory, where high optical and mechanical quality as well as sturdiness to guarantee longer life is required.
Optical systems & Objectives
The B-600 series is equipped with two optic systems: INFINIFIX and IOS.
In both cases the diameter is 22mm. All microscopes have Plan Achromatic objectives. With INFINIFIX optical system, the two worlds of infinity-corrected and 160 mm optical system find the way to meet each other.
Every microscope is equipped with a different objective
Heads
They are available in binocular and in trinocular version suitable for photography/ video applications. Both heads are equipped with interpupillary distance control (51 - 78 mm) and with dioptric compensation that takes place on the left eyepiece holder tube.
EWF10x/22 eyepieces also suitable for people wearing spectacles. All heads are 360° rotatating and 30° inclined. Additionally, a new 30°-60° ergonomical head is available as an accessory.
All heads are 360°rotating and 30° inclined.
Condenser
Included in the package is a swing-out type condenser with double numerical aperture of 0,22/1,22 selectable by means of a dedicated knob. It can be centred through a double-control system and adjusted in height through a rack-and-pinion mechanism by means of control knobs located on both sides of the microscope stand.
The condenser is also fitted with an iris diaphragm whose aperture can be adjusted through a ring nut with graduated reference scale.
Specimen stage
This large-sized (175x145mm) stage is fitted with a graduated translation mechanism (double 0.1mm vernier) operated by a rack-and-pinion system with coaxial controls mounted in a comfortable position beneath the specimen stage. The object slide clamp accepts up to two specimens at the same time. The standard rectangular stage may be replaced by a rotating stage for polarized light (optional feature). XY range: 76x51mm.
Illuminator
Equipped with an external 12V/50W illuminator with halogen bulb and fan-cooled metal case. The bulb is centrable and mounted on a concave mirror in order to recover the rear light beam generated by the filament.
Full Koehler system with field diaphgram.
Microscope stand
The modern stand design, with accessible and ergonomic controls, complements and enhances the instrument’s usability. Coaxial coarse and fine focusing system, with focusing stop mechanism
All in all: The B-600series - high class microscopes for laboratories!
