Microscoape > Microscoape > Microscop vertical > Microscoape cu câmp luminat > Kern > OBS > Kern Microscop Mono Achromat 4/10/40, WF10x18, 0,5W LED, OBS 111
Nr. articol: 66379

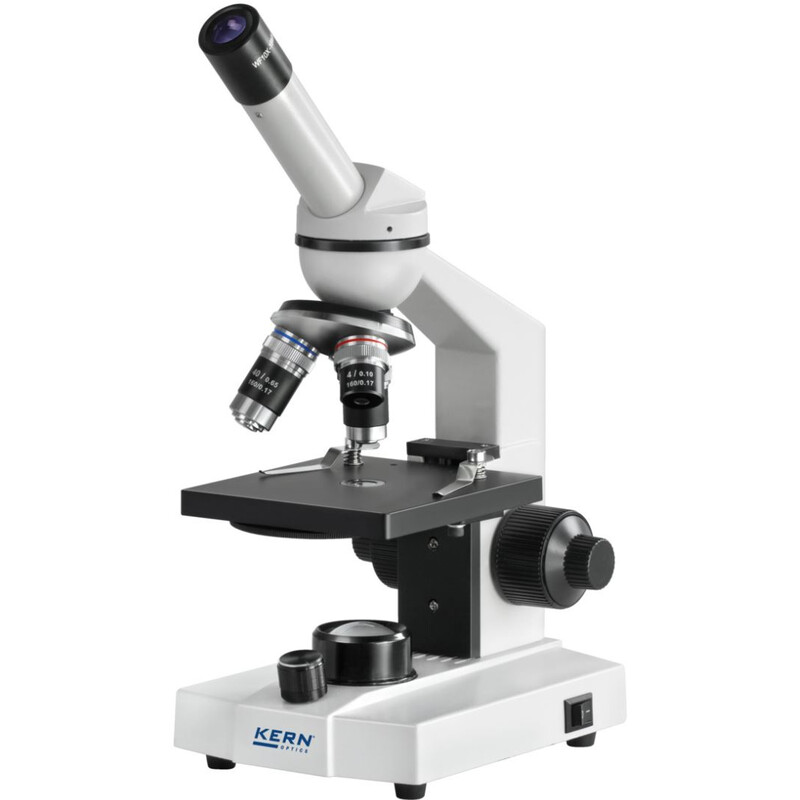

Microscop Mono Achromat 4/10/40, WF10x18, 0,5W LED, OBS 111

$ 251,00 incl. TVA, plus costuri de livrare
prea scump?
termen scurt
gata de livrare in 1-2 saptamani + timp de tranzit

Descriere produs

Din pacate, descrierea acestui produs nu a fost inca tradusa in limba romana, din acest motiv veti gasi in loc o descriere in limba engleza.

  • The KERN OBS-1 range is a solid and simple school microscope range, which is easy to use due to its intuitive control elements
  • The infinitely dimmable 0.5W LED guarantees optimum illumination of the samples and also ensures long service life. Mobile use is also no problem through the use of rechargeable batteries
  • The simple 0.65 condenser lens with rotating aperture diaphragm disc on the OBS 101 ensures the very best concentration of light and illumination of the sample. The OBS 104 and OBS 106 models have a 1.25 Abbe condenser which is height-adjustable and can therefore be focussed and has an aperture diaphragm, which ensures the very best concentration of light
  • To focus the object, all models have a coarse and fine focusing knob on both sides. The mechanical angle table enables you to work with the samples and move them rapidly (only for KERN OBS 106)
  • A large selection of different eyepieces and objectives is also available
  • Also available in a set of 10

Scope of application

Primary school, secondary school, training, hobby use

Applications/Samples

Translucent, thin, high-contrast, less complex samples (e.g. plant tissue, coloured cells/parasites)

Technical data

  • Finite optical system (DIN)
  • 3-fold lens revolving unit: Model KERN OBS 101
  • 4-fold lens revolving unit: Model KERN OBS 104, OBS 106
  • Tube 45° (OBS 101) or 30° (OBS 104, OBS 106) eyepiece tube, angled/360° revolving
  • Dioptre compensation (both sides) (for binocular models)
  • Overall dimensions W×D×H 130×300×310 mm
  • Net weight approx. 3,138 kg

Date tehnice

Optica


Ocular
10x/18 (Camp larg)
Sistem optic
DIN (160mm)
Tip obiectiv
Acromat

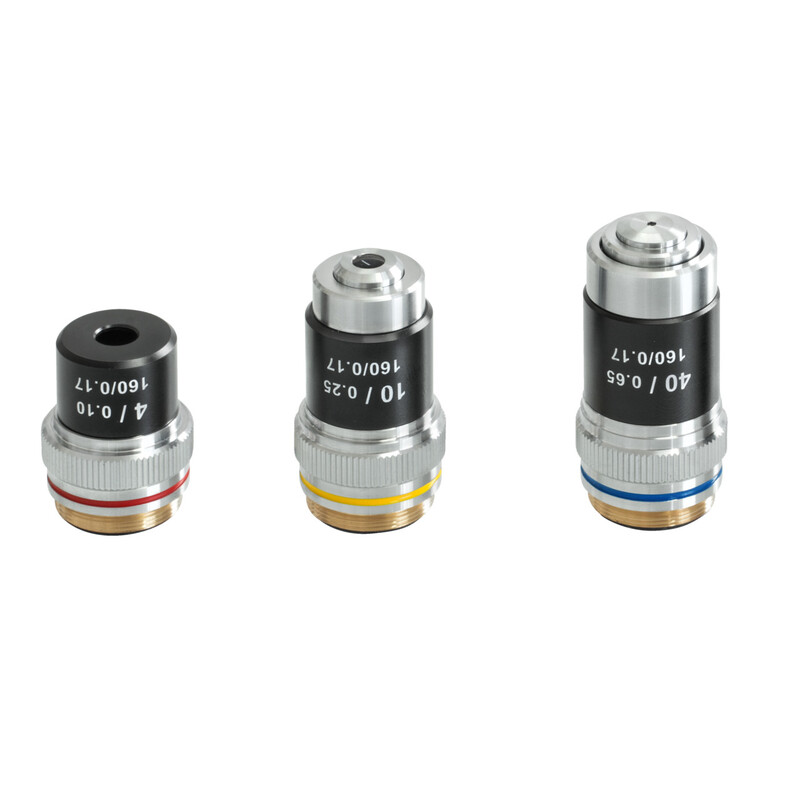

Obiectiv 1
4×/0.10 W.D. 18.0 mm
Obiectiv 2
10×/0.25 W.D. 7.0 mm
obiectiv 3
40×/0.65 (spring-loaded) W.D. 0.53 mm
Putere de marire
40-400 (40, 100, 400)
Tip lampa
LED (0.5W)
Surse de curent
UE

Capacitate


Reglaj intensitate luminoasa
da
camp luminat
da

Mecanica


Tip constructiv
Monocular
Postura vizualizare (°)
45
Focusare
Actionare fina si rapida
Masa specimene
-

Extras


Functionare cu baterii
-
Geanta de protectie anti praf
da
Suport filtru
da

General


Greutate (g)
3000
Latime (mm)
130
Lungime (mm)
300
Inaltime (mm)
310
Serii
OBS

Potrivit pentru


Incepatori
da

Domeniul de aplicare


Educatie
da

Aplicaţii


scoala
da
