Microscoape > Microscoape > Microscop vertical > Microscoape cu câmp luminat > Kern > OBF > Kern Microscop Bino Plan 4/10/40/100, WF10x18, 3W LED, OBF 123
Nr. articol: 66333

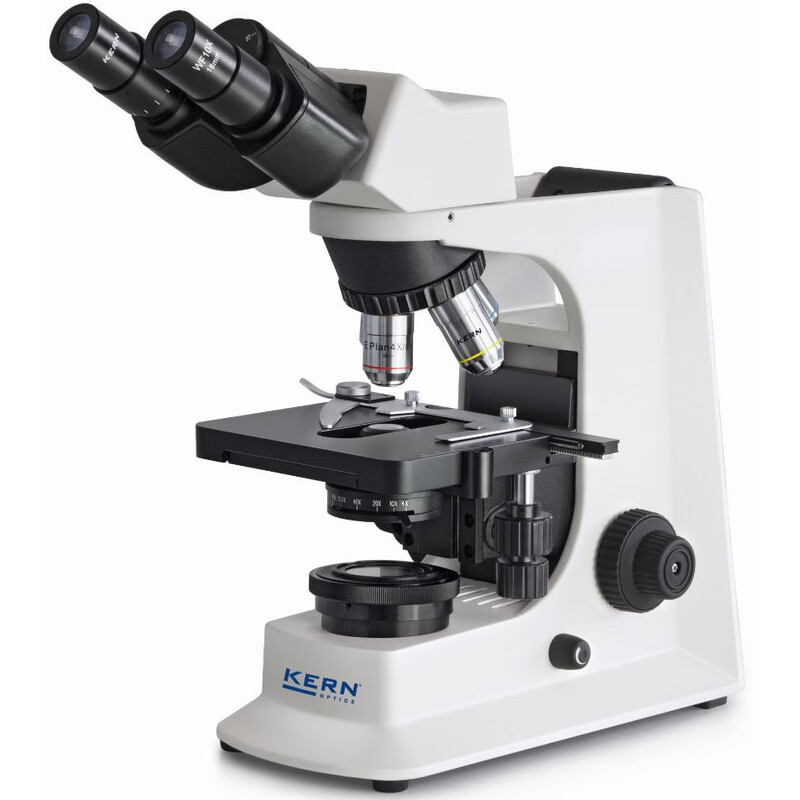

Microscop Bino Plan 4/10/40/100, WF10x18, 3W LED, OBF 123

$ 940,00 incl. TVA, plus costuri de livrare
prea scump?
termen prelungit
produsul nu mai este disponibil + timp de tranzit

Descriere produs

Din pacate, descrierea acestui produs nu a fost inca tradusa in limba romana, din acest motiv veti gasi in loc o descriere in limba engleza.

  • The KERN OBF-1 models are excellent, stable laboratory microscopes for all common routine applications. A central feature of this adaptable, robust microscope range is the stable mechanism which can be adjusted precisely
  • Depending on the application, there is a choice of models with strong, continuously dimmable 3 W LED or 20 W halogen illumination (Philips)
  • The fixed, pre-centred and focusable 1.25 ABBE condenser with aperture diaphragm and field diaphragm gives you a simplified Koehler illumination, without having to move the centre
  • The large mechanical stage table and its specimen holder holds up to two samples at the same time and is quick and easy to focus using a coaxial coarse and fine focusing knob on both sides
  • A large selection of eyepieces, objectives and colour filters as well as a darkfield condenser and a simple polarising unit are available to you as accessories
  • A protective dust cover, eye cups, as well as multi-lingual user instructions are included in the scope of the delivery
  • A C-mount adapter is required to connect a camera to the trinocular version

Scope of application

Haematology, urology, gynaecology, dermatology, pathology, microbiology and parasitology, immunology, oncology, entomology, vets, water analysis, breweries

Applications/Samples

Translucent, thin, low-contrast, challenging samples (e.g. living mammal cells, bacteria, tissue)

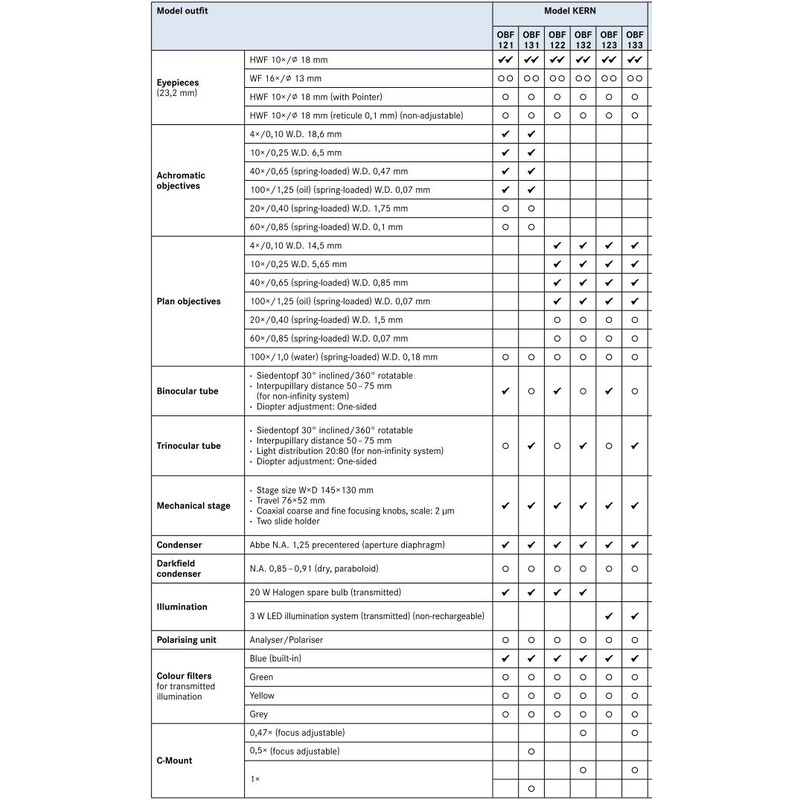

  • Technical data
  • Finite optical system (DIN)
  • 4-fold lens revolving unit
  • Siedentopf 30° inclined, 360° rotatable
  • Dioptre compensation one-sided
  • Overall dimensions W×D×H 395×200×380 mm
  • Net weight approx. 6,688 kg

Date tehnice

Optica


Ocular
10x/18 (Camp larg)
Sistem optic
DIN (160mm)
Tip obiectiv
Plan Acromat
Obiectiv 1
4×/0.10 W.D. 14.5 mm
Obiectiv 2
10×/0.25 W.D. 5.65 mm
obiectiv 3
40×/0.65 (cu arc) W.D. 0.85 mm
Obiectiv 4
100x/1.25 oil (spring-loaded) W.D. 0.07 mm
Putere de marire
40-1000
Condensator
Abbe 1.25 N.A, focus reglabil, cu diafragma iris
Tip lampa
LED (3W)
Surse de curent
UE

Capacitate


Reglaj intensitate luminoasa
da
camp luminat
da

Mecanica


Tip constructiv
Binocular
Postura vizualizare (°)
30 (30° vedere inclinata, rotativ 360°)
Focusare
Actionare fina si rapida
Masa specimene
-

Extras


Suport filtru
da
Functionare cu baterii
-
Geanta de protectie anti praf
da

General


Greutate (g)
6688
Latime (mm)
395
Lungime (mm)
200
Inaltime (mm)
380
Serii
OBF

Potrivit pentru


Avansat
da

Domeniul de aplicare


Educatie
-
Medicină
da

Aplicaţii


scoala
da
