Microscoape > Microscoape > Microscop vertical > Microscoape cu câmp luminat > Kern > OBE > Kern Microscop Bino Achromat 4/10/20/40, WF10x18, 3W LED, OBE 108
Nr. articol: 66315

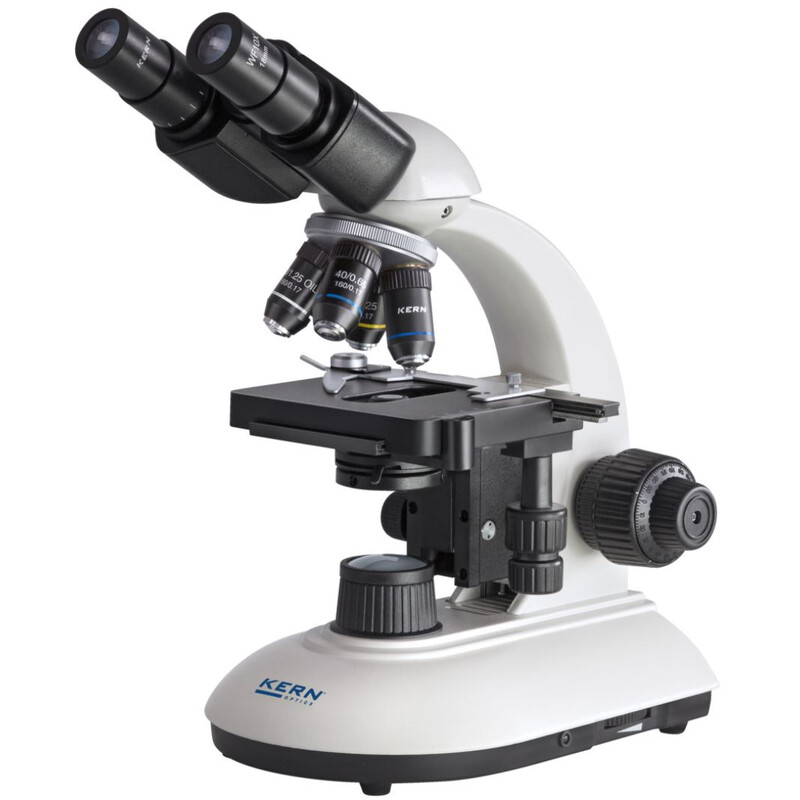

Microscop Bino Achromat 4/10/20/40, WF10x18, 3W LED, OBE 108

$ 710,00 incl. TVA, plus costuri de livrare
prea scump?
termen prelungit
produsul nu mai este disponibil + timp de tranzit

Descriere produs

Din pacate, descrierea acestui produs nu a fost inca tradusa in limba romana, din acest motiv veti gasi in loc o descriere in limba engleza.

  • The KERN OBE-1 series is a range of high-quality, fully-equipped compound microscopes, which can't be beaten in terms of ease of use and ergonomic design
  • The strong and continuously dimmable 3W LED guarantees optimum illumination of the samples and also ensures long service life. Mobile use of several models is also no problem through the use of rechargeable batteries
  • The height-adjustable and thereby focusable 1.25 ABBE condenser with aperture diaphragm is a further quality feature of the OBE-1 series and ensures the very best concentration of light
  • Height adjustment of the fully-equipped mechnical stage is carried out using a coarse and fine focusing knob on both sides. The ergonomically designed coaxial drive enables you to work with the samples and move them rapidly
  • A large selection of different eyepieces, lenses, a simple polarisation unit and a dark field kit is also available
  • A protective dust cover, eye cups, as well as multi-lingual user instructions are included in the scope of the delivery
  • A C-mount adapter is required to connect a camera to the trinocular version
  • Also available in a set of 10

Scope of application

Training, haematology, sediment investigation, doctor's surgeries

Applications/Samples

Translucent, thin, high-contrast, less complex samples (e.g. plant tissue, coloured cells/parasites)

Technical data

  • Finite optical system (DIN)
  • 4-fold lens revolving unit
  • Siedentopf 30° inclined, 360° rotatable
  • Dioptre compensation one-sided (for binocular and trinocular models)
  • Overall dimensions W×D×H 320×180×365 mm
  • Net weight approx. 4,988 kg

Date tehnice

Optica


Ocular
10x/18 (Camp larg)
Sistem optic
DIN (160mm)

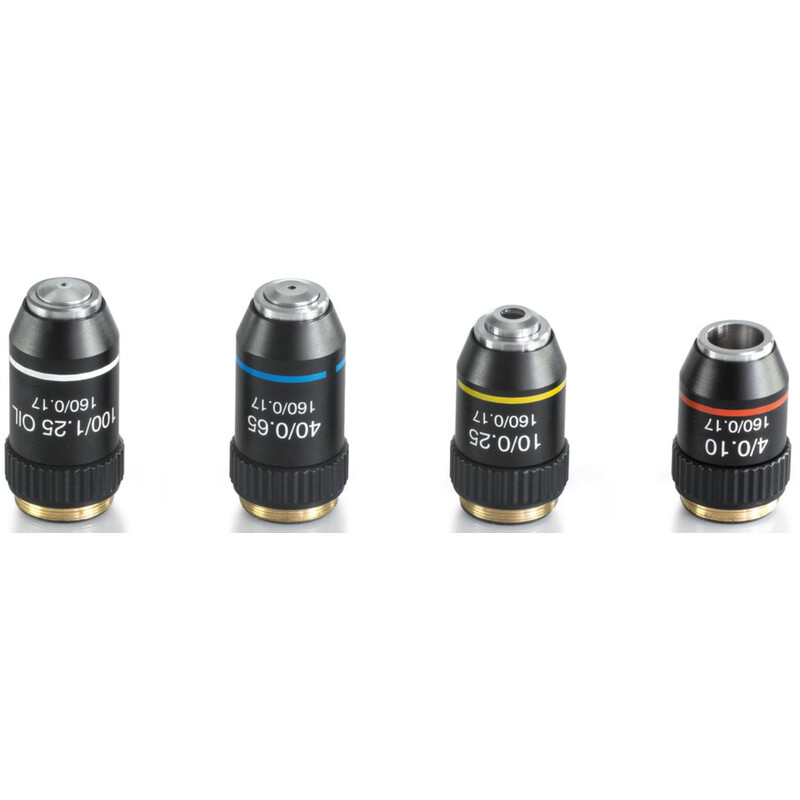

Tip obiectiv
Acromat
Obiectiv 2
10×/0.25 W.D. 6.5 mm
obiectiv 3
20×/0.40 (spring-loaded) W.D. 1.75 mm
Obiectiv 4
40×/0.65 (spring-loaded) W.D. 0.47 mm
Putere de marire
40-400 (40, 100, 200, 400)
Condensator
Abbe 1.25 N.A, focus reglabil, cu diafragma iris
Tip lampa
LED (3W)
Surse de curent
UE

Capacitate


Reglaj intensitate luminoasa
da
camp luminat
da

Mecanica


Tip constructiv
Binocular
Postura vizualizare (°)
30 (30° vedere inclinata, rotativ 360°)
Focusare
Actionare fina si rapida
Masa specimene
-

Extras


Functionare cu baterii
-
Geanta de protectie anti praf
da
Suport filtru
da

General


Greutate (g)
5500
Latime (mm)
180
Lungime (mm)
320
Inaltime (mm)
365
Serii
OBE

Potrivit pentru


Incepatori
da
Avansat
da

Domeniul de aplicare


Educatie
da
Medicină
da

Aplicaţii


scoala
da
Școala secundară
da
