Microscoape > Microscoape > Microscop vertical > Microscoape cu câmp luminat > Hund > Medicus > Hund Microscop Medicus plus, plan, trino, infinity, 40x - 1000x
Nr. articol: 53119

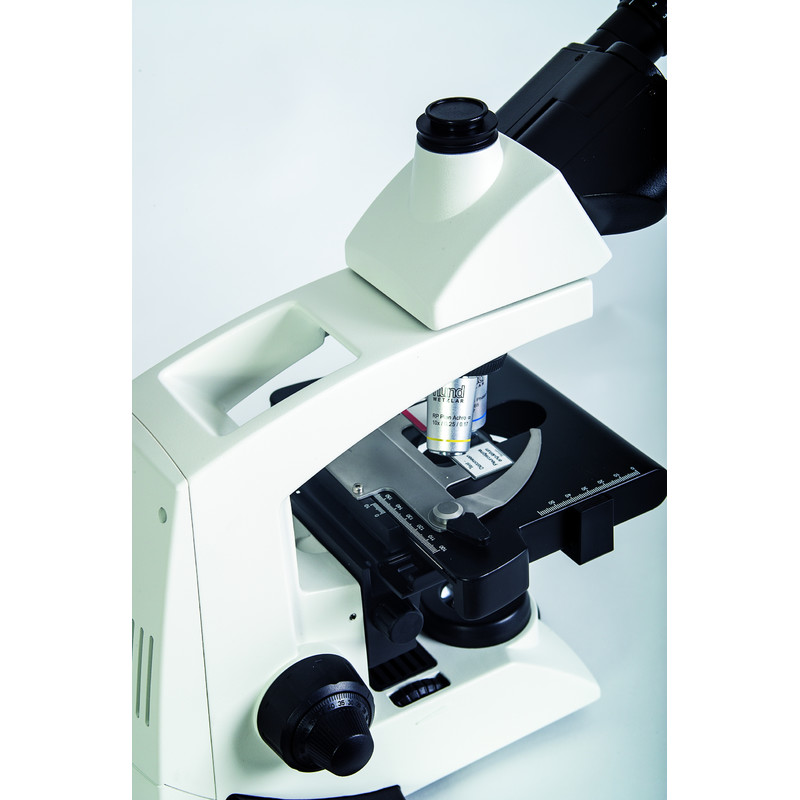

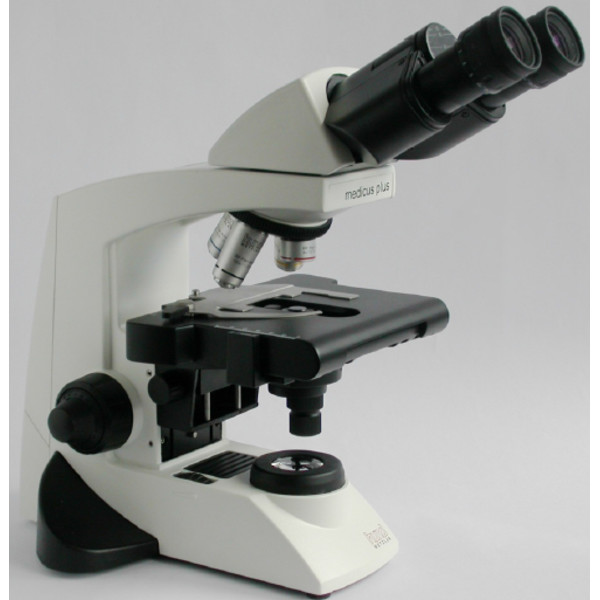

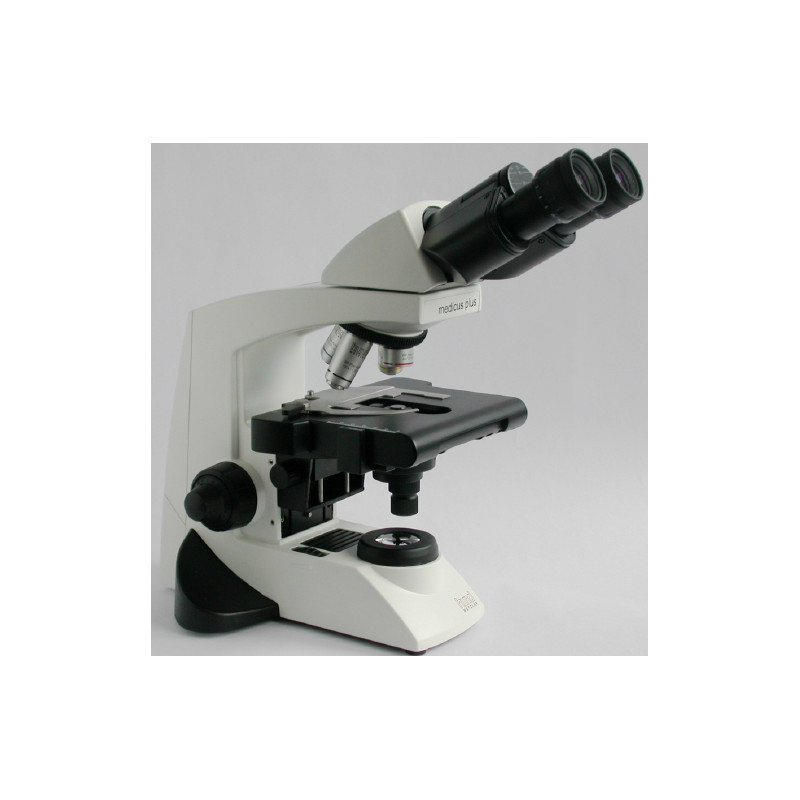

Microscop Medicus plus, plan, trino, infinity, 40x - 1000x

$ 2.040,00 incl. TVA, plus costuri de livrare
prea scump?
termen scurt
gata de livrare in 1-2 saptamani + timp de tranzit

Descriere produs

Mai multe despre această serie Medicus...

Din pacate, descrierea acestui produs nu a fost inca tradusa in limba romana, din acest motiv veti gasi in loc o descriere in limba engleza.

Hund microscopes have a high quality standard, a good functionality. They are ergonomic and versatile system for medical and biologycal applications .

Laboratory microscopes Medicus

  • Solid cast tripod in classic gooseneck shape
  • Coaxially arranged coarse and fine focusing drive.
    - Height adjustment of the coarse adjustment knob total: 12.7 mm.
    - Height adjustment of the fine adjustment knob per division: 3 microns
  • Binocular Siedentopf -Tubus, 360° rotable .
    - Viewing angle 30 °
    - Tube factor 1x
    - Eye distance of 55 mm - 75 mm adjustable
    - Diopter compensation at each eyepiece.
  • 4-position nosepiece with ball bearing guide
  • Plan-achromatic lenses, infinity-corrected
  • Cross table 200 mm x 160 mm with ergonomically located coaxial knobs.
    - Sliding range 78 mm x 54 mm
    - Specimen holder with spring lever
  • Height adjustable Abbe condenser NA 1.25
  • Integrated 6 V / 20 W halogen lights, infinitely variable

Medicus plus trinocular

with plan-achromatic infinity objectives

Spezification:

  • Stand equipment with 20 W halogen lighting
  • Binocular Siedentopf tube (30° TF 1x)
  • Eyepiece WF 10x / 20 with eyeshades 2 pcs.
  • Lens plan 4x / 0.10
  • Lens plan 10x / 0.25
  • Lens plan 40x / 0.65 with spring slide protection
  • Lens plan 100x / 1.25 oil with sprung slide protection
  • Height adjustable Abbe condenser NA 1.25

Delivery Scope:

  • Power cord
  • wrench set
  • dust cover
  • spare bulb
  • spare fuse
  • operating instructions

Date tehnice

Optica


Putere de marire
40-1000 (50, 100, 500, 1000)
Ocular
10 x /20
Tip obiectiv
Plan Acromat (corectat la infinit)
Obiectiv 1
4x/0,25 plan
Obiectiv 2
10x/0,25 plan
obiectiv 3
40x/0,65, plan S
Obiectiv 4
100/1,25, plan S, Oil
Condensator
Condensor Abbe NA 1.25 cu diafragma Irisblende si suport filtre, reglabil in inaltime
Iluminare
Lumina transmitita
Tip lampa
Halogen
corectat la infinit
da
Sistem optic
infinit

Capacitate


Reglaj intensitate luminoasa
da
camp luminat
da

Mecanica


Postura vizualizare (°)
Tub Siedentopf; unghi de vizualizare 30°
Masa specimene
Masa X-Y
Tip constructiv
Trinocular
Focusare
Actionare fina si rapida
Revolver
4

Extras


Geanta de protectie anti praf
da

General


Serii
Medicus

Domeniul de aplicare


Medicină
da

Aplicaţii


Patologie si histopatologie
da
In vitro diagnostice
da
Medicina veterinara
da
