Microscoape > Microscoape > Microscop vertical > Microscoape cu câmp luminat > Euromex > iScope > Euromex Microscop iScope IS.1153-PLi, trino
Nr. articol: 51455

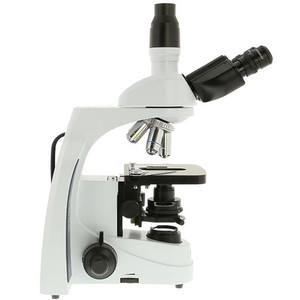

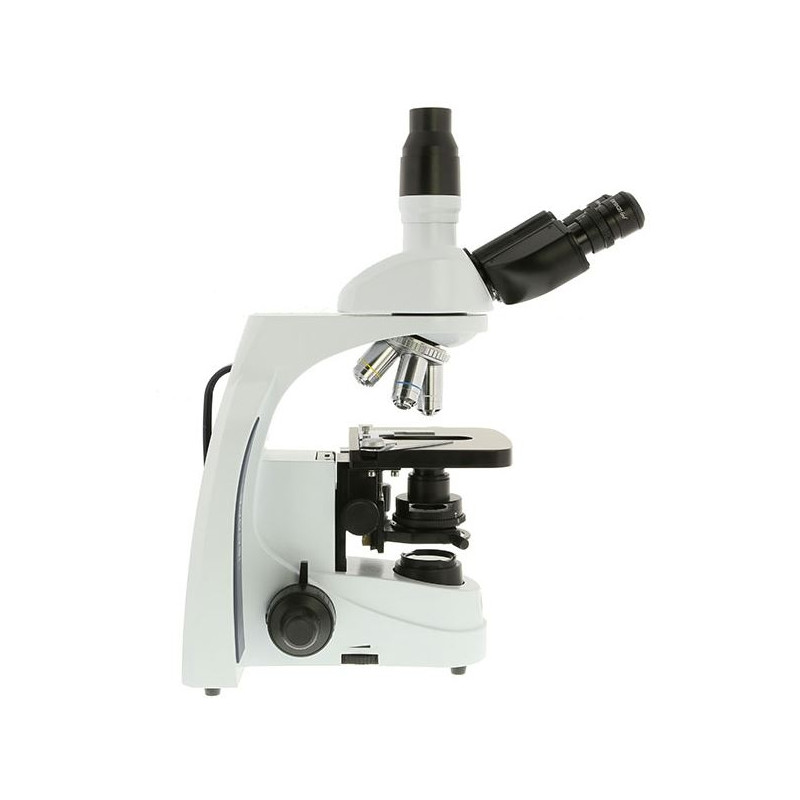

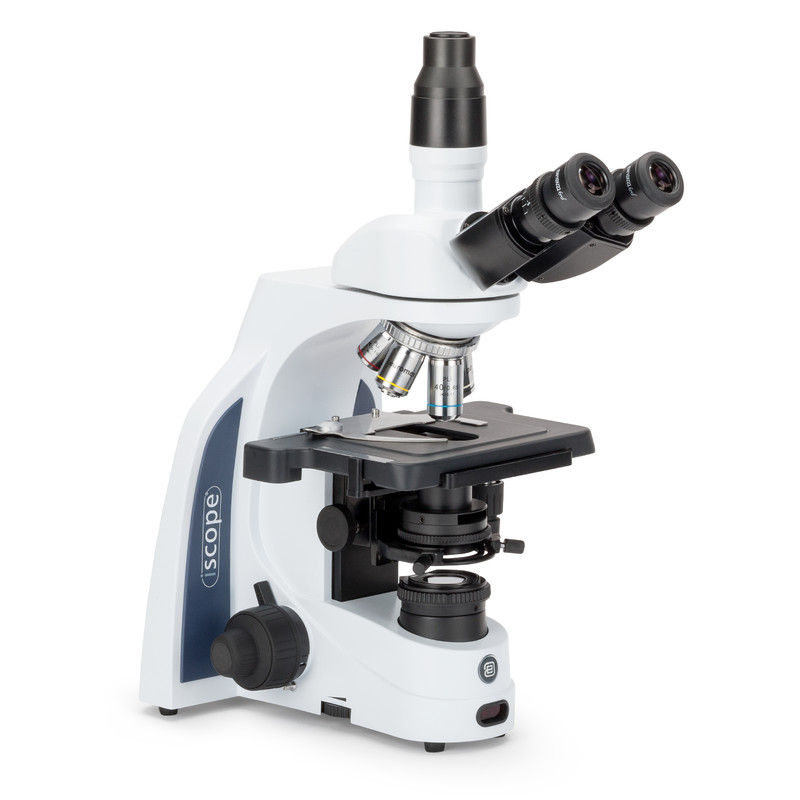

Microscop iScope IS.1153-PLi, trino

$ 1.680,00 incl. TVA, plus costuri de livrare
prea scump?
termen scurt
gata de livrare in 3-5 saptamani + timp de tranzit

Descriere produs

Mai multe despre această serie iScope...

Din pacate, descrierea acestui produs nu a fost inca tradusa in limba romana, din acest motiv veti gasi in loc o descriere in limba engleza.

Euromex introduces a complete new series of iScope® microscopes. These state-of-the-art instruments have been specifically designed for Life Sciences and Biomedical Sciences.

The iScope® is available in different configurations. Thanks to the high resolving power of the objectives and the 3W NeoLed transmitted LED illumination, these microscopes can be used for all kind of demanding applications as well for fundamental research. Please find below a summary of the specifications

  • EWF10x/22 mm or EWF10x/20mm eyepieces
  • Binocular and trinocular heads
  • Quintuple nosepiece
  • E-Plan EPL 4x/0.10, 10x/0.25, 20x/0.40, S40x/0.65, S100x/1.25 oil-immersion DIN objectives
  • E-Plan EPL IOS 4x/0.10, 10x/0.25, 20x/0.40, S40x/0.65, S100x/1.25 oil-immersion IOS objectives
  • Plan PL IOS 4x/0.10, 10x/0.25, 20x/0.40, S40x/0.65, S100x/1.25 oil-immersion IOS objectives
  • 140 mm x 160 mm stage equipped with integrated 79 x 52 mm mechanical stage
  • 216 mm x 150 mm rackless stage equipped with integrated 79 x 52 mm mechanical stage
  • Height adjustable Abbe condenser N.A. 1.25
  • Coarse and fine height adjustment
  • Diascopic intensity adjustable 3W NeoLED™ illumination with internal 85V-240V power supply
  • iCare sensor for energy saving
  • CSS - Cable Storage System

  • Models IS.1152-EPL and IS.1153-EPL are supplied with E-Plan objectives for bright field applications
  • Models IS.1152-EPLi and IS.1153-EPLi are supplied with E-Plan IOS objectives for bright field applications
  • Models IS.1152-PLi and IS.1153-PLi are supplied with Plan IOS objectives for bright field applications

The iScope is also available in a multi-head configuration

iScope for brightfield IS.1153-PLi

  • Eyepieces EWF10x/22 mm Ø 30 mm
  • Head Trinocular version with Siedentopf 30° inclined tubes. Interpupillary distance 47-76 mm with diopter adjustment on left eyepiece
  • Nosepiece Revolving quintuple reversed nosepiece on ball bearings
  • Objectives E-Plan EPL 4x/0.10, 10x/0.25, S40x/0.65, S100x/1.25 oil-immersion IOS objectives. All optical parts are anti-fungus treated
  • Stage 216 mm x 150 mm stage equipped with integrated 79 x 52 mm mechanical stage
  • Condenser In height adjustable Abbe N.A. 1.25 condenser with opening for optional sliders
  • Focusing adjustment Coaxial coarse and fine adjustments, 2 µm precision, 20 mm travel range. Rack-stop for protection of slides and objectives. Friction adjustment
  • Illumination and power supply Diascopic intensity adjustable 3W NeoLED™ illumination with internal 100V-240V power supply (CE)
  • iCare Sensor The unique iCare Sensor is developed to avoid unnecessary loss of energy. The illumination of the microscope automatically switches off when the microscopist steps away from his position
  • CSS - Cable Storage System The Cable Storage System of the iScope allows the user to practically insert the power cable into the backside of the instrument, which enables easy storage
  • Packaging Delivered with power cord, 500 mA 250V spare fuse and dust cover

Date tehnice

Optica


Putere de marire
40 - 1000
Iluminare
Lumina transmitita
Tip lampa
LED
corectat la infinit
da
Ocular
EWF 10x / 22 mm (Ø 30mm)
Numarul de obiective
4
Corectia culorii
acromat
curbura de camp
Plan
Obiectiv 1
4x / 0.10 (Plan PLi)
Obiectiv 2
10x / 0.25 (Plan PLi)
obiectiv 3
S40x / 0.65 (Plan PLi)
Obiectiv 4
S100x / 1.25 (Plan PLi)
Suspensie
da
Obiectiv cu imersie
da
Condensator
Abbe 1.25 N.A, focus reglabil, cu diafragma iris
Sistem optic
infinit

Capacitate


camp luminat
da

Mecanica


Tip constructiv
Trinocular
Focusare
Actionare fina si rapida (200 x 1µm)
Revolver
5
Masa specimene
Masa X-Y

General


Serii
iScope
Greutate (g)
9000
Latime (mm)
210
Lungime (mm)
255
Inaltime (mm)
407

Domeniul de aplicare


Medicină
da
