Monturi & accesorii > Monturi > Ecuatoriala cu GoTo > Vixen > Vixen Montura SPHINX (versiune trepied SXW)
Nr. articol: 1483

Montura SPHINX (versiune trepied SXW)

$ 1.730,00 incl. TVA, plus costuri de livrare
prea scump?
termen prelungit
produsul nu mai este disponibil + timp de tranzit

Descriere produs

Din pacate, descrierea acestui produs nu a fost inca tradusa in limba romana, din acest motiv veti gasi in loc o descriere in limba engleza.

SPHINX-MOUNT:

The SPHINX equatorial mount and STARBOOK controller have been intelligently engineered for high-speed automatic location of celestial objects. It is now possible to explore the beauty of the night sky with greater ease and stability. The SPHINX comes standard with built in motors and the world's first star chart go-to controller, STARBOOK, with a large full color LCD display. The Sphinx’s design is exceptional and the exterior styling is equally attractive.

The mount comes with a table top stand.

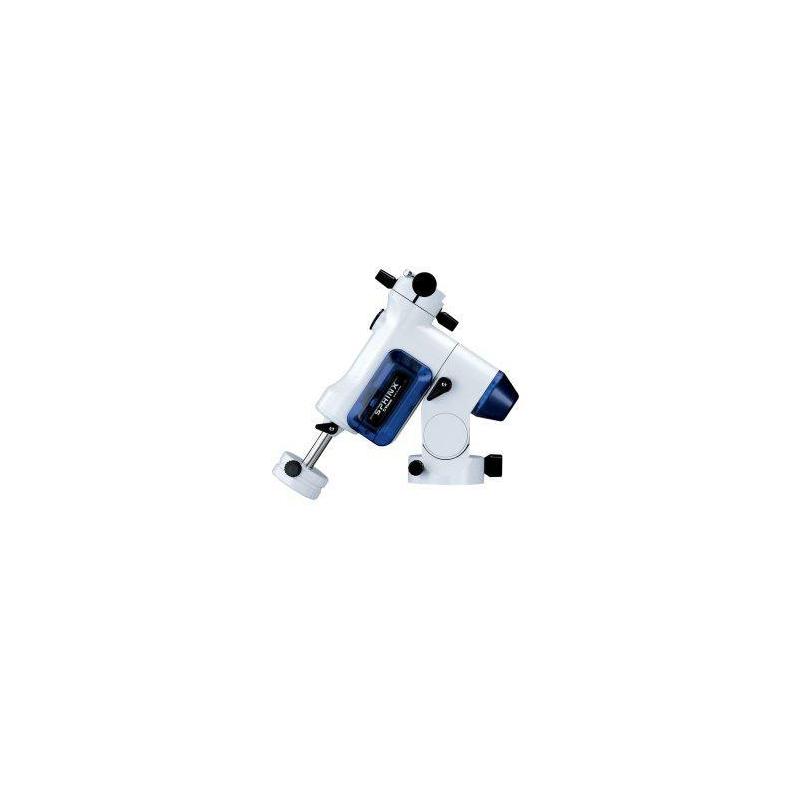

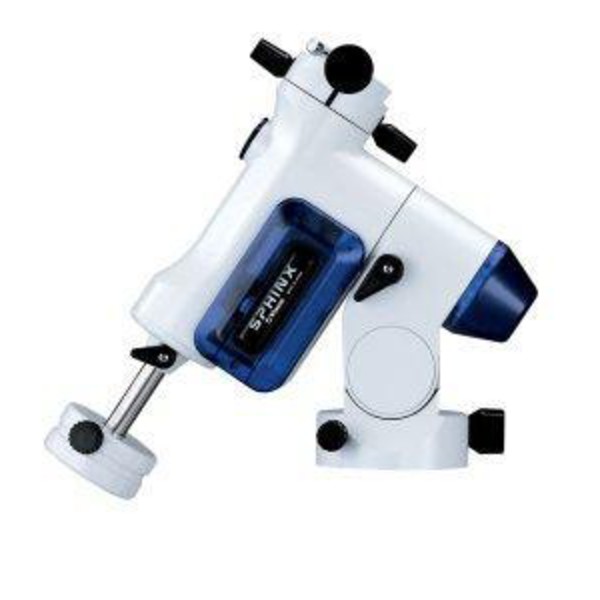

Sphinx SX Mount Features:

  • the mount uses a 180-tooth worm gear for fine full circle motion
  • built in motors allow for improved motion of the polar axis rotation and reduces the need for heavy counterweights; counterweight shaft is stored inside the mount for convenience
  • optional internally illuminated polar axis scope can be easily threaded into the mount body
  • SX mount easily handles Vixen’s 8 inch aperture optical tubes and utilizes the standard Vixen dovetail bracket
  • recommended loading capacity of the SPHINX mount: 10 kg
  • weight of the SPHINX mount head (without counterweight): 15 lbs
  • a Half Pillar accessory option adds height adjustment and viewing location versatility

STARBOOK:

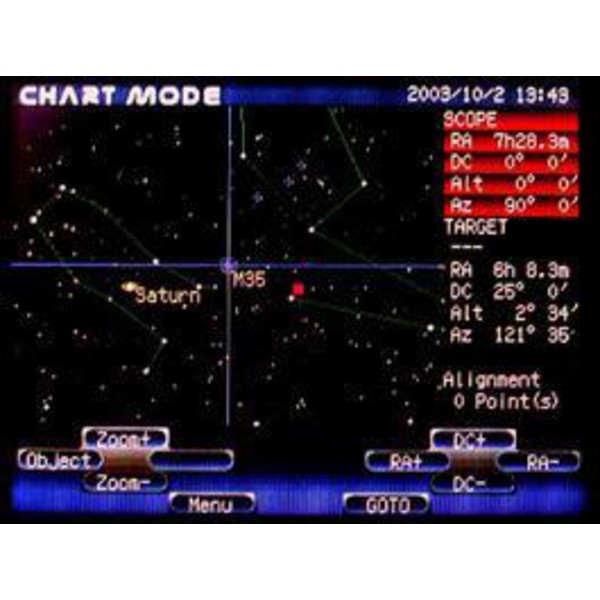

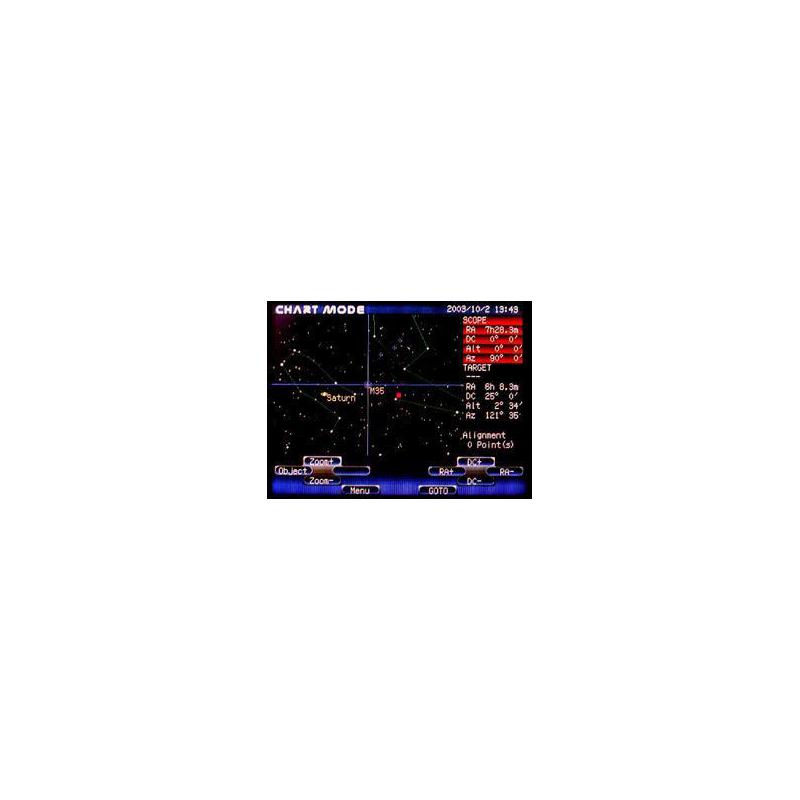

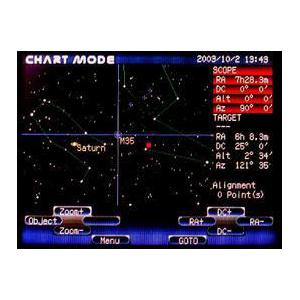

Features and menu options are displayed on the large color screen and are navigated with simple buttons on the controller. The STARBOOK is easy to use and makes the SPHINX available to a wide range of ages and experience levels. A large astronomical database with 22.725 celestial objects is stored. A

LAN-Port within the controller allows for computer control and network connectivity. The STARBOOK is also compatible with an auto guider (including SBIG ST). The auto-guider port comes standard on all controllers.

The SPHINX mount and STAR BOOK controller with the counterweight shaft and 1.9kg weight included. This will allow for use and balance with a wide range of optical tubes. For using the mount with heavier optical tubes, additional counterweights are available.

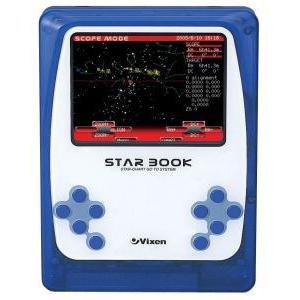

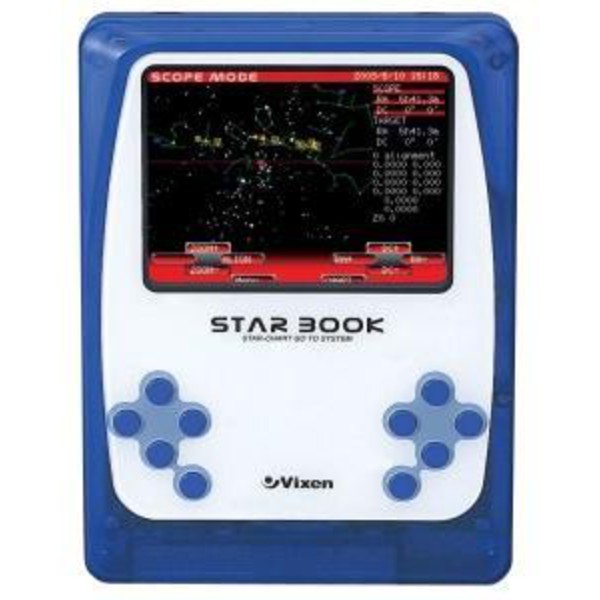

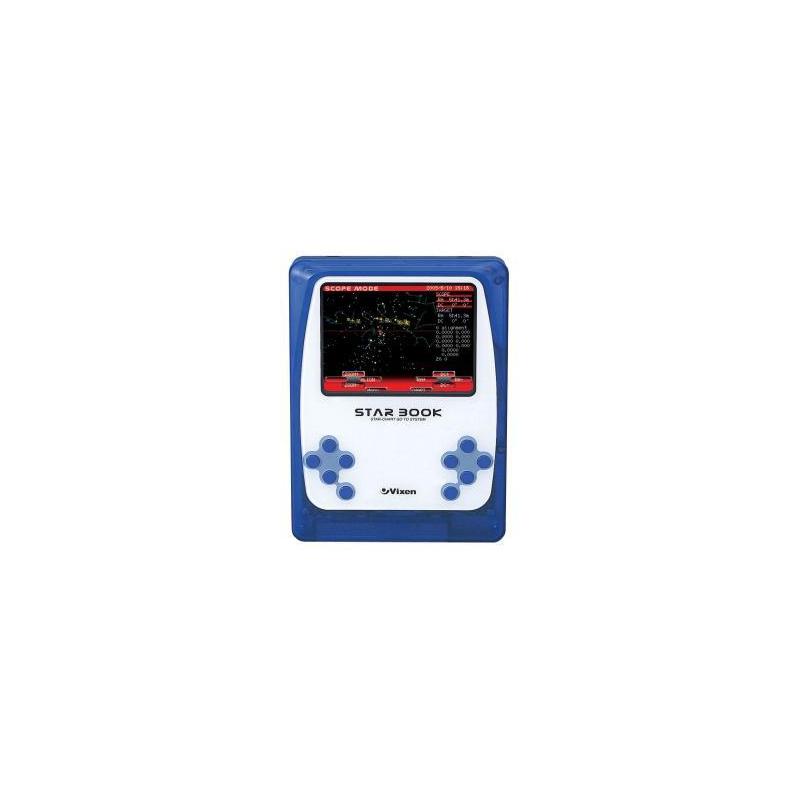

Starbook Hand Controller Features:

  • large color liquid crystal display (4.7 inch, 320x420 pixels, STN, 4096 colors)
  • High Speed Internal CPU (32 bit RISC processor, 75MHz, 8MB SDRAM, 4MB Flash ROM upgradeable)
  • Zoom-In/Out buttons for the color star chart display also control the motor speed
  • features and menu options are displayed on the large color screen
  • STARBOOK is amazingly easy to use & makes the SPHINX available to a wide range of ages and experience levels
  • large astronomical database with 22.725 celestial objects is stored
  • LAN Port within the controller will allow for computer control and network connectivity once downloads are available from Vixen; Vixen will offer flash upgrade downloads from their website
  • future flash ROM download will allow for compatibility with a variety of auto guiders (including SBIG); auto-guider port is standard on all controllers
  • STARBOOK controller can be used as a stand alone star atlas from anywhere, anytime

Date tehnice

Capacitate


Denumire
SPHINX SXW
Incarcare maxima (kg)
11
Reglaj inaltime axa polara (°)
0-70
Coroana dintata (RA)
180
Contragreutate/contragreutati
1
Software
Star Book
Display
4,7
Limba meniu
Germana
Baza de date
22725
NGC
4980
Messier
110
Interfete
LAN
Surse de curent
12
Consum de energie la functionare libera (mA)
-

Extras


Ghidaj manual
-
Sistem GoTo
da
Actualizabil prin internet
da
Tava accesorii
-
Montura de calatorie
-
Dimensiune potrivita pentru bagaj de mana
-

Echipare


Trepied
fara trepied

Trepied


Stativ coloana
-
Inaltime maxima trepied (cm)
-
Greutate trepied (kg)
-
Material trepied
- (Trepied disponibil opțional)

General


Culoare
alb
Lungime (mm)
360
Latime (mm)
360
Inaltime (mm)
120
Greutate totala (kg)
6,8 (ohne Stativ)
