Monturi & accesorii > Monturi > Ecuatoriala cu GoTo > Skywatcher > CQ350 > Skywatcher Montura CQ350 Pro Synscan GoTo Tripod
Nr. articol: 77373

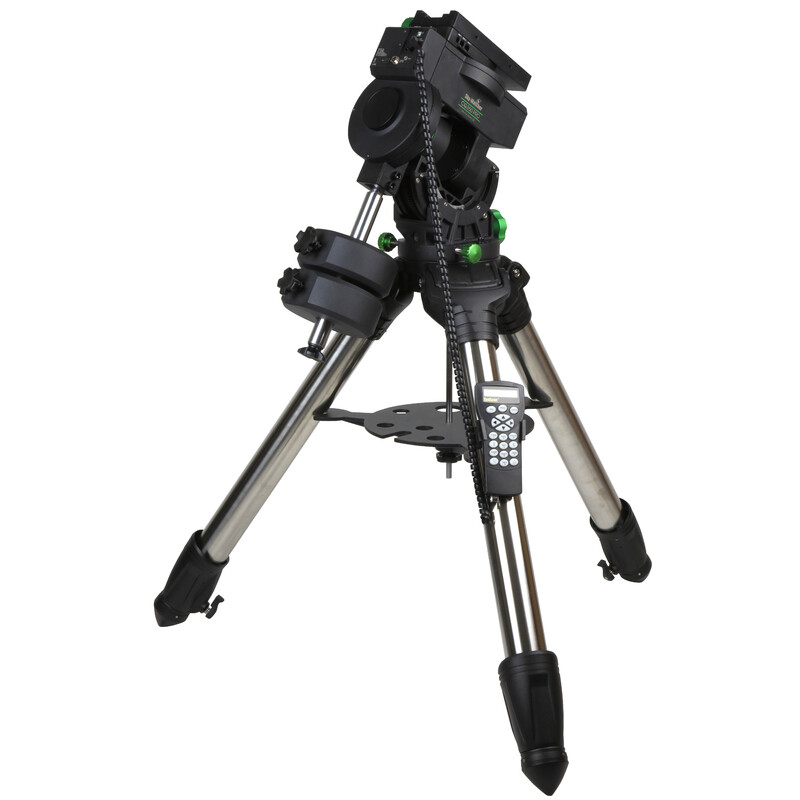

Montura CQ350 Pro Synscan GoTo Tripod

$ 4.190,00 incl. TVA, plus costuri de livrare
prea scump?
termen scurt
gata de livrare in 1-2 saptamani + timp de tranzit
Acest produs este disponibil in urmatoarele variante:
Trepied Pret
Trepied $ 4.190,00
fara trepied $ 3.410,00

Descriere produs

Shortly:

  • Load capacity up to 35 kilograms
  • Database with 42,900 objects
  • Toothed belt drive for smooth running
  • SynScan V.5 hand control box
  • Dual prism rail

With the CQ350, Sky-Watcher presents a mount that sits between the EQ6-R and the EQ8-R . It can be used for mobile astrophotography, garden observatories or club observatories. It is therefore available both with and without a tripod.

The equatorial CQ350 Pro has the well-established SynScan™ computer control with 42,900 objects in the integrated database. These can be easily accessed using the Messier, NGC and other catalog numbers. With an optional WiFi dongle, it is possible to control the mount via an app with iOS or Android devices.

The mount was developed for the demanding astrophotographer , its maximum load is 35kg. The combined dovetail bar clamp for 45 and 75mm dovetail bars allows a large selection of telescope tubes and other accessories to be accommodated.

The quietly working mount is moved in both axes via belt drives with stepper motors (encoder resolution: 55,193,600 counts/rev., approx. 0.023 arc-second). The smooth running and the high panning speed make this mount very interesting for observatories with public tours.

The scope of delivery includes two counterweights, each weighing 10 kg. An external polar finder can optionally be connected for quick setup.

The CQ350 mount is compatible with the EQ8 column stand.

Date tehnice

Capacitate


Incarcare maxima (kg)
35
Suport de montare
Losmandy & Vixen
Reglaj inaltime axa polara (°)
0-70
Reglaj azimutal fin (°)
+/-15
Coroana dintata (DEC)
288
Coroana dintata (RA)
308
diametru spirala melc RA (mm)
155
Encoder
da
Interfete

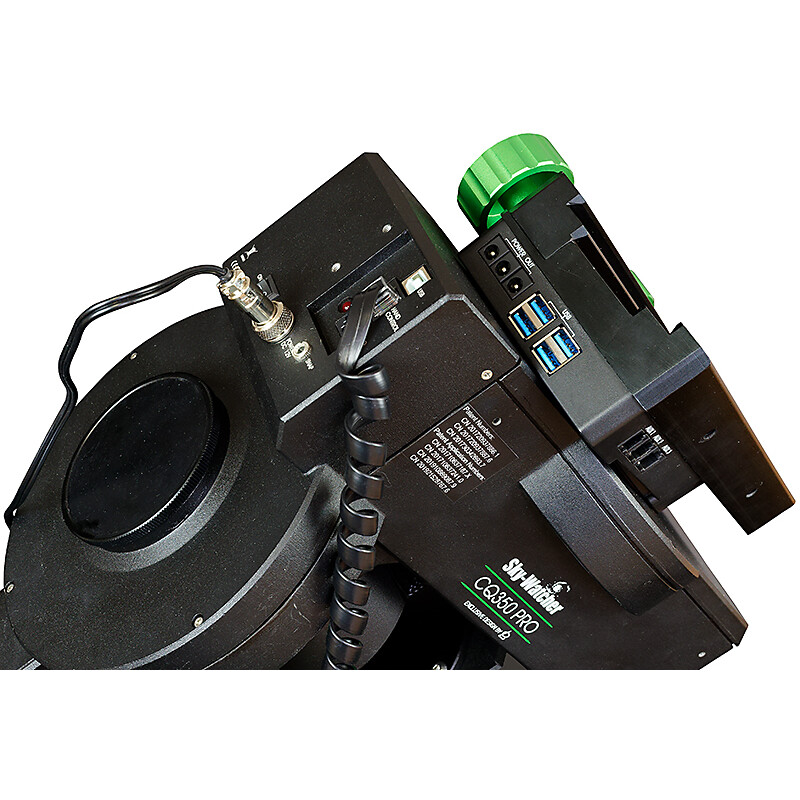

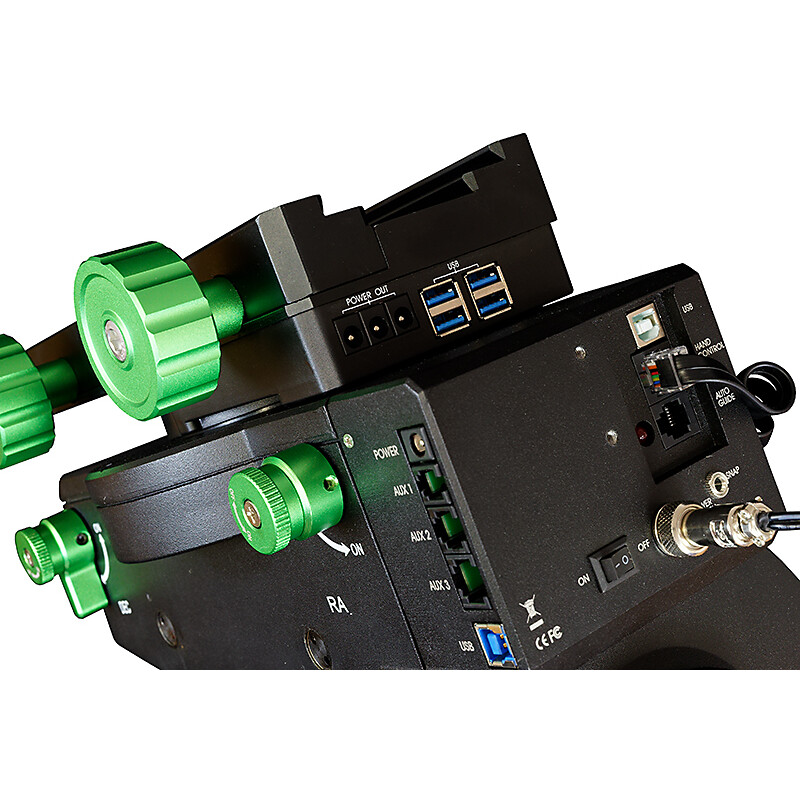

4xUSB, 1xShutter Release, 1xPower Input, 3xPower Output, 1xHandcontroller Port & 1xAutoguider Port
Ghidaj prin cablu
intern
Surse de curent
16
Consum de energie la functionare libera (mA)
2000
Tip motor
Motoare pas cu pas
Transmisie pe curea dintata
da
Greutate doar cap montura (kg)
15
Viteza de pendulare
4

Extras


Sistem GoTo
da

Echipare


Luneta polara
nu
Actionare cu motor
da
Trepied
Trepied
Cutii transport
nu

Trepied


Material trepied
Aluminiu
Inaltime maxima trepied (cm)
108
Inaltime minima trepied (cm)
77,5
Greutate trepied (kg)
15,7
Picior trepied
Material sintetic
Diametru picioare trepied (mm)
70

General


Tip
Montura
Tip constructiv
ecuatoriala
Serii
CQ350
Greutate totala (kg)
50,9

Control GoTo


Baza de date
42.900
cu unitate manuala
da
Controler manual
SynScan
GPS
optional
WIFI
optional
Corectie PEC
da
Viteze de urmarire
sideral, solar si lunar
Limba GoTo
multilingual
Software
SynScan
Autoguiding
da
