Monturi & accesorii > Monturi > Ecuatoriala cu GoTo > iOptron > HEM > iOptron Montura HEM44 Hybrid EQ
Nr. articol: 77496

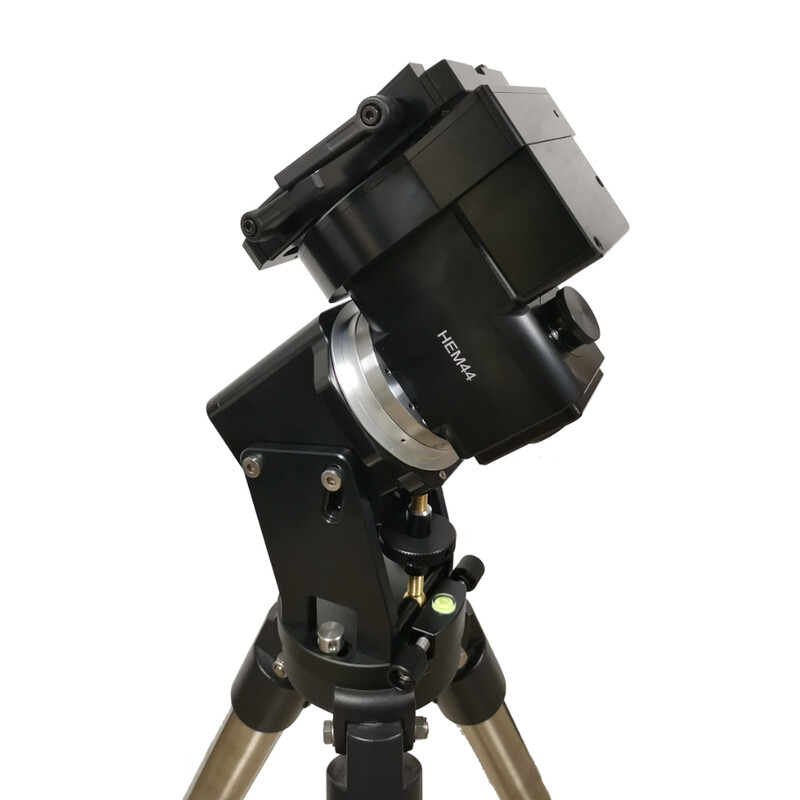

Montura HEM44 Hybrid EQ

$ 3.140,00 incl. TVA, plus costuri de livrare
prea scump?
termen scurt
gata de livrare in 3-5 saptamani + timp de tranzit

Descriere produs

Din pacate, descrierea acestui produs nu a fost inca tradusa in limba romana, din acest motiv veti gasi in loc o descriere in limba engleza.

In short:

  • Load capacity of up to 20kg without counterweights
  • Built-in zero position and geolocation
  • Controllable using ASCOM & INDI drivers or on the go using iOptron Commander Lite, SkySafari and Raspberry Pi
  • Robust, durable full metal casing

Although the mount itself weighs only 6.2kg, you can mount telescopes weighing up to 20kg on this mount without the need for any counterweights.

The HEM44’s casing is made from CNC-machined metal which is not only aesthetically pleasing but also provides a robust foundation which will perform at a high level for many years.

Funitions such as an electronic brake and power-down storage enable the HEM44 to securely stop and start GoTo alignment, even after an unexpected power cut (no need for realignment and zero positioning). The mount can be controlled using a Windows PC (using the ASCOM or Commander drivers) or MacOS (using a third-party INDI driver), but also on the go using iOptron Commander Lite, SkySafari and a Raspberry Pi.

Comentariul expertilor nostrii:

Din pacate, descrierea acestui produs nu a fost inca tradusa in limba romana, din acest motiv veti gasi in loc o descriere in limba engleza.

Please read the Quick Setup Guide (QSG) BEFORE setting up and operating the mount! Please also read the full online instruction manual for details. A HEM mount has an internal cable management system. To avoid cable damage, a mechanical stopper is implemented on the RA-axis in order to prevent rotation of more than 360 degrees. Due to the powerful torque of the strain wave gear in these mounts, damage to the stopper may occur, if

1.) “Site and Time” are incorrectly set and 2.) The mount is started from an incorrect Zero Position. Please perform these steps when initiating the HEM mount: “MENU => Zero Position => Searching Zero Position” in order to establish Zero Position. Then manually slew the mount past the meridian by 20 degrees.

Date tehnice

Capacitate


Incarcare maxima (kg)
20kg fara contragreutate
Interfete
WiFi & USB
Limba meniu
Engleza
Reglaj inaltime axa polara (°)
15-65
Suport de montare
Losmandy & Vixen
Greutate doar cap montura (kg)
6,2 (mit Schiene)
Reglaj azimutal fin (°)
+/- 6
Tensiune la intrare
12
Amperaj (A)
5
Ghidaj prin cablu
intern (2x12V 4A max., 1xUSB2.0
Encoder
nu
materialul axei declinatiei
Aluminiu
material axa ascensie
Aluminiu
Tip motor
Motoare pas cu pas

Extras


Sistem GoTo
da
Controler
da
Libelula
da

Echipare


Trepied
fara trepied
Cutii transport
da
Luneta polara
nu
Alt continut
Adaptor retea

General


Serii
HEM
Tip
Montura
Tip constructiv
ecuatoriala

Control GoTo


GPS
da
WIFI
da
Corectie PEC
da
Limba GoTo
Engleza
Software
Go2Nova 8408
Autoguiding
da
Interfete
AutoGuider, Aux, RS232
Baza de date
212.000
