Monturi & accesorii > Monturi > Ecuatoriala cu GoTo > iOptron > iOptron Montura GEM45EC-NUC LiteRoc
Nr. articol: 74102

Montura GEM45EC-NUC LiteRoc

$ 5.100,00 incl. TVA, plus costuri de livrare
prea scump?
termen scurt
gata de livrare in 3-5 saptamani + timp de tranzit

Descriere produs

Din pacate, descrierea acestui produs nu a fost inca tradusa in limba romana, din acest motiv veti gasi in loc o descriere in limba engleza.

Do you require more versatility in your equatorial mount without a tangle of cables?

Are you fed up of connection errors when connecting to other provider’s interfaces?

Then the iOptron NUC mount is the one for you!

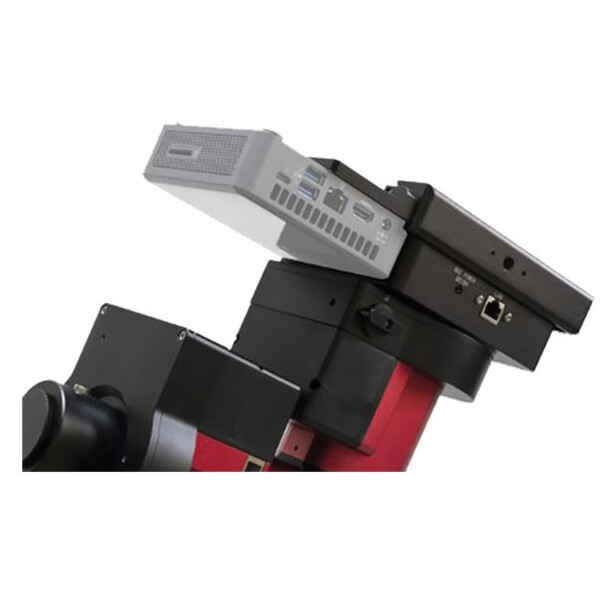

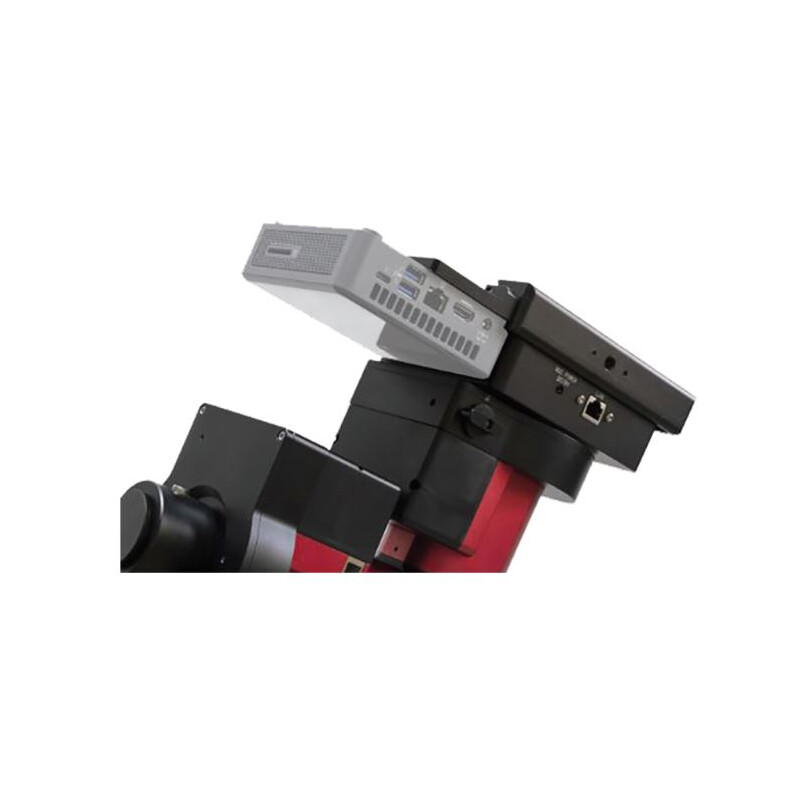

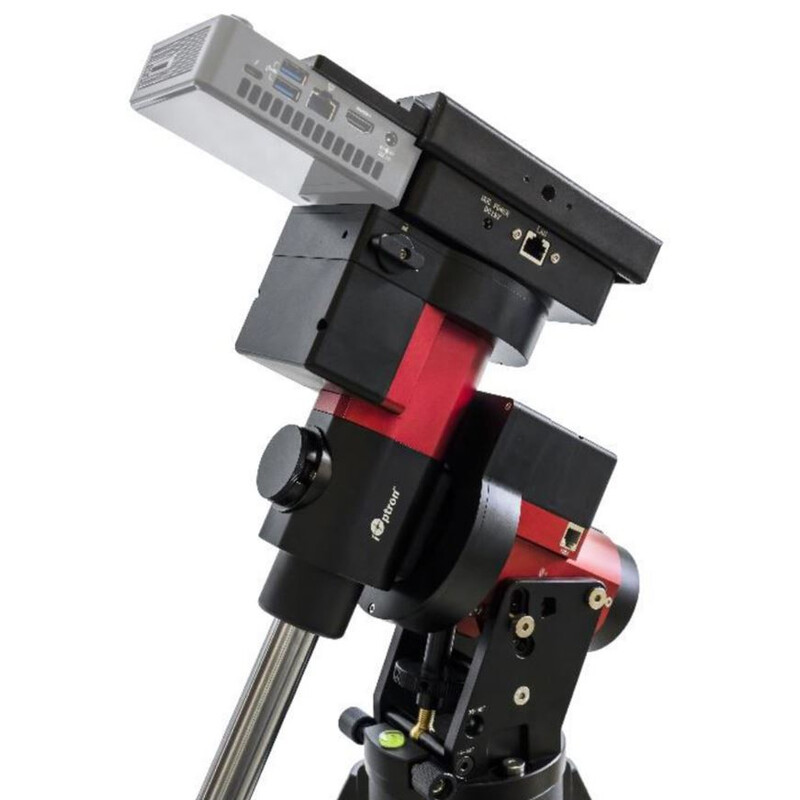

The GEM45 can now be seamlessly connected to the mount’s cable system using an Intel® NUC mini-computer (thickness ≤38mm) on the front of the prism clamp.

The iOptron® GEM45 mount is the next generation of equatorial mounts but with a classic design.

This mount is exceptionally well-made and functional.

Innovative iOptron technology

Make space for an innovative mount!

The GEM45 has an integrated electronic polarscope, known as iPolar.

This tool guarantees precision alignment for your telescope, even when Polaris is not visible.

The GEM45 NUC has a dual prism clamp which takes Losmandy-style and Vixen-style rails.

Furthermore, the mount has iOptron’s low-energy-consumption, ultra-quiet stepper motor drive system, already found in other iOptron mounts.

Computer-assisted functions

The iOptron GEM45 mount uses Go2Nova® 8407 hand controller to navigate the night sky. This unbelievable technology works with the mount's object database of 212,000 entries to assist observers in finding celestial objects!

And the mount has even more benefits...

  • The integrated electronic polarscope, iPolar, makes perfectly orientating the mount northwards child’s play, even when the Pole Star is not visible! Please note: A laptop or PC is required to use the iPolar.
  • Large dials allow the motor to be detached from the gears so that the axes can move freely, even when wearing gloves.
  • Its internal cable management prevents tangled cables or cables being pulled out.
  • The mount’s newly designed Universal Self-Centering Saddle takes Losmandy-style and Vixen-style prism rails and allows the telescope to be precisely aligned.
  • The CNC machined casing not only looks chic, it is also very durable.


The GoTo computer controls also include modern Go2Nova 8407+ hand controller with integrated heating to keep the large display free from dew. The object database contains over 212,000 objects! Furthermore, the controls feature their own 32-channel GPS, saving you from constantly having to enter the date, location and time. Of course, the mount also has a ST-4 port for autoguiders.

Its very quiet operation using stepper-motors is ideal for observing from your balcony and uses relatively little electricity.

The GEM45 is a very versatile and advanced mount!

Date tehnice

Capacitate


Incarcare maxima (kg)
20
Contragreutate/contragreutati
1 (5kg)
Interfete
USB
Limba meniu
Engleza
Reglaj inaltime axa polara (°)
14 - 68
Suport de montare
Losmandy & Vixen
Diametru rulmenti DEC (mm)
68
Diametru rulmenti RA (mm)
68
Diametru coroana melcata DEC (mm)
110
diametru spirala melc RA (mm)
110
Coroana dintata (DEC)
216
Coroana dintata (RA)
216
Diametru ax melc DEC (mm)
17
Diametru coloana melcata (mm)
17
Diametru ax RA (mm)
45
Diametru ax DEC (mm)
45
Diametru tija contragreutati (mm)
28
Greutate doar cap montura (kg)
8,2
Reglaj azimutal fin (°)
+/-6
Tensiune la intrare
12
Amperaj (A)
5
Tip motor
Motor pas cu pas
Ghidaj prin cablu
intern
Encoder
da
materialul axei declinatiei
Otel
material axa ascensie
Otel
Material coroana melcata
Aluminiu
Material coroana
alamă

Extras


Sistem GoTo
da
Controler
da
Libelula
da

Echipare


Trepied
Trepied
Cutii transport
da
Luneta polara
da

Control GoTo


Precizie
< +/-7
GPS
da
WIFI
optional
Corectie PEC
da
Aliniere Polara
iPolar
Limba GoTo
Engleza
Software
Go2Nova 8407
Interfete
Autoguider, USB
Baza de date
212.000
