Observatii in natura > Aparate night vision și termoviziune > Instrumente > Camere de termoviziune > Armasight > Command > Armasight Camera de termoviziune Command 336, 5-20x75 (60 Hz)
Nr. articol: 54557

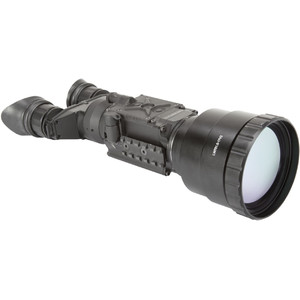

Camera de termoviziune Command 336, 5-20x75 (60 Hz)

$ 5.900,00 incl. TVA, plus costuri de livrare
prea scump?
termen prelungit
produsul nu mai este disponibil + timp de tranzit

Descriere produs

Note: The authorized export countries for this product are: Argentina, Australia, Austria, Belgium, Bulgaria, Canada, Croatia, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Japan, Latvia, Lithuania, Luxembourg, Netherlands, New Zealand, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, South Korea, Spain, Sweden, Switzerland, Turkey and the United Kingdom.

Din pacate, descrierea acestui produs nu a fost inca tradusa in limba romana, din acest motiv veti gasi in loc o descriere in limba engleza.

Armasight Command
The Command is the most technologically-advanced Thermal Imaging bi-ocular for the sporting, law enforcement, and military markets. The Command is based on the advanced FLIR VOx microbolometer core that is suitable for a variety of uses and missions.

The Command is a solid state, uncooled, long-wave infrared, magnified, dedicated handheld thermal imager intended for day and nighttime missions. The 24/7 mission capability is only one of the strengths of the Command bi-ocular. The thermal imaging technology also allows you to detect targets by cutting through snow, dust, smoke, fog, haze, and other atmospheric obscurants. Unlike the use of laser targeting or near-infrared illumination to augment night vision equipment, the Command thermal imager is extremely difficult to detect with other devices, as it emits no visible light or RF energy.

Special User-Adjustable Imaging Tools

  • Active Contrast Enhancement (ACE) – a digital “Contrast” correction that allows for a smart scene optimization based on dynamic adjustments where a variety of contrast levels occur depending on relative scene temperature.
  • Second Generation Digital Detail Enhancement (DDE) – a “Sharpness” correction that is digitally enhances the picture to present clearer imagery, significantly improves edge sharpening and further reduces image noise.
  • Smart Scene Optimization (SSO) – a fine-tuning computational correction that significantly improves an overall visual acuity for targets that have thermal signatures similar to a surrounding background.
  • Automatic Gain Control (AGC) – a “Gain” correction that used to automatically adjust the gain to an appropriate range, the weaker the image signal, the stronger the gain.
  • User-Controlled Manual Non-Uniformity Correction/Flat-Field Correction (UCMNUC/FFC). There is a mechanical shutter between the camera sensor and the lens. This shutter is used to perform a non-uniformity correction (NUC) also known as flat-field correction (FFC. During FFC, the shutter presents a uniform temperature source to each detector element in the array. While imaging the flat-field source, the camera updates the offset correction coefficients, resulting in a more uniform image after the process is complete. All Command models allow for user to manually trigger or interrupt scheduled UCMNUC/FFC function.
  • Silent Shutterless NUC ™ (SSN) – In addition to user controlled manual NUC/FFC all Command models employ a digital supplemental non-mechanical flat-field correction that allows to extend the periods between mechanical shutter events and to further reduce image noise. SSN is always ON enhancement.

FEATURES

  • High-performance thermal imaging camera
  • Lightweight and robust design
  • Easy to operate
  • Manually adjustable eyepiece and objective lens
  • Real-time display
  • Special user-adjustable imaging tools
  • Current operational state information display
  • Wireless remote control
  • Analog video input and output
  • Powered by two standard CR123A batteries
  • Power input capability
  • Digital video recorder (optional)
  • Serviceability under severe conditions
  • Filled with dry nitrogen to prevent internal fogging

Specification Command 336 5-20x75 (60 Hz)

  • Magnification 5,3 (NTSC) / 6,3 (PAL)
  • Objective Lens Type Germanium
  • Objective Focal Length 50mm
  • Objective F-number 1:1
  • Type of Focal Plane Array FLIR Tau 2
  • Refresh Rate 60 Hz
  • Pixel Array Format 336×256
  • Pixel Size 17 µm
  • Display Type AMOLED SVGA 060 800x600
  • Video Recording Optional Digital Video Recorder with SD card slot
  • Operating Temperature -40°C to +50°C (-40°F to +122°F)

Date tehnice

Capacitate


Tip constructiv
Binoclu (un obiectiv)
Tehnologie
Camera de termoviziune
Putere de marire
5 (+ 4x Digital Zoom)
obiectiv 3
75mm F:1
Rezolutie senzor
336x256
aratare imagine
Versiuni diferite
Rata ciclului imaginii (Hz)
60
Compensare dioptrii
+/- 5
Durata de viata baterie (h)
4

Extras


Iluminator infrarosu
-
Formare imagine digitala
da
Iesire video
da
Montura cap
-
Protectie la supra expunere
da
Sistem zi-noapte
da
Rezistent la stropire
da

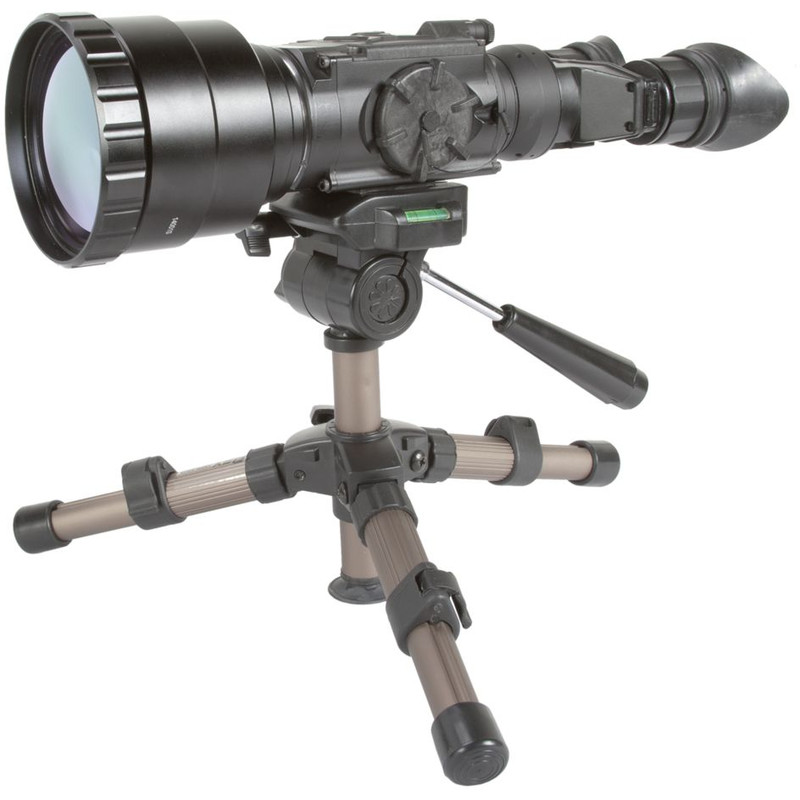

Filet de fixare pe trepied
da
disponibile oculare auxiliare
nu

Camp vizual


Camp vizual real (°)
4,3
Camp vizual la 100m (m)
7,5
Limita de focalizare in apropiere (m)
5

Aplicaţii


Protectie obiect & Observatii
da
Vanatoare & observatii in natura
da
Navigare & Pescuit
da
Speologie & Camping
da

General


Culoare
negru
Lungime (mm)
272
Latime (mm)
102
Inaltime (mm)
89
Greutate (g)
1080
Serii
Command

Alte produse


Tip baterie
CR123 (4 bucati)

Accesorii recomandate

Ingrijire & curatare > Solutie de curatare (3)

Omegon Set de curatare a lentilelor 7 in 1

$ 19,90*
Ingrijire & curatare > Altele (2)

Omegon Microfibra de curatare 20cm x 20cm

$ 4,90*
Alte produse (1)

Varta Baterie litiu CR123

$ 8,90*

*Toate preţurile includ TVA, plus costurile de transport maritim.

Armasight Camera de termoviziune Command 336, 5-20x75 (60 Hz)

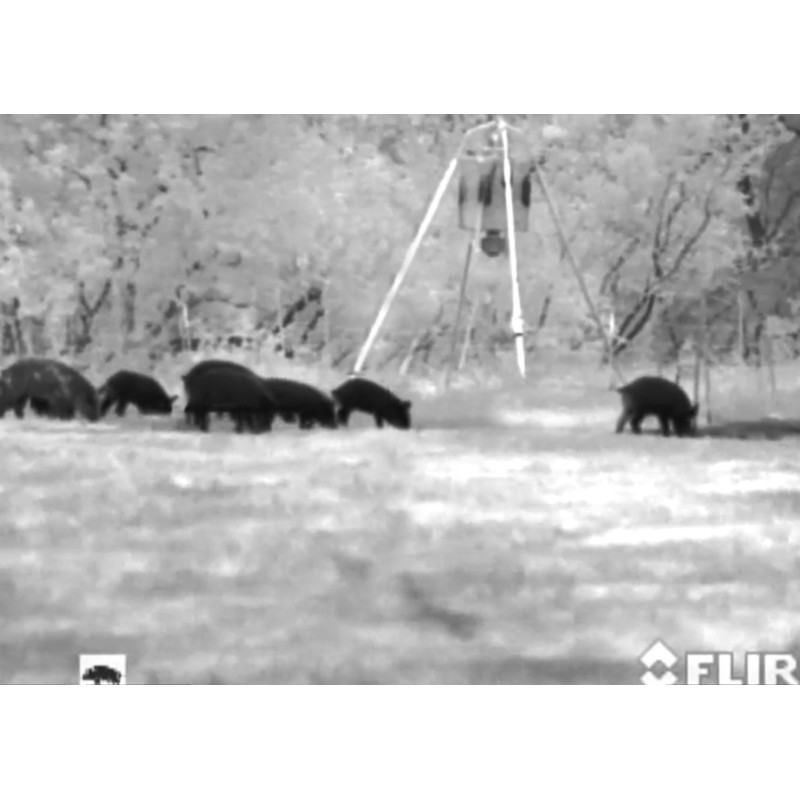

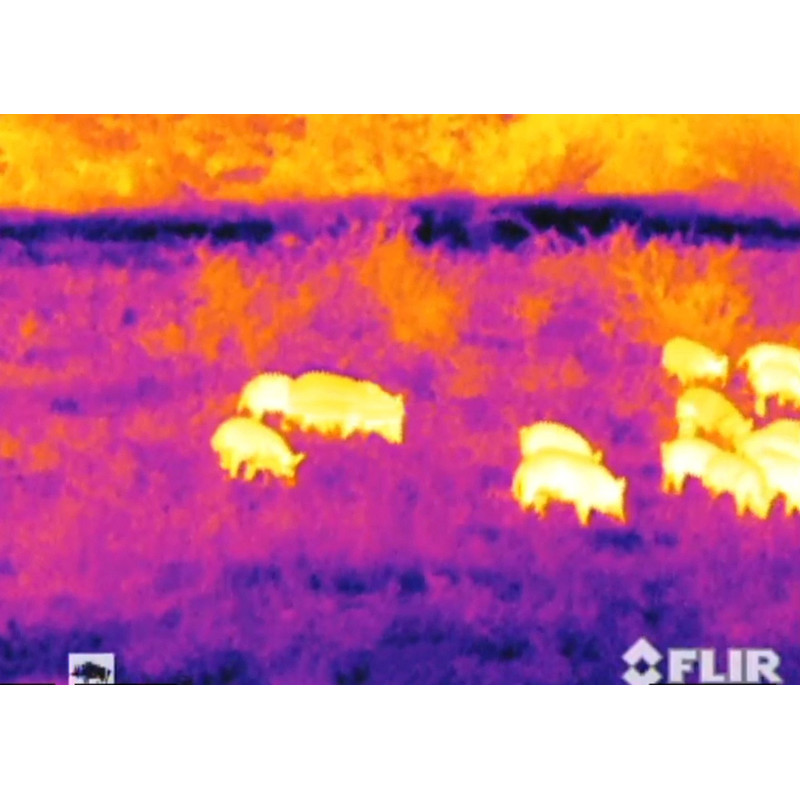

Exemplu de utilizare
