Astrofotografie > Aparate foto > Camere Astronomice > ZWO > ASI 294 > ZWO Camera ASI 294 MM Pro Mono
Nr. articol: 68797

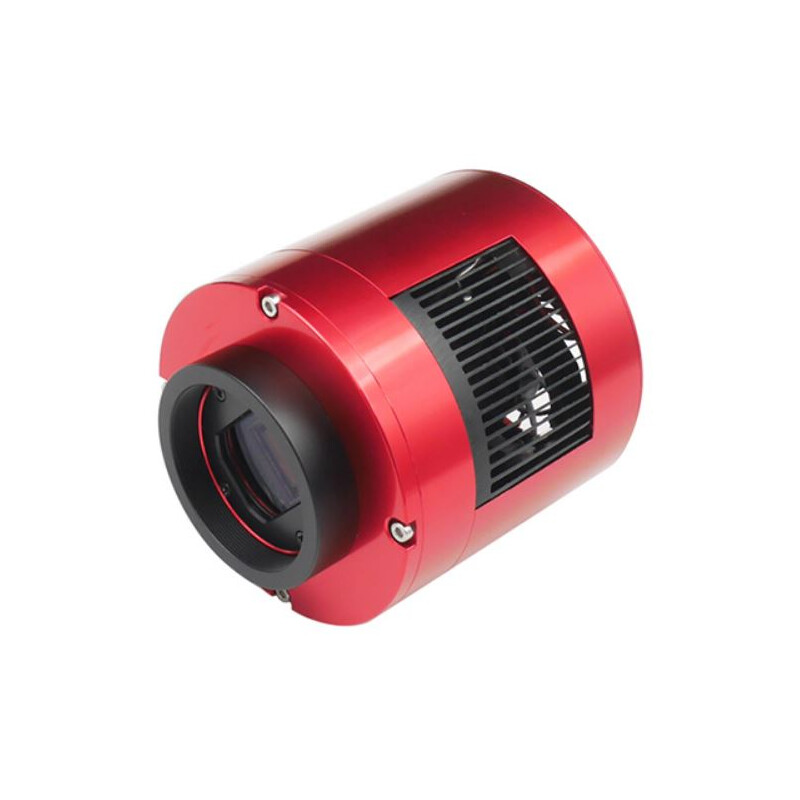

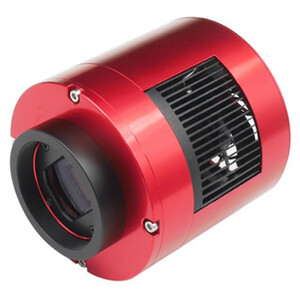

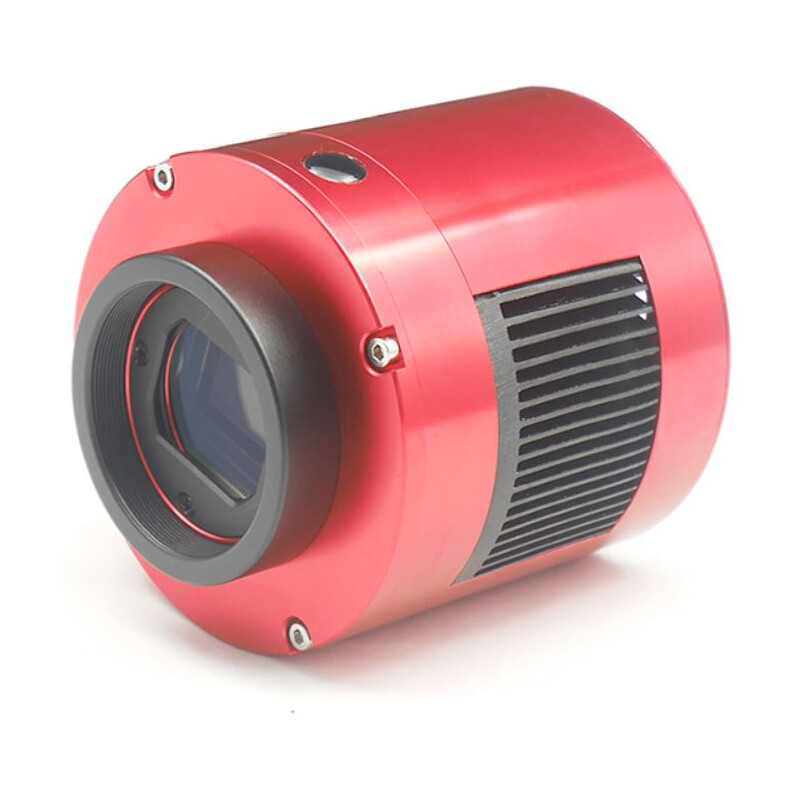

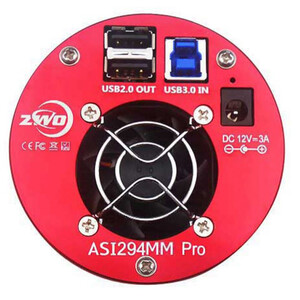

Camera ASI 294 MM Pro Mono

 $ 2.280,00 Pretul nostru:
$ 2.013,00 incl. TVA, plus costuri de livrare
prea scump?
in stoc
gata de livrare in 24 h + timp de tranzit

Descriere produs

Din pacate, descrierea acestui produs nu a fost inca tradusa in limba romana, din acest motiv veti gasi in loc o descriere in limba engleza.

ZWO ASI294MM Pro - cooled mono CMOS camera for many types of astrophotography.

ASI cameras stand for very good workmanship and have modern CMOS sensors built in. This versatile camera uses the modern back-illuminated Sony IMX492 sensor in Four-Thirds format.

The 4.63 µm pixels of the ZWO ASI294MM Pro make this camera an all-rounder with highest sensitivity for short exposure times in deep sky photography. Additionally, binning can be switched off, then the pixel size is only 2.32 µm, which increases the detail resolution - even planets can be photographed well this way.

Advantages and product features of the ASI 294 MM Pro Mono:

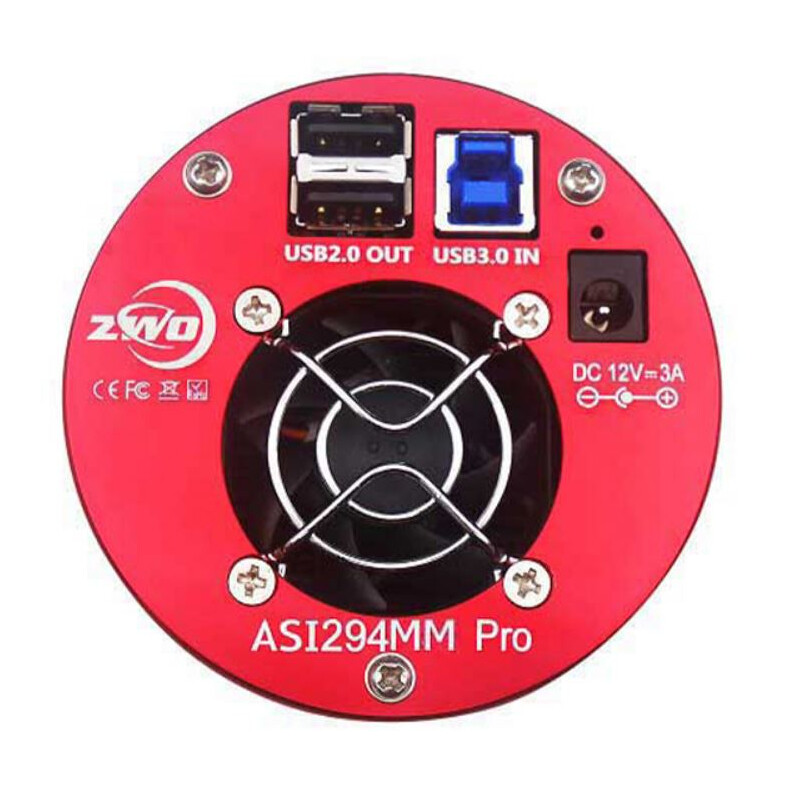

  • USB 3.0 for fast download - can also be operated with USB 2.0
  • DDR3 memory buffer for stable data transfer with USB2.0
  • Powerful Peltier cooling up to 35 °C below ambient conditions
  • Sensitive CMOS sensor with 23.2 mm diagonal - 11.7 megapixels
  • Good resolution due to 4.63 µm pixels
  • Switchable to 2.32 µm pixel size and 8288 x 5644 resolution
  • Supplied with AR clear glass filter - full transmission even in the infrared (If the IR is to be blocked, an IR blocking filter is required)
  • Distance T2 connection thread (internal thread) to camera sensor: 17.5 mm
  • Very high sensitivity - QE up to 90 % - ideal astronomy camera for faint objects
  • 14bit ADC

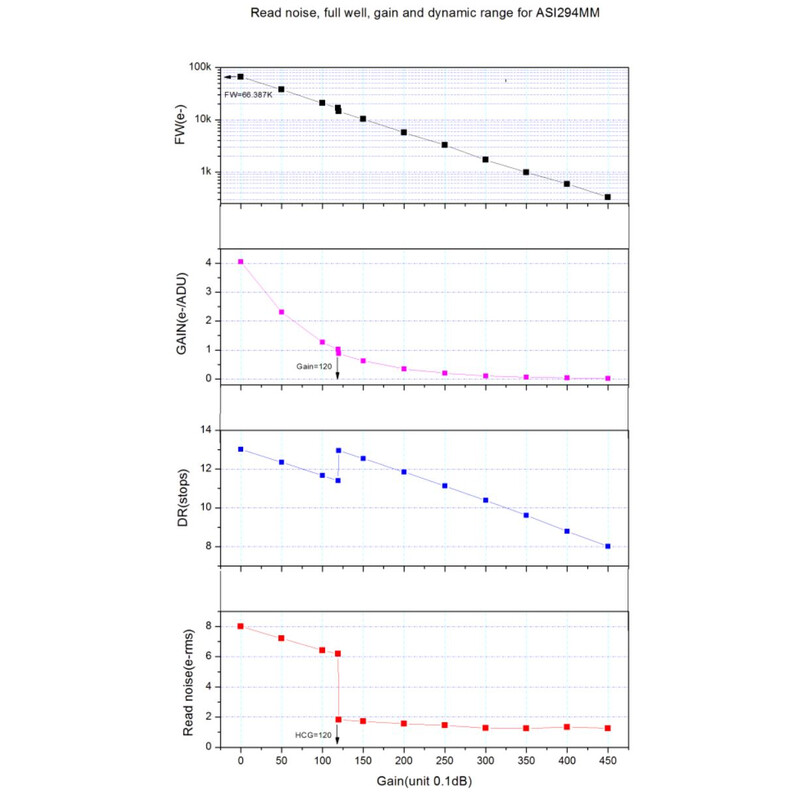

  • HCG mode - when gain (preamplification) is higher than 120 (12 dB), readout noise is reduced below 2 e-. Result: despite extremely high sensitivity you get low-noise images.
  • High Full Well Capacity - even bright stars no longer burn out, you get a better signal-to-noise ratio.

Camera application areas:

  • Deep sky imaging (nebulae and galaxies): Due to the high sensitivity, nebulae and galaxies are imaged even with short exposure times. The camera can be cooled down to 35 °C below ambient. This further reduces the already low noise.
  • Lunar and planetary imaging: Extremely short exposure times due to high sensitivity freeze air turbulence. Due to the high resolution of the sensor, many details can be imaged even at shorter telescope focal lengths. Video astronomy is also possible.

Important: external power supply necessary! Please note that all ZWO cameras with cooler must be connected to an external 12V power supply to work. Even if the cooler is not used, the power supply must be present for the camera to be reliably detected.

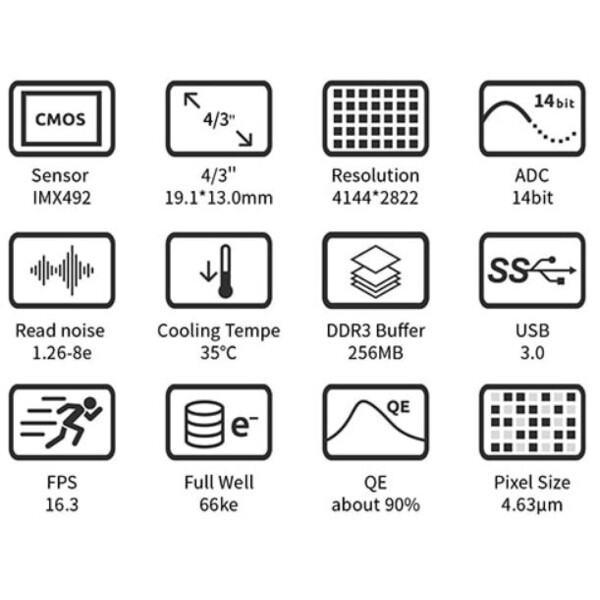

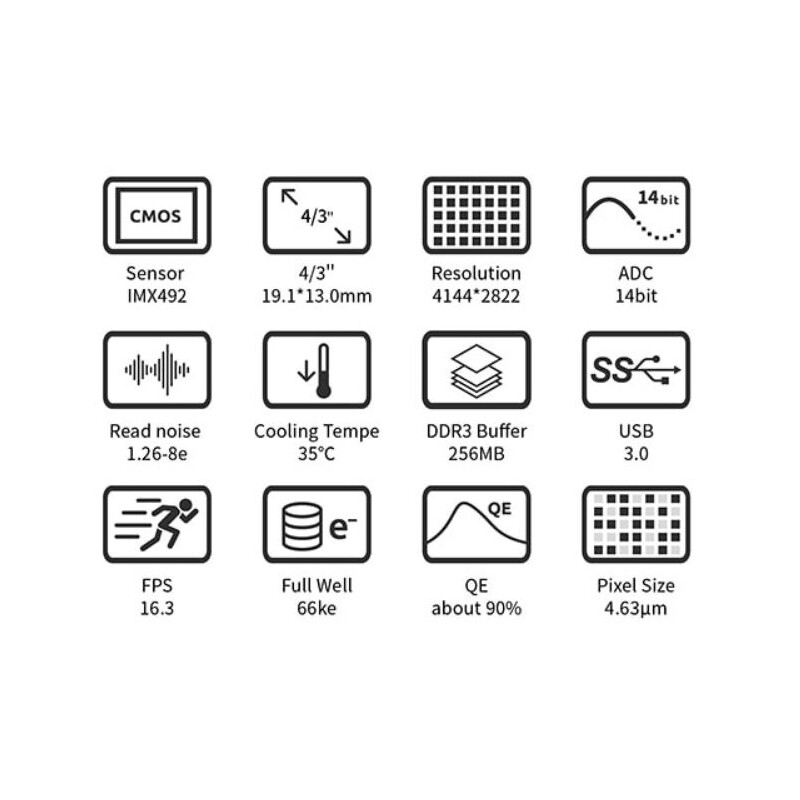

Date tehnice

Capacitate


Tip senzor
Cip CMOS (Sony IMX492)
Dimensiune chip (mm)
19.1 x 13.0
Cip - Diagonala (mm)
23.1
Megapixel
11,6
Dimensiune pixel
4,63
Rezolutie imagine
4144 x 2822
Adancime bit (Bit)
14
Racire
da
Interfete
USB 3.0 & USB 2.0
Conexiune (spre telescop)
1,25" & 2" & T2
Camera color
nu
Diferenta racire maxima sub temperatura camerei
35
Imagini pe secunda
16,3
Zgomot la citire
1,26 - 8
Full Well Capacity
66.000
Distanta flansa (mm)
6.5 / 17.5
Surse de curent
12
memorie buffer (Megabyte)
256
Memorie interna
DDR3 RAM

Echipare


Roata filtre
nu

General


Greutate (g)
410
Serii
ASI 294
Diametru (mm)
78
Lungime (mm)
85

Aplicaţii


AllSky, Meteore
nu
Autoguider
nu
Luna & Planetele
da
Nebuloase & Galaxii
da

Accesorii recomandate

Accesorii telescop (1)
Adaptor retea

ZWO Adaptor retea Alimentare externa, 12V 5A

$ 54,00*
Filtre (2)
Filtre de blocare

Omegon Filtre de blocare Filtru UV/IR CUTOFF 1.25''

$ 79,00*
Astrofotografie (4)

Artesky Adaptor Canon la CMOS cu extractor filtru

$ 185,00*
Spectrometrie & Fotometrie (1)
Spectroscop

Paton Hawksley Spectroscop Star Analyser 100

$ 204,00*
Carti & media (1)

Springer Inside PixInsight

$ 27,90*

*Toate preţurile includ TVA, plus costurile de transport maritim.

ZWO Camera ASI 294 MM Pro Mono

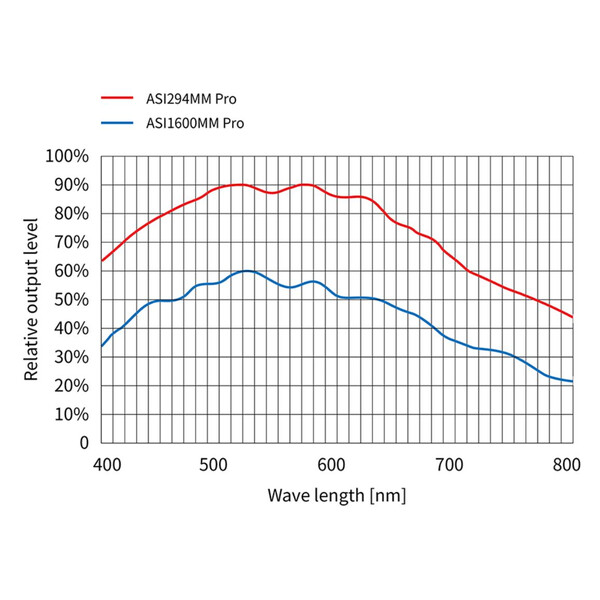

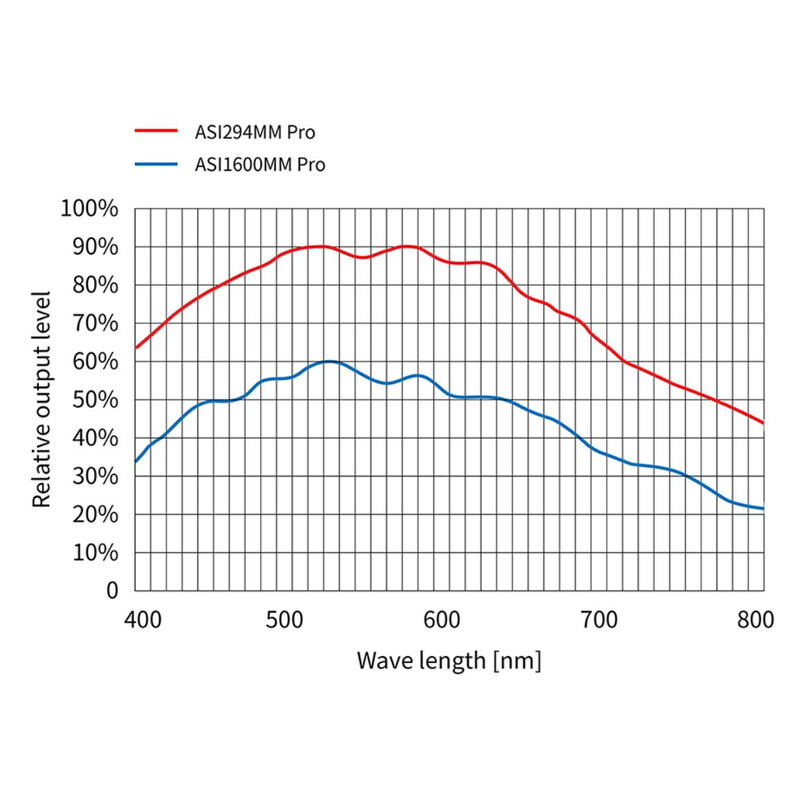

Eficienta cuantica
ZWO Camera ASI 294 MM Pro Mono

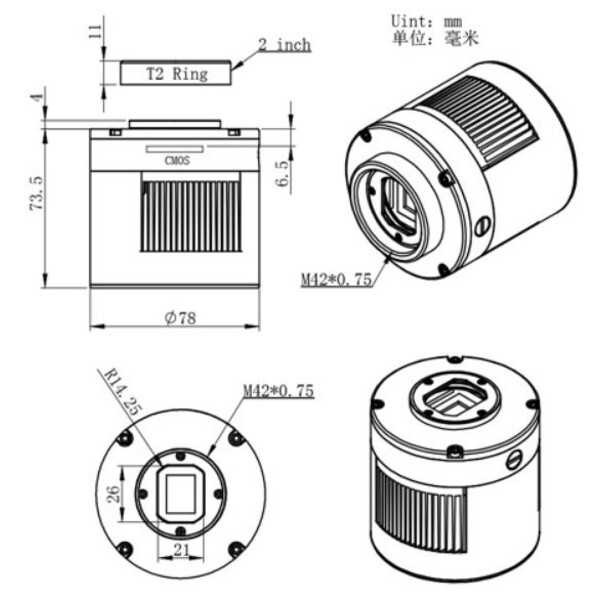

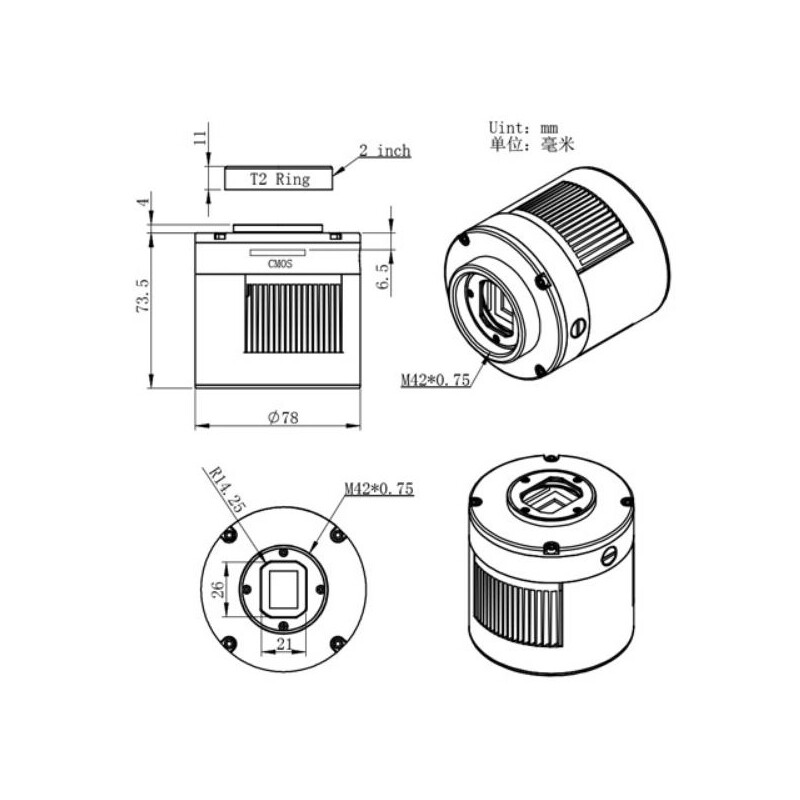

Dimensiuni
ZWO Camera ASI 294 MM Pro Mono

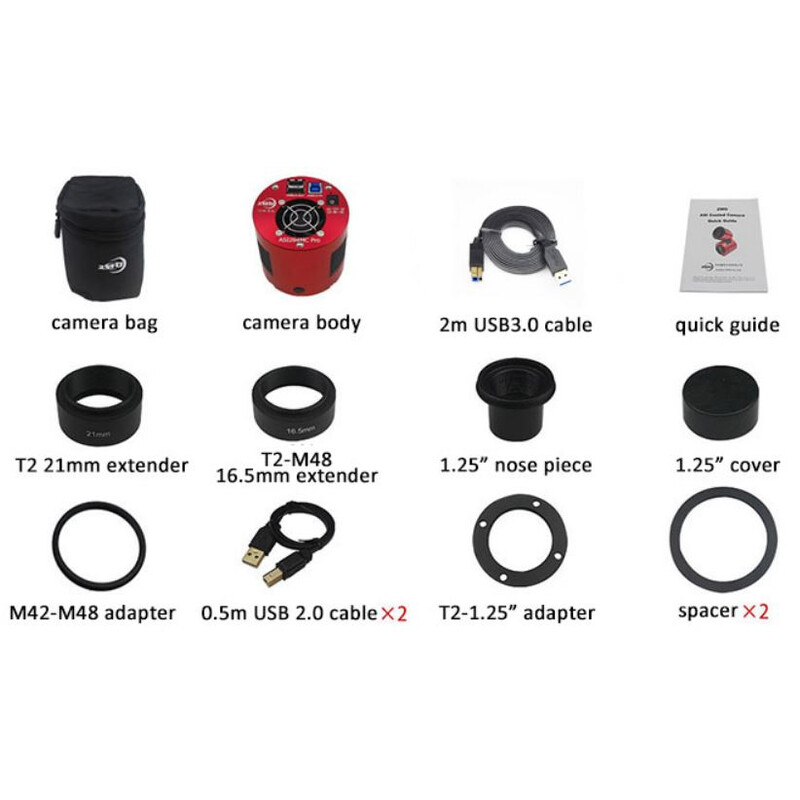

Continut la livrare

Comentarii

Nu exista comentarii ale clientilor pentru acest produs inca.

Scrieti comentariul dumneavoastra propriu:
