Astrofotografie > Aparate foto > Camere Astronomice > ZWO > ASI 183 > ZWO Camera ASI 183 GT Mono
Nr. articol: 63778

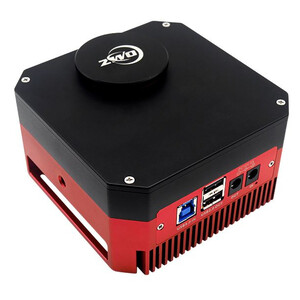

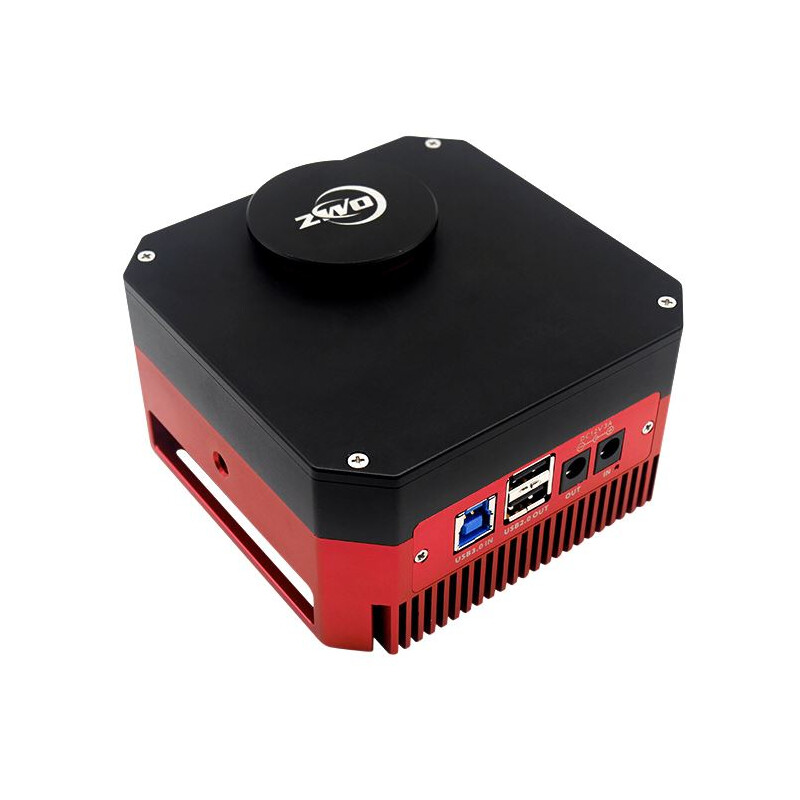

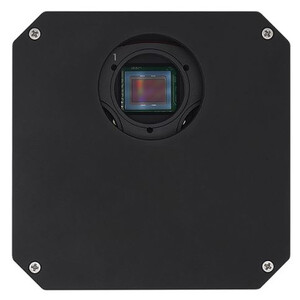

Camera ASI 183 GT Mono

 $ 2.240,00 Pretul nostru:
$ 2.020,00 incl. TVA, plus costuri de livrare
prea scump?
termen prelungit
produsul nu mai este disponibil + timp de tranzit

Descriere produs

Din pacate, descrierea acestui produs nu a fost inca tradusa in limba romana, din acest motiv veti gasi in loc o descriere in limba engleza.

Cooled mono camera with internal 5x1.25" electronic filter wheel - for demanding astrophotographers!

The ZWO ASI GT camera range includes all the great features and performance of the original ZWO ASI Pro series, but now with an integrated 5x1.25" ultra-quiet electronic filter wheels as well as 12V power distribution!

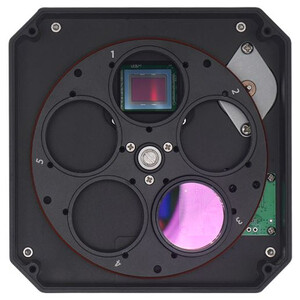

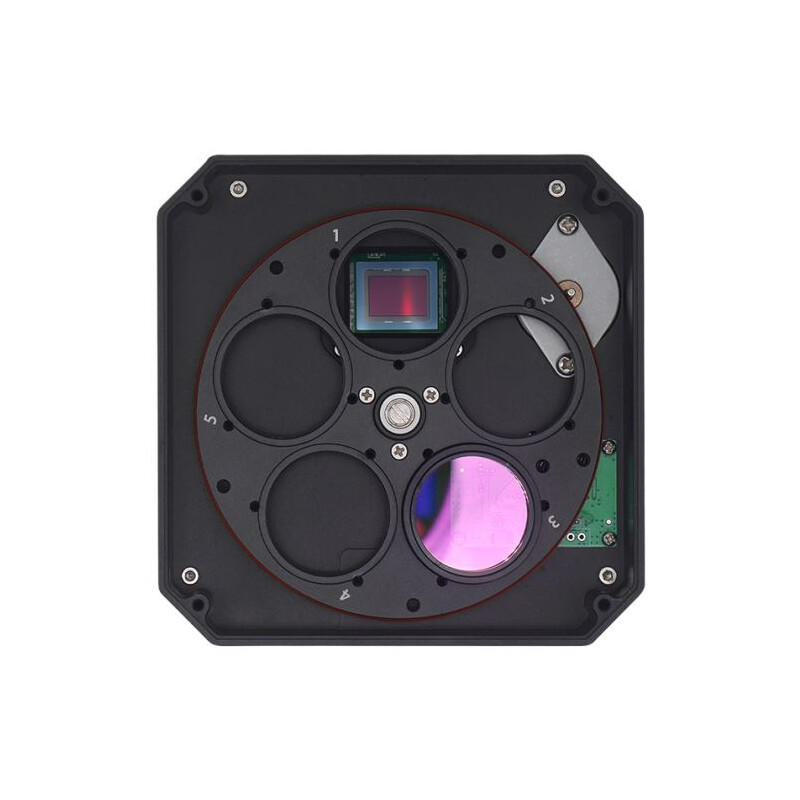

Internal EFW: The internal 5-position electronic filter wheel (EFW) can accept both 1.25” and 31mm filters. The EFW is driven by a whisper quiet high grade stepper motor. Important Note: The thickness of the 1.25” filter cannot exceed 7mm (without threads), and the thread must be shorter than 2.5mm to avoid the filter wheel striking the camera housing.

The body of the EFW is CNC milled from an aircraft grade aluminum block finished in an attractive and hardwearing anodized finish. The inner surface of the EFA has been especially treated to prevent internal light reflections.

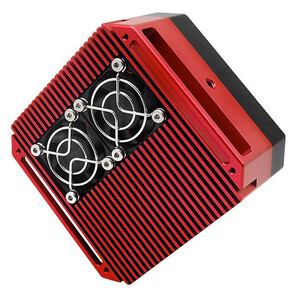

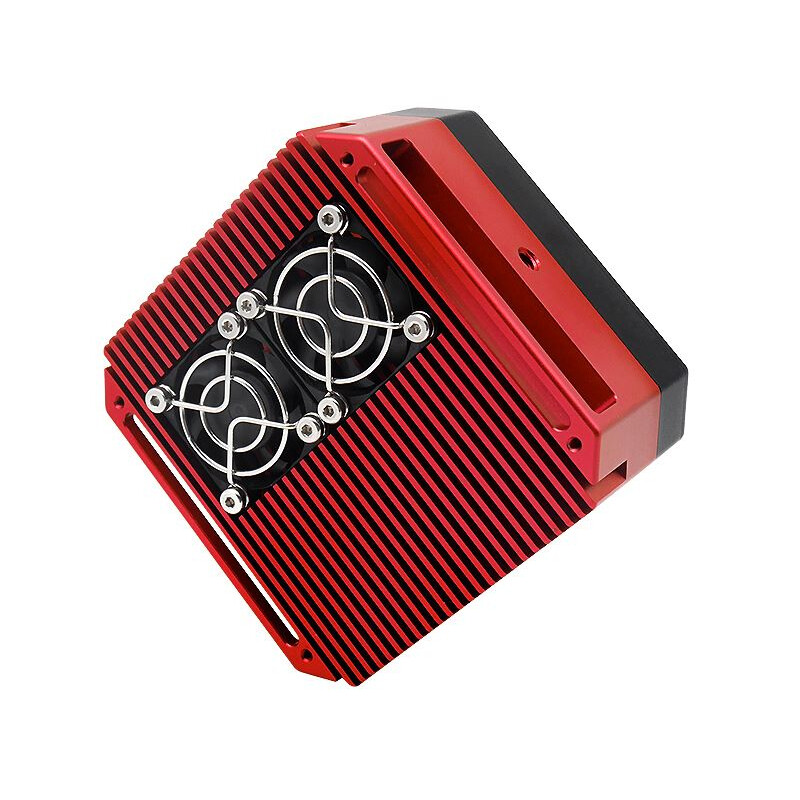

The camera body has 24 heat radiating grooves fitted with dual maglev fans to ensure the temperature difference remains between 40-45℃ below ambient temperature.

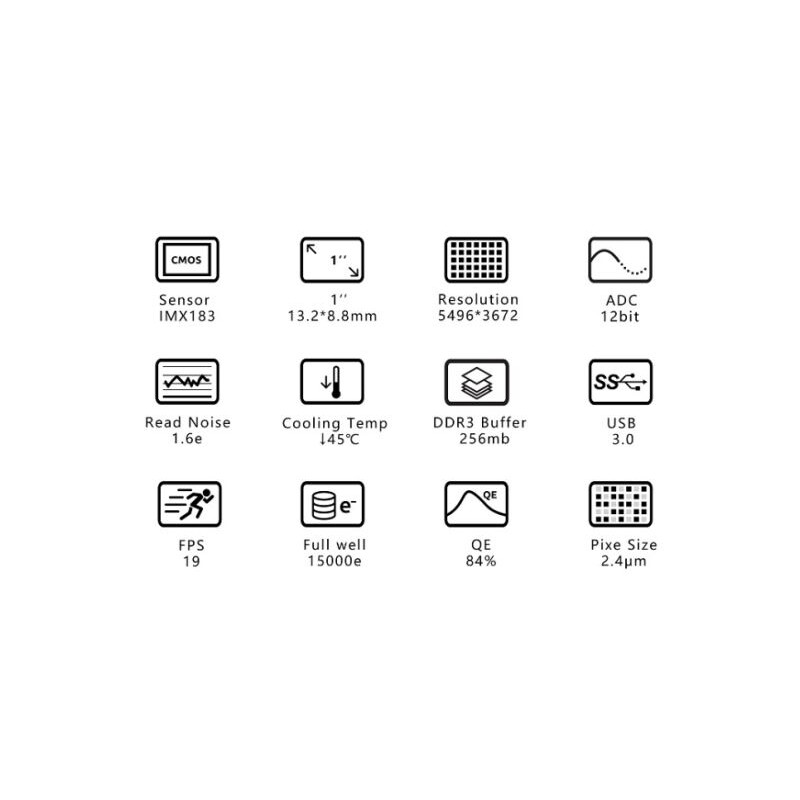

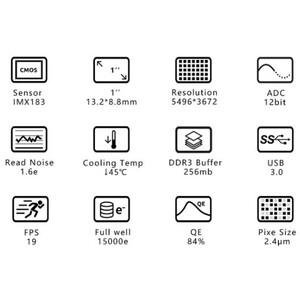

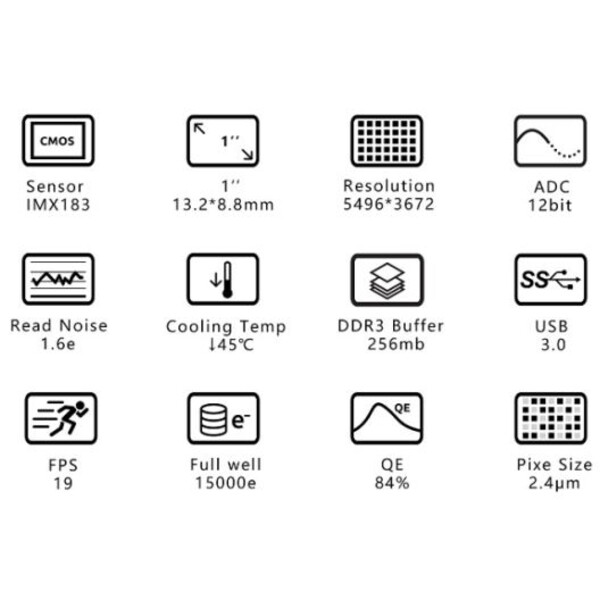

Date tehnice

Capacitate


Tip senzor
Cip CMOS (Sony IMX183)
Dimensiune chip (mm)
13,2 x 8,8
Megapixel
20,18
Dimensiune pixel
2,4
Rezolutie imagine
5496 x 3672
Adancime bit (Bit)
12
Racire
da
Interfete
USB 3.0 & USB 2.0
Conexiune (spre telescop)
1,25" & 2" & T2
Camera color
nu
Temperatura de operare
-5 - 45
Diferenta racire maxima sub temperatura camerei
45
Timp maxim de expunere (min)
33,3
Timp minim de expunere
32µ
Imagini pe secunda
19

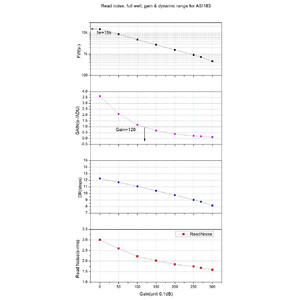

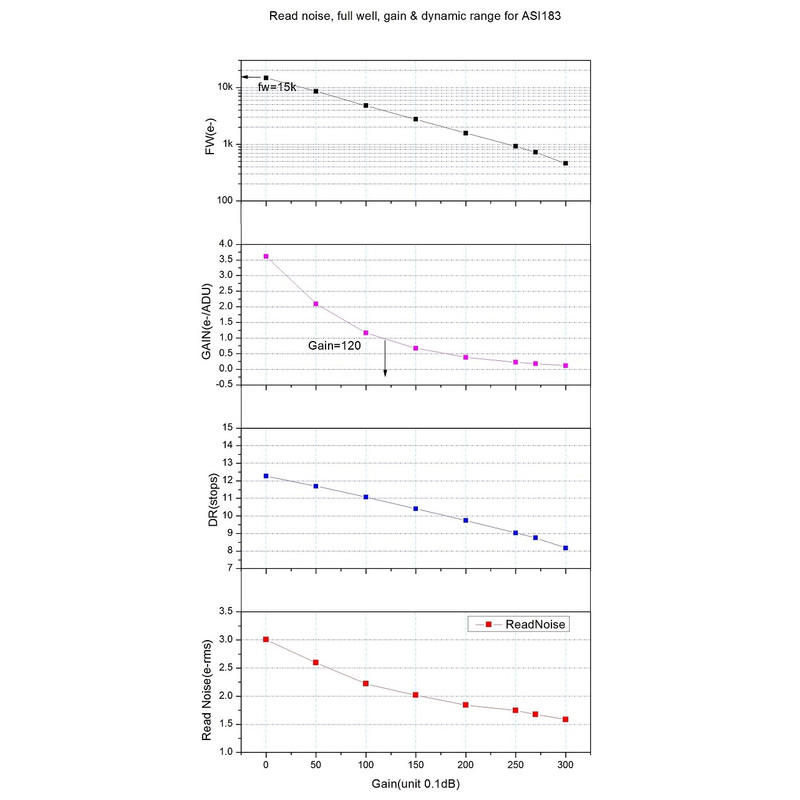

Zgomot la citire
1,6
Full Well Capacity
15.000
Distanta flansa (mm)
26,5
Surse de curent
12
Cip - Diagonala (mm)
15,9
memorie buffer (Megabyte)
256
Memorie interna
DDR3 RAM

Echipare


Roata filtre
da

General


Serii
ASI 183
Dimensiuni exterioare Lxlxh (mm)
110 x 110 x 60

Aplicaţii


AllSky, Meteore
nu
Autoguider
nu
Luna & Planetele
da
Nebuloase & Galaxii
da

Accesorii recomandate

Filtre (2)
Filtre de blocare

Omegon Filtre de blocare Filtru UV/IR CUTOFF 1.25''

$ 79,00*
Spectrometrie & Fotometrie (1)
Spectroscop

Paton Hawksley Spectroscop Star Analyser 100

$ 200,00*

*Toate preţurile includ TVA, plus costurile de transport maritim.

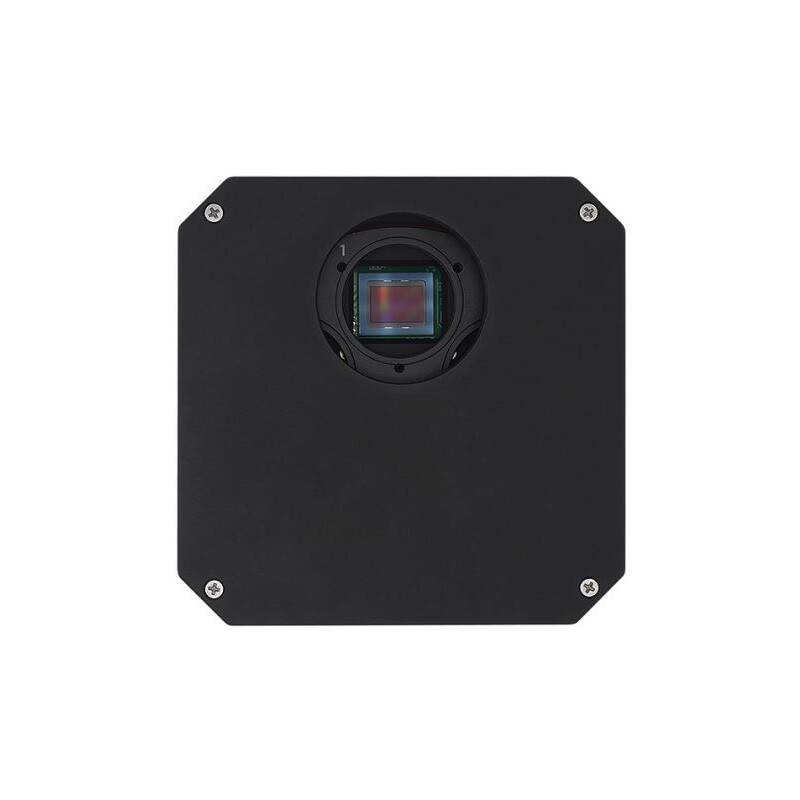

ZWO Camera ASI 183 GT Mono

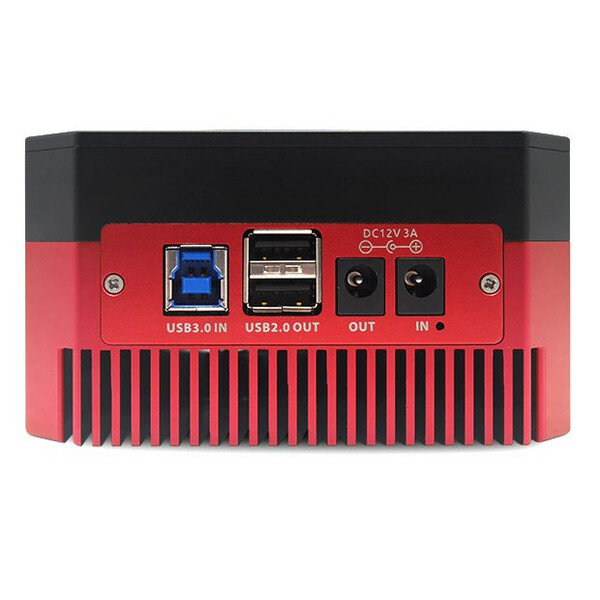

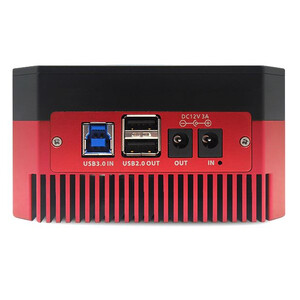

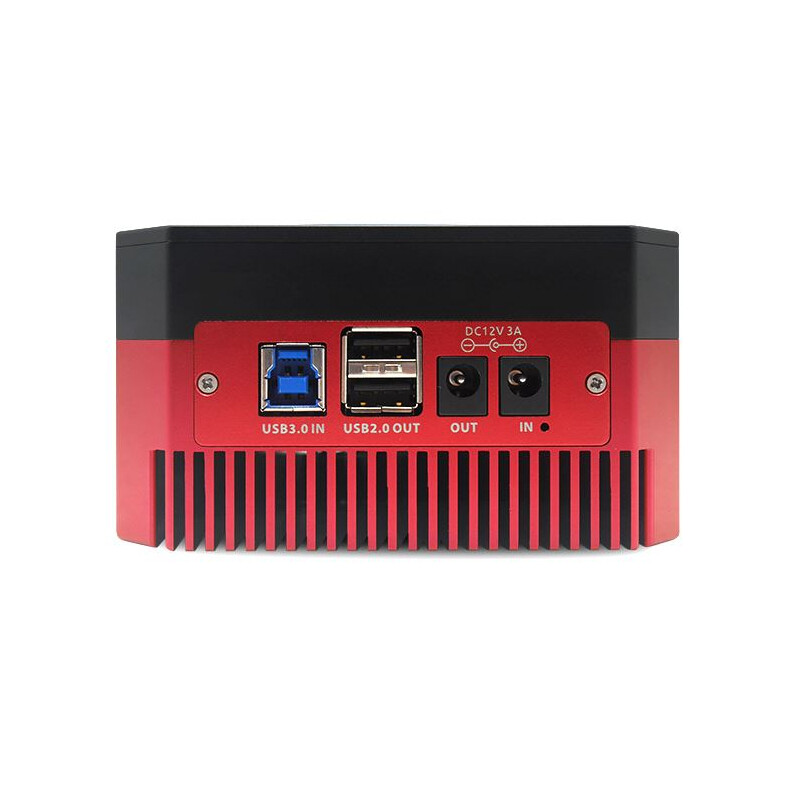

Conexiuni
ZWO Camera ASI 183 GT Mono

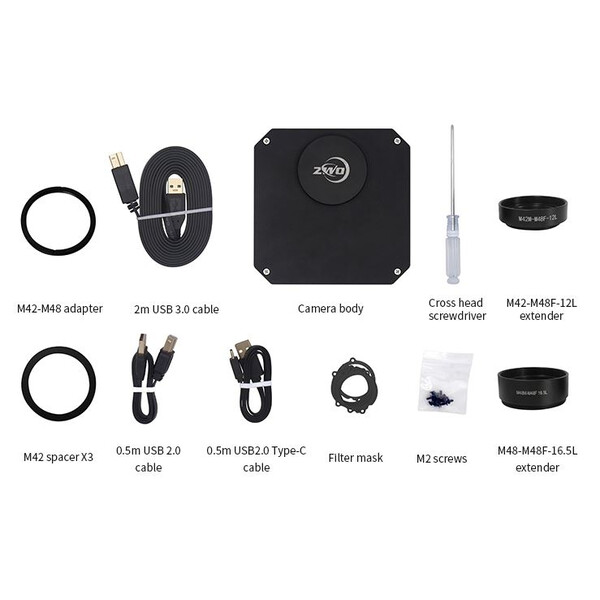

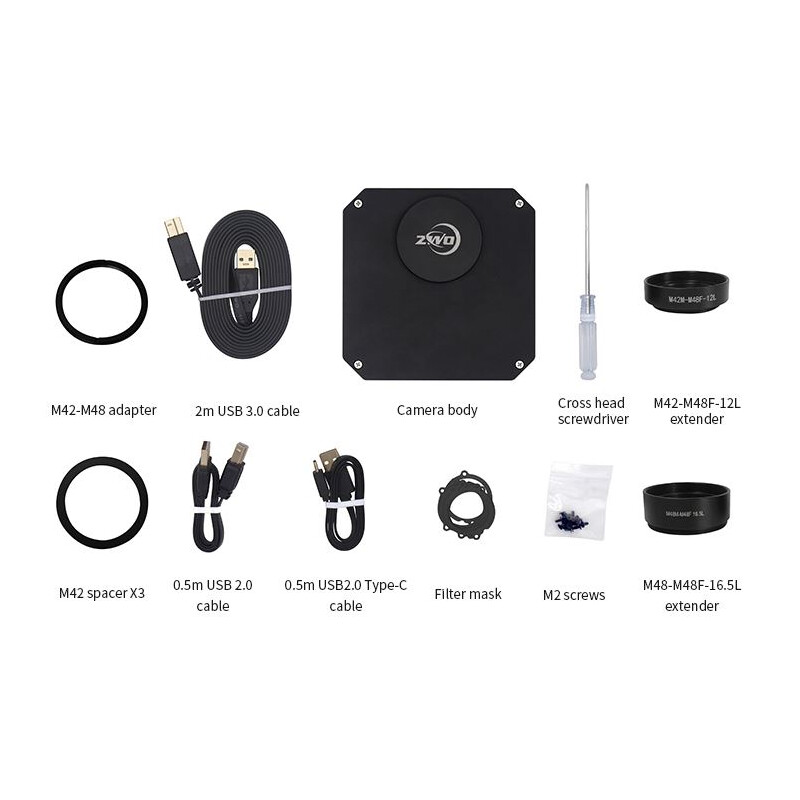

Inclus la livrare
ZWO Camera ASI 183 GT Mono

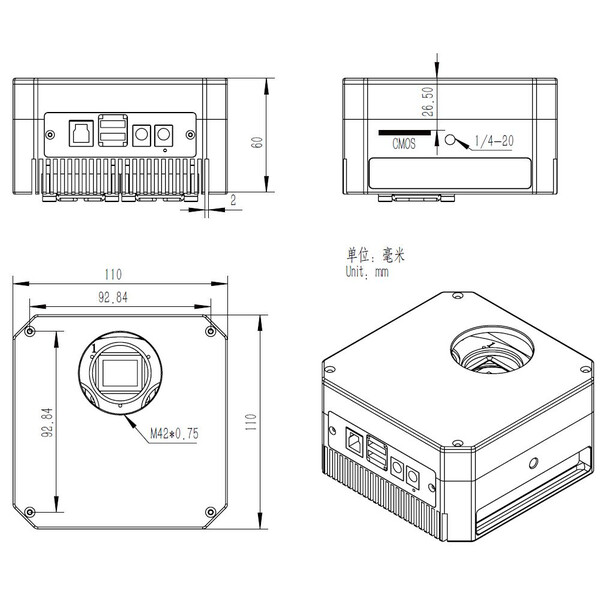

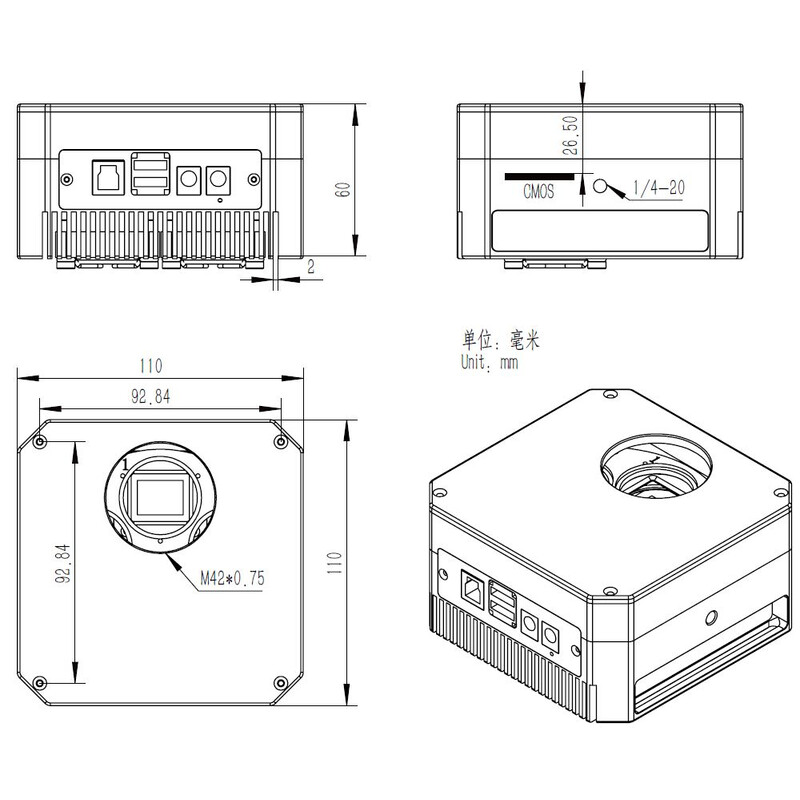

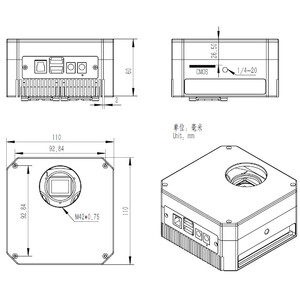

Dimensiuni
