Astrofotografie > Aparate foto > Camere Astronomice > Starlight Xpress > Trius > Starlight Xpress Camera Trius SX-56 Mono
Nr. articol: 56658

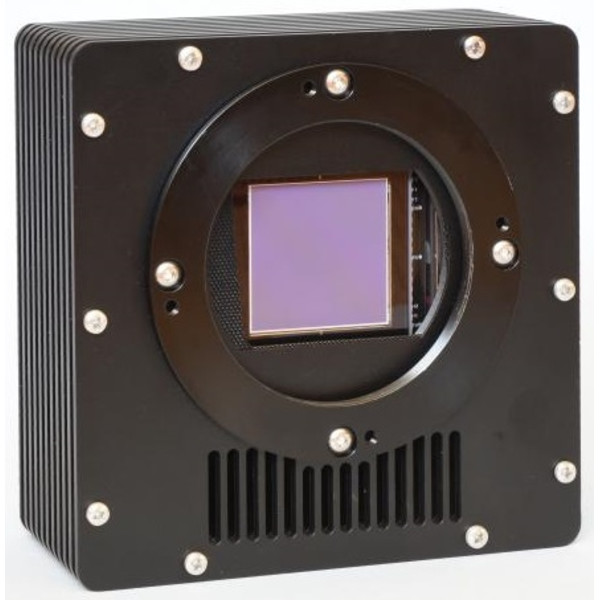

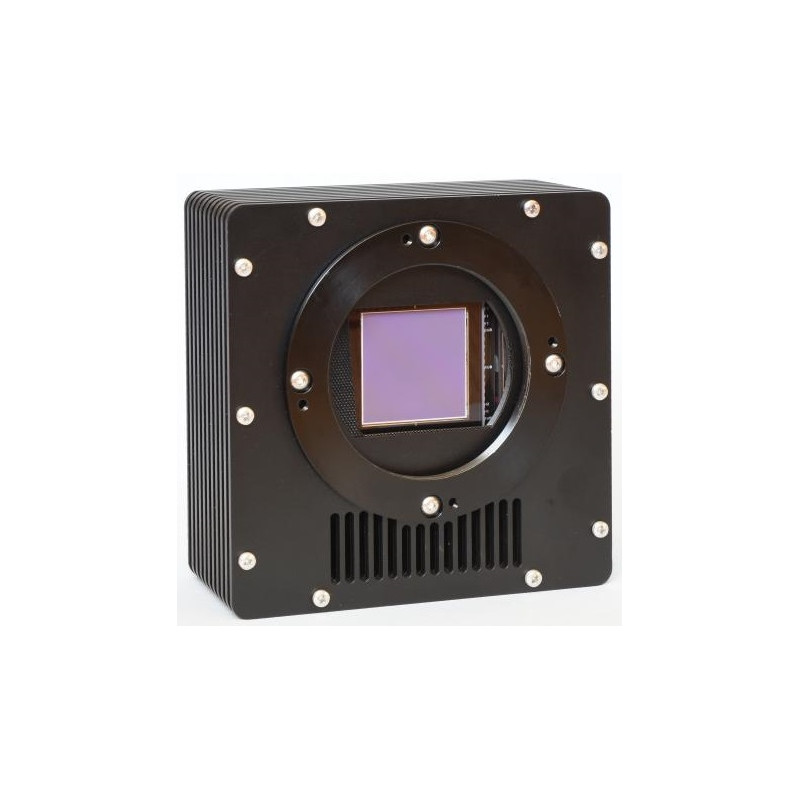

Camera Trius SX-56 Mono

$ 10.500,00 incl. TVA, plus costuri de livrare
prea scump?
termen scurt
gata de livrare in 1-2 saptamani + timp de tranzit

Descriere produs

Din pacate, descrierea acestui produs nu a fost inca tradusa in limba romana, din acest motiv veti gasi in loc o descriere in limba engleza.

The SX-46 and SX-56 Cameras by Starlight Xpress are full-frame CCD cameras with 16.7 megapixel sensors. They utilises the popular KAF-16200 ( APS-H format array of 27 x 21.6 mm, 6µm pixels) and KAF-16803 sensors (square format array of 36.8 x 36.8 mm, 9µm square pixels) respectively. The Sensor habe a peak quantum efficiency of approximately 58% at 530nm. The use of a full frame chips requires a mechanical shutter and so SX have developed a custom roller blind assembly that uses mini stepper motors to provide an extremely uniform shutter action.

These two cameras incorporate many special features that improve on some other KAF-16200 and KAF-16803 based products:

A multi-coated synthetic sapphire input window. The extremely high thermal conductivity of sapphire (about 25x better than glass) eliminates the need for a window heater, by conducting waste heat from the camera body to the entire window surface. Dewing of the window is extremely unlikely to occur, even with maximum CCD cooling.

A stepper driven roller blind shutter with extremely uniform illumination of the sensor, even at 0.1 second exposure time. The shutter is designed for robust long-term use, but is also very easy to service or replace, if necessary.

A compact, dry argon filled CCD chamber, with O ring sealing. No desiccant to regularly replace. The window is easy to clean with an air duster or soft cloth.

Built-in LED flood illuminator for RBI elimination (trapped electrons from previous images).

Fast image download time - approximately 6.5 seconds for a full 16.7 megapixel image.

A three stage Peltier cooler to give better than -45°C below ambient, with an efficient temperature controller to keep power consumption to less than 2 amps at 12v DC.

Standard 'Trius' 3 port USB 2 hub built-in.

A compact overall size of 136 mm square and 70 mm deep (+ handles). Only 1.7 Kg total weight.

With a Trius camera from Starlight Xpress you take a step into the high-end applications of astrophotography!

Date tehnice

Capacitate


Tip senzor
Cip CCD (Kodak KAF-16803)
Dimensiune chip (mm)
36,8 x 36,8
Megapixel
16,7
Dimensiune pixel
9,0
Rezolutie imagine
4096 x 4096
Racire
da
Interfete
USB 2.0
Camera color
nu
Diferenta racire maxima sub temperatura camerei
45
Timp minim de expunere
0,1
Zgomot la citire
9
Full Well Capacity
100.000
Surse de curent
12
Cip - Diagonala (mm)
52,0
Declansator
mecanic

Echipare


Roata filtre
nu

General


Greutate (g)
1700
Serii
Trius
Dimensiuni exterioare Lxlxh (cm)
7,0 x 13,6 x 13,6

Aplicaţii


AllSky, Meteore
nu
Autoguider
nu
Luna & Planetele
nu
Nebuloase & Galaxii
da

Accesorii recomandate

Filtre (2)
Filtre de blocare

Omegon Filtre de blocare Filtru UV/IR CUTOFF 1.25''

$ 79,00*
Spectrometrie & Fotometrie (1)
Spectroscop

Paton Hawksley Spectroscop Star Analyser 100

$ 203,00*
