Astrofotografie > Aparate foto > Camere Astronomice > QHY > 5-II > QHY Camera 5L-IIc Color
Nr. articol: 58161

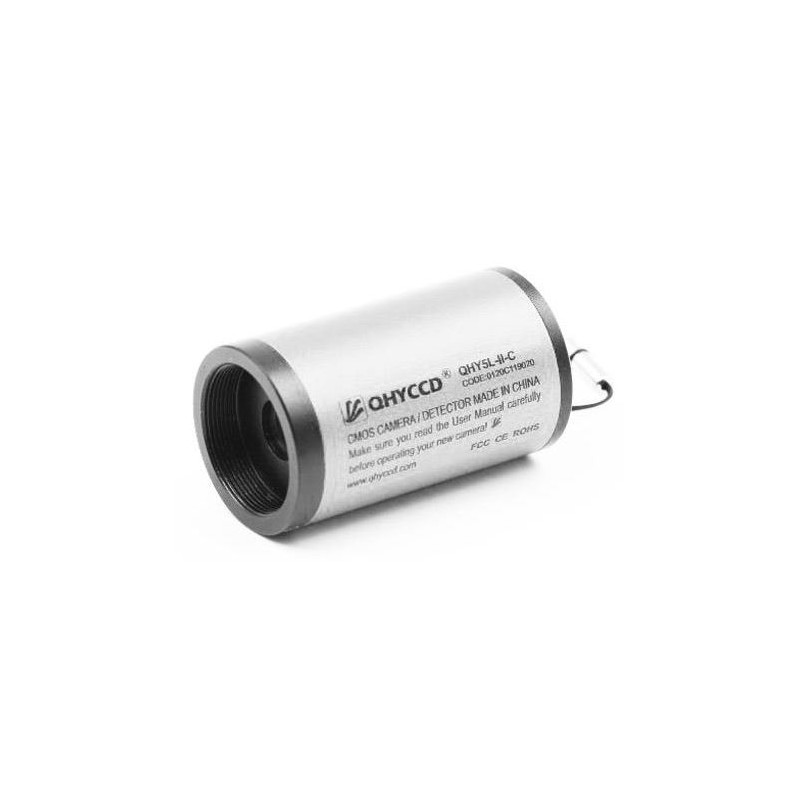

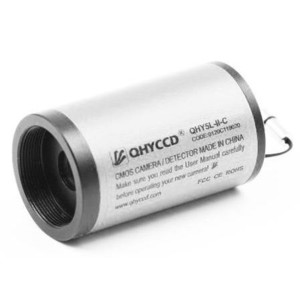

Camera 5L-IIc Color

$ 224,00 incl. TVA, plus costuri de livrare
prea scump?
termen prelungit
produsul nu mai este disponibil + timp de tranzit

Descriere produs

Din pacate, descrierea acestui produs nu a fost inca tradusa in limba romana, din acest motiv veti gasi in loc o descriere in limba engleza.

QHY5-II Series - USB 2.0

Compact, High Speed, High Sensitivity Planetary / Guiding Cameras

After the success of the QHY5 Guiding Camera (2006-2012), QHYCCD released its next-generation QHY5-II Planetary/Guiding Cameras. The QHY5-II series improves the data-transfer speed up to the maximum USB2.0 data rate of 39MB/sec, 30FPS@1280x1024 or 1280x960 on modern computers and hundreds of frames per second in certain ROI modes.

QHY5-II series cameras fit in a standard 1.25-inch eyepiece holder and have an adjustable location ring for confocality with an eyepiece. They are ideal for use as low-weight autoguiders. QHY5-II series cameras come in very small but powerful packages! The improved thermal design allows the heat generated by the CMOS sensor to be transferred externally to the telescope's eyepiece tube.

QHY5-II series cameras are supplied with both Native WDM and Broadcast WDM drivers, which means you can use them as an ultra-high-performance web-cam for video capture or live video broadcasting. Show real-time astronomy images and events to your friends! QHY5-II series cameras can also be connected with the QHY InterCam stand-alone camera.

Date tehnice

Capacitate


Tip senzor
Cip CMOS (Micron MT9M034)
Megapixel
1,2
Rezolutie imagine
1280 x 960
Dimensiune pixel
3,75
Interfete
USB 2.0
Adancime bit (Bit)
8
Racire
nu
Conexiune (spre telescop)
1,25"
Camera color
da
Timp maxim de expunere (min)
1,65
Timp minim de expunere
0,00002
Imagini pe secunda
30
Sisteme de operare suportate
Windows XP (SP2), Vista, Windows 7, 8, 10
Dimensiune chip (mm)
4,83 x 3,63
Distanta flansa (mm)
10,4
Eficienta cuantica
52% @300nm, 62% @500nm, 58% @656nm
Cip - Diagonala (mm)
6

Extras


Interfata Autoguider
da (RJ-12)
Filet filtru
da

Echipare


Roata filtre
nu

General


Greutate (g)
45
Diametru (mm)
31,7
Inaltime (mm)
52
Material exterior
Aluminiu
Serii
5-II

Aplicaţii


AllSky, Meteore
nu
Autoguider
da
Luna & Planetele
da
Nebuloase & Galaxii
nu
