Microscoape > Accesorii microscopie > Aparate foto > Aparate foto > ToupTek > XCAMLITE4K > ToupTek Camera ToupCam XCAMLITE4K 8MPA, color, CMOS, 1/1.8", 2 µm, 30/20 fps, 8 MP, HDMI/USB
Nr. articol: 77262

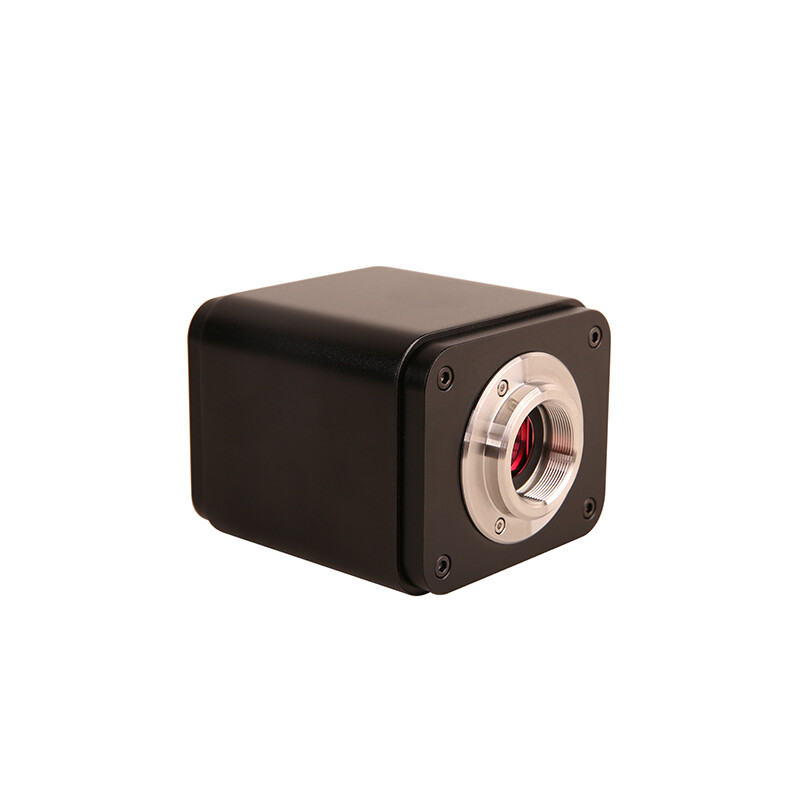

Camera ToupCam XCAMLITE4K 8MPA, color, CMOS, 1/1.8", 2 µm, 30/20 fps, 8 MP, HDMI/USB

termen scurt
gata de livrare in 3-5 saptamani + timp de tranzit

Nu este posibilă livrarea înainte de Crăciun
Afișați alternative
Retur posibil până la 31.1.2025!


Descriere produs

Mai multe despre această serie XCAMLITE4K...

Din pacate, descrierea acestui produs nu a fost inca tradusa in limba romana, din acest motiv veti gasi in loc o descriere in limba engleza.

In brief:

  • 8 MP colour camera with Sony Exmor CMOS sensor
  • HDMI, USB video outputs (software included)
  • Integrated XCAMView for camera control (HDMI), can be used as a stand-alone system (no PC required)
  • High sensitivity, low noise and no smearing effects due to the use of R, G and B primary colour mosaic filters
  • Sturdy and valuable aluminium alloy housing

XCAMLITE4K cameras

The XCAMLITE4K series cameras are the next-generation live-view imaging-systems with 4K resolution (Video) at 30 FPS. It comes with Sony Exmor CMOS sensor with high sensitivity, low dark current and no smear achieved through the adoption of R, G and B primary color mosaic filters. The cameras are suitable for medical examinations as well as for teaching (online teaching, demonstration, academic exchange) or industrial purposes.

A standard C-mount interface ensures maximum compatibility with various microscope systems. The cameras can be used as a stand-alone system without a PC in conjunction with an HDMI monitor or TV (stand-alone system) or streamed live to a PC via USB for image and video recording.

The compatibility leaves nothing to be desired. The camera can be used with Windows, Linux, macOS as well as on mobile devices with iOS and Android. Furthermore, it is compatible with C/C++, C#VB.Net, Python, Java, DirectShow, Twain etc. for individualisation and tuning for reproducible measurement results.

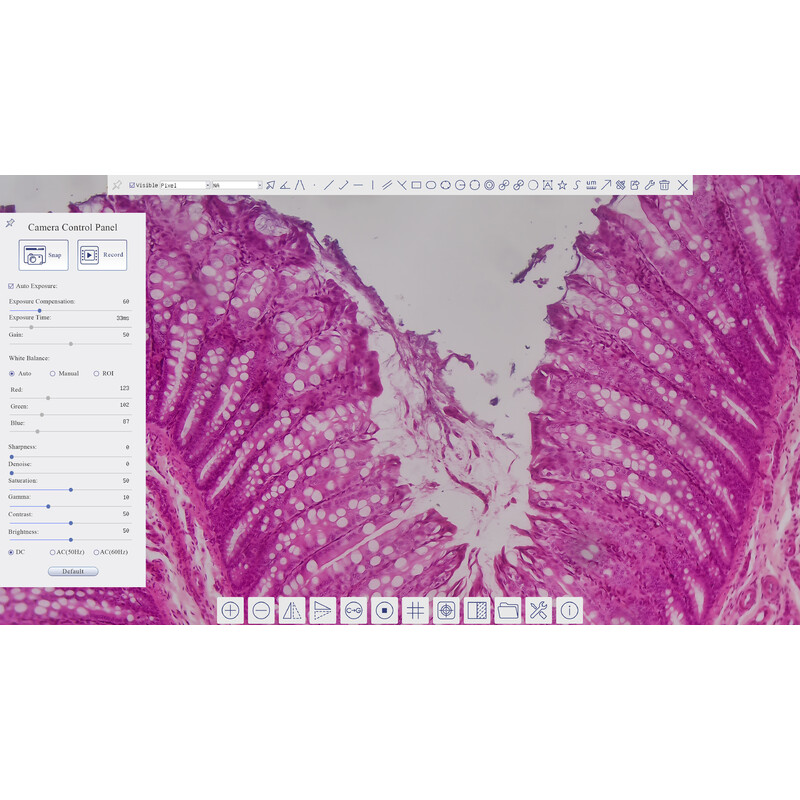

The 8MPA/B can be connected to a screen both via the HDMI connection for use as a stand-alone system. No PC is necessary. The mouse is connected directly to the camera. In sample image 1 you can see what the user interface of the stand-alone software looks like.

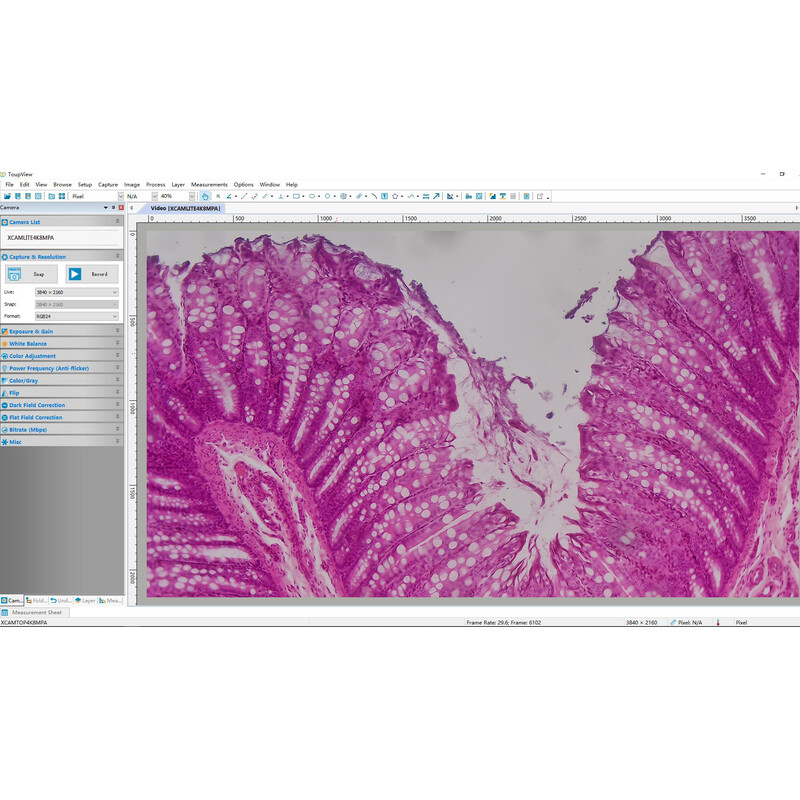

The second connection option is USB. Here the camera is connected to a computer via USB and can be operated via the ToupView software. This user interface can be seen in example image 2.

Scope of delivery:

camera, power adapter, USB mouse, HDMI 2.0 cable, USB 3.0 cable, CD (driver & software)

Date tehnice

Capacitate


Megapixel
8 MP

Camera


Dimensiune pixel
2
Rezolutie imagine
3840x2160
Rezolutie video
3840x2160
este necesar un adaptor
0.5x, 0.55x, 0.6x c-mount
numar de cadre (cadre pe secunda)
30
Transmiterea imaginii
HDMI
Dimensiune chip (″)
1/1.8
Capacitate de stocare extensibila
da
Camera color
da
Declansator
Rolling Shutter
Megapixel
8
răcire
nu
Interfata
HDMI, USB, SD-Karte
senzor
CMOS (Sony Exmor)
Software
ToupView/ToupLite
Sisteme de operare suportate
Windows, Linux, macOS, iOS, Android
Functie video
da
Sensibilitate (mV/s)
505

General


Latime (mm)
88
Inaltime (mm)
78
Lungime (mm)
65
Serii
XCAMLITE4K

Domeniul de aplicare


Medicină
da
Hobby
da
Industrie
da
Educatie
da

Alte produse


numar produs
XCAMLITE4K8MPA

Accesorii recomandate

Microscoape > Accesorii microscopie (3)

ToupTek stage micrometer, lines (X) 1mm/100 Div.x0.01mm

$ 25,00*

*Toate preţurile includ TVA, plus costurile de transport maritim.

ToupTek Camera ToupCam XCAMLITE4K 8MPA, color, CMOS, 1/1.8", 2 µm, 30/20 fps, 8 MP, HDMI/USB

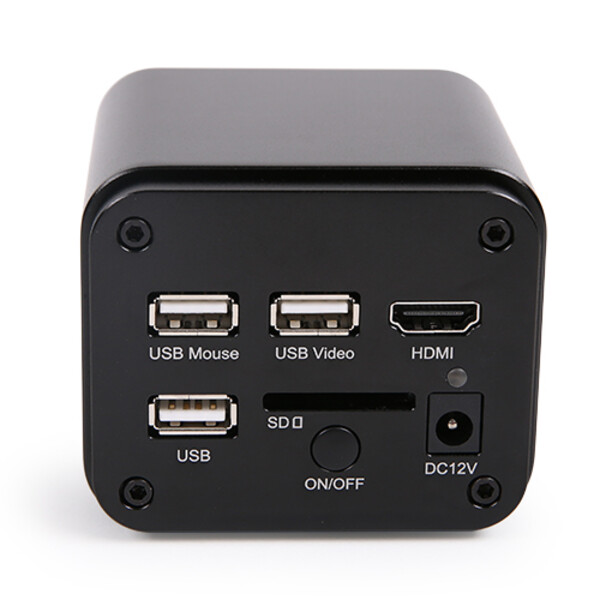

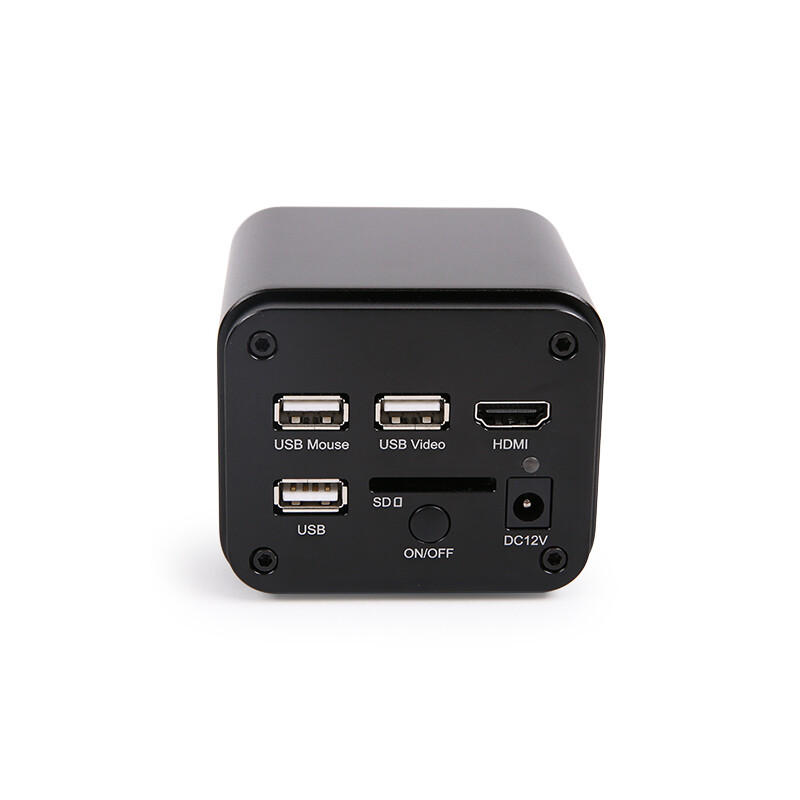

Conexiuni
ToupTek Camera ToupCam XCAMLITE4K 8MPA, color, CMOS, 1/1.8", 2 µm, 30/20 fps, 8 MP, HDMI/USB
Exemplu imagine 1
ToupTek Camera ToupCam XCAMLITE4K 8MPA, color, CMOS, 1/1.8", 2 µm, 30/20 fps, 8 MP, HDMI/USB
Imagine exemplu 2
