C-WFR
WFR camera, 5 MP CMOS, Wi-Fi, multi-plug
C-WF
C-WF camera, 5 MP CMOS, Wi-Fi, multi-plug
- Ideal for interactive, flexible and dynamic learning processes
- Simple, intuitive operation with powerful software
- Universal connection to any microscope brand
- Direct eyepiece & trino port connection
- 1 MP images
- Wi-Fi interface
- Direct Wi-Fi connection (no router is required)
- Connectable to PC, smartphones, tablets and any other device
- Supported by any device (PC, tablet or smartphone)
- Image and video capturing function when used in Wi-Fi mode
- Reliable colour fidelity
- C-mount projection lens and rings included
- Downloadable, free of charge software
- OPTIKA ProView & LiteView for Windows
- OPTIKA LiteView for Mac OS or Linux”

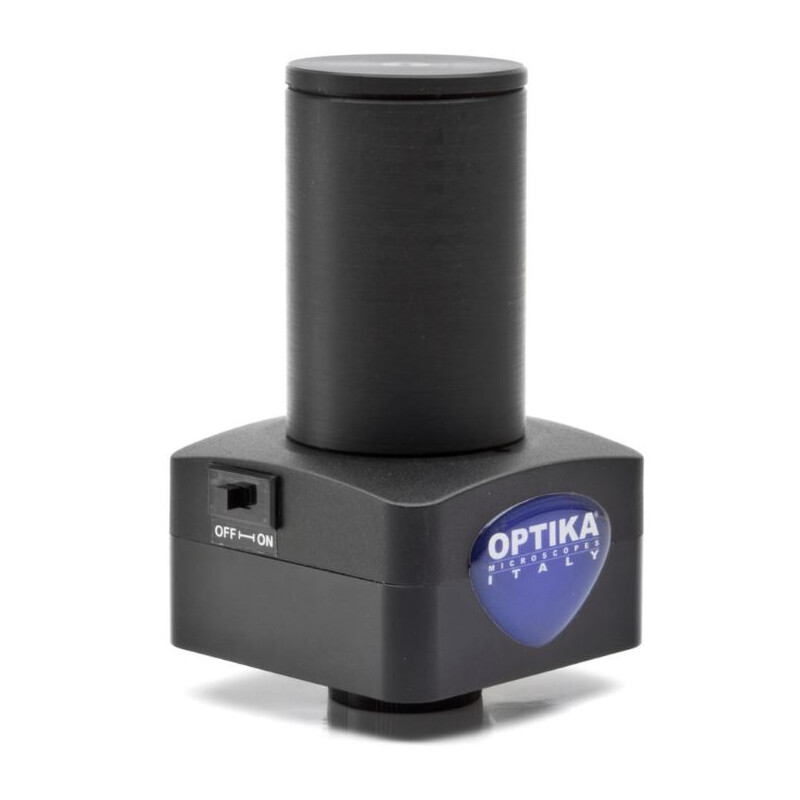

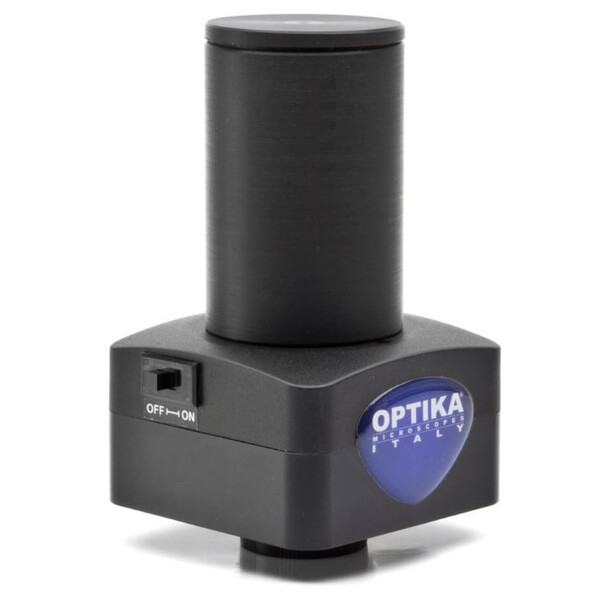

WiFi camera, 5MP CMOS, rechargeable battery, multi-plug
- WiFi output Yes
- C-Mount Yes
- Dimensions (mm) 67 x 67 x 46
- Weight (kg) 0.44
- Camera resolution (n° of pixels: W x H) 2592x1944
- Color / Monochrome Color
- Sensor Size 1/2.5"
- Sensor Technology CMOS
- Sensor Type SONY EXMOR
- Image Format 16/9
- Pixel Size (mm) 2.2x2.2
- Acquisition technology Rolling shutter
- Sensitivity 1V/lux-sec
- Signal/Noise Ratio (DB) 43
- Dynamic range (DB) 61
- ADC conversion 8 Bit - 12Bit
- Color Depth 8 Bit
- Exposure time Auto
- Binning 2x2
- IR filter Yes
- IR filter range (nm) 380-650 (IR CUT)
- WiFi resolution (MP) 1
- WiFi Frame rate full resolution (fps) 10@1280x720
- WiFi Speed 802.11n 150Mbps
- WiFi Signal From the camera
- WiFi Signal ready About 10 seconds after turning on
- Max Users 3
- Rechargeable batteries Yes
- Battery type Ni-MH, 4x (AA-size)
- Working time with batteries (hours) 6
- Charging time of batteries (hours) 4
- Type External
- Connector USB
- Power plug type Multiplug (EU, UK, US)
- Input voltage 100/240 Vac, 50/60Hz
- Output voltage 5 Vdc 500mA
- WiFi
- Camera Power Supply
- General specifications
- Sensor OPTIKA MICROSCOPES ITALY
- www.optikamicroscopes.com - [email protected]
- Optical adapter (for 23mm eyepiece tube) 0.5x
- Diameter of adapter ring (mm) 30
- Diameter of adapter ring (mm) 30.5
- Calibration slide Yes
- Working Temperature -10°C up to +50°C
- Storage Temperature -20°C up to +60°C
- Relative Humidity 30% to 80%
- Storage Humidity 10% to 60%
- OS Windows 7
- OS Windows 8
- OS Windows 10 (32Bit)
- OS Windows 10 (64Bit)
- OS Osx (MAC Osx) starting from 10.7.5 (only LITEVIEW)
- OS Linux (only LITEVIEW)
- PC SW PROVIEW
- PC SW LITEVIEW
- PC CPU: Intel Core2 - 2.8GHz or higher
- PC RAM: 2GB or more
