Microscoape > Accesorii microscopie > Aparate foto > Aparate foto > Euromex > CMEX-Pro > Euromex Camera CMEX-18 Pro, CMOS, 1/2.3 ", USB 3.0, 18.0 MP
Nr. articol: 56045

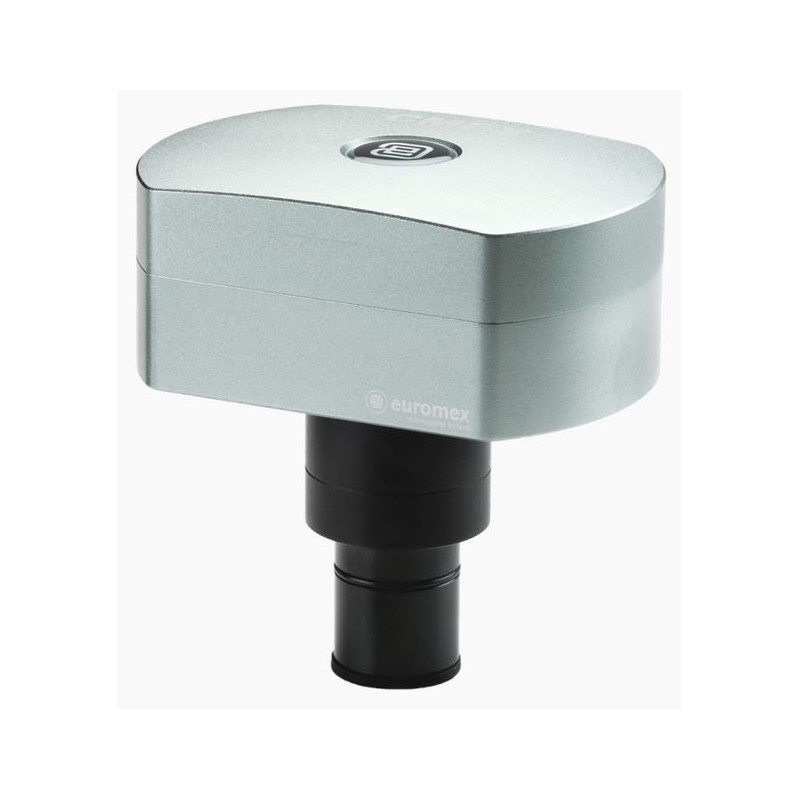

Camera CMEX-18 Pro, CMOS, 1/2.3 ", USB 3.0, 18.0 MP

$ 880,00 incl. TVA, plus costuri de livrare
prea scump?
termen scurt
gata de livrare in 3-5 saptamani + timp de tranzit

Descriere produs

Din pacate, descrierea acestui produs nu a fost inca tradusa in limba romana, din acest motiv veti gasi in loc o descriere in limba engleza.

CMEX-3/5/10/18 Pro

The high speed USB-3 cameras with ImageFocus Alpha capture and analysis software are the perfect solutions for today’s educational, laboratory and industrial microscopy needs. The cameras are suitable for Life Science and Material Science microscopes as well as stereo microscopes CMEX-3 Pro, CMEX-5 Pro, CMEX-10 Pro and CMEX-18 Pro USB 3.0 high speed camera The CMEX-3 Pro, CMEX-5 Pro, CMEX-10 Pro and CMEX-18 Pro cameras are equipped with relatively 3.1, 5.1, 10 or 18 MP CMOS sensors with 12 bits grayscale conversion and a 24 bits color rendering. This cameras are equipped with a USB- 3 data interface enabling fast frame rates (up to 101 f/s) and are supplied with ImageFocus Alpha software Besides capturing of images and videos, the software allows measurements on still and live images and to perform annotations on captured images. Compatible with Windows XP, Vista, 7, 8 and 10, both 32 and 64 bits configurations. A 2 GB RAM 2.8 GHz computer and 17 inch display is recommended as minimum requirement

TECHNICAL SPECIFICATIONS CMEX-18 PRO (DC.18000-Pro)

  • Sensor: CMOS 1/2.3 inch
  • Pixels: 4912 x 3684 pixels, 18.0 MP
  • Scan mode: progressive, rolling shutter
  • Pixel size: 1.25 µm x 1.25 µm
  • Filter: RGB
  • Mount: C-mount
  • Max fps:
  • Up to 8 frames per second (4912 x 3684 pixels)
  • Up to 20 frames per second (2546 x 1842 pixels)
  • Up to 34 frames per second (1228 x 922 pixels)
  • Exposure: automatic or manual
  • White balance: automatic/manual
  • Dynamic range: 65 db
  • S/N max: 42 db
  • Data interface: USB 3.0 high speed 80 Mb/s
  • Operation: 0 – 50°C, 30-80 % humidity
  • Storage temperature: -20 to 60°Celsius
  • Power supply: 5V over PC USB port
  • Housing: integrated CNC aluminum alloy

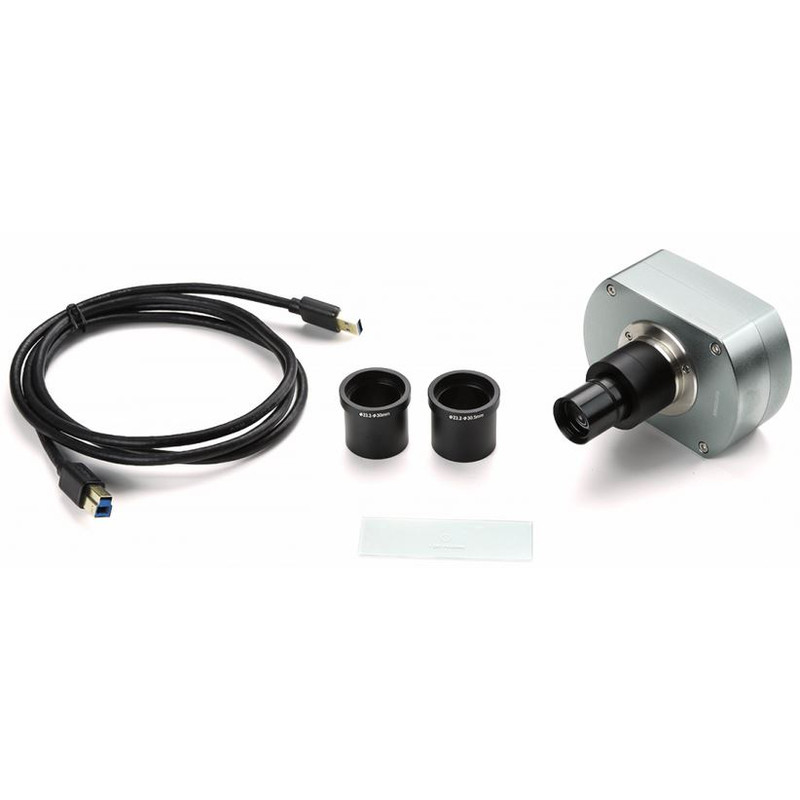

  • Supplied with 0.5x objective with C-mount, USB 3 cable, 30 and 30.5 mm adapters for stereomicroscopes, 76 x 24 mm calibration slide (1mm/100), CD ROM with ImageFocus Alpha software, carton box
  • Software: supplied with ImageFocus Alpha capture and measuring software
  • PC requirements: Compatible with Intel Core 2, 2.8 GHZ or higher, 2GB, USB-3 high speed withWin XP (32bit), Vista/ 7/ 8/ 10 (32 and 64 bit configurations)
  • Product number: DC.18000-Pro

Date tehnice

Capacitate


Dimensiune chip (mm)
1/2.3"
Megapixel
18
Rezolutie imagine
4912 x3684
Rezolutie video
2546 x 3684
Memorie interna (Megabyte)
-
Iesire TV
da
Interfata
USB 3.0
Functie video
da

Camera


Megapixel
18
răcire
nu
Camera color
da
Rezolutie imagine
4912x3684
Dimensiune pixel
1,25
Transmiterea imaginii
USB 3.0
senzor
CMOS
Dimensiune chip (″)
1/2.3
este necesar un adaptor
0.5x
Software
ImageFocus Alpha
numar de cadre (cadre pe secunda)
32
Declansator
Rolling Shutter
Timp minim de expunere (ms)
1
Timp maxim de expunere (ms)
2000
Sensibilitate (mV/s)
1.3 V/lux sec
Sisteme de operare suportate
Win 7/8/10 Mac OS

General


Serii
CMEX-Pro

Alte produse


numar produs
DC.18000-Pro
Euromex Camera CMEX-18 Pro, CMOS, 1/2.3 ", USB 3.0, 18.0 MP
Euromex Camera CMEX-18 Pro, CMOS, 1/2.3 ", USB 3.0, 18.0 MP
