Microscoape > Microscoape > Microscop vertical > Microscoape cu câmp luminat > Motic > Panthera > Motic Microscop Panthera C2, Trinokular (Ohne 100X), infinity, plan, achro, 40x-400x, Halogen/LED
Nr. articol: 71284

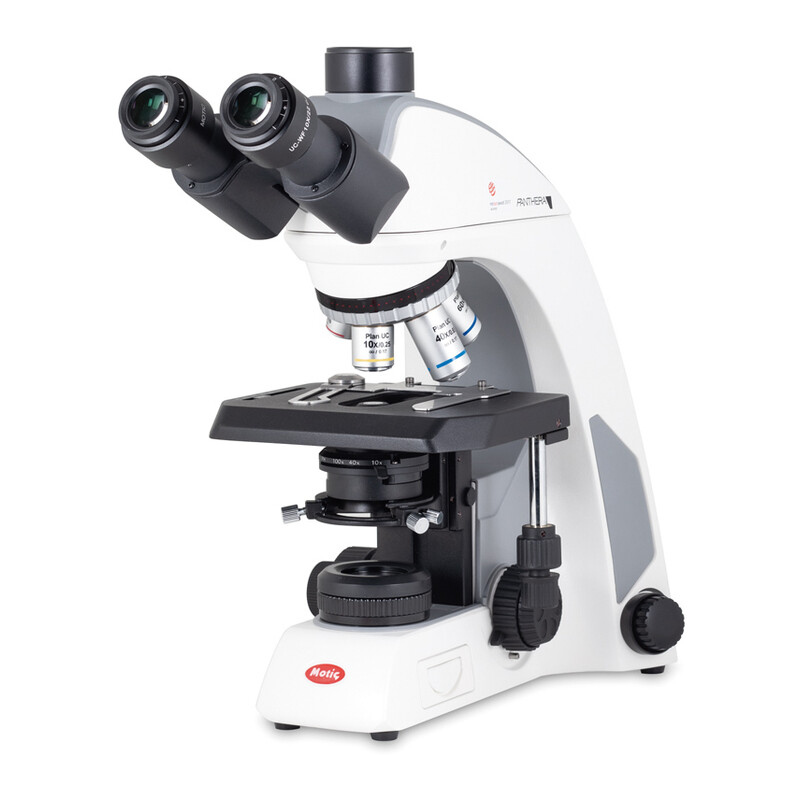

Microscop Panthera C2, Trinokular (Ohne 100X), infinity, plan, achro, 40x-400x, Halogen/LED

$ 2.280,00 incl. TVA, plus costuri de livrare
prea scump?
termen scurt
gata de livrare in 1-2 saptamani + timp de tranzit

Descriere produs

Mai multe despre această serie Panthera...

Din pacate, descrierea acestui produs nu a fost inca tradusa in limba romana, din acest motiv veti gasi in loc o descriere in limba engleza.

Panthera C2 range

The Panthera C2 and its selection of specific optics, is your solution when working with coloured sections, native smears, fine needle biopsies, or blood smears, both with and without a protective cover slip. The new ultra contrast (UC) objectives, with additional glass elements, achieve a visual field of 22mm and work perfectly together with neutral eyepieces.

Thanks to CCIS© (Colour Corrected Infinity Optical System), a fully corrected, digitally accessible intermediate image is guaranteed. This produces the best results in terms of colour fidelity and contrast.

Powerful microscope hardware, illumination and handling.

Spezifications Panthera C wothout 400x objective

  • Optical system: Colour Corrected Infinity Optical System (CCIS®)
  • Observation system: Binocular/Trinocular Siedentopf type 25° inclined, 360º swiveling
  • Interpupillary distance (mm): 48-75mm
  • Trinocular light split: 50/50 fixed

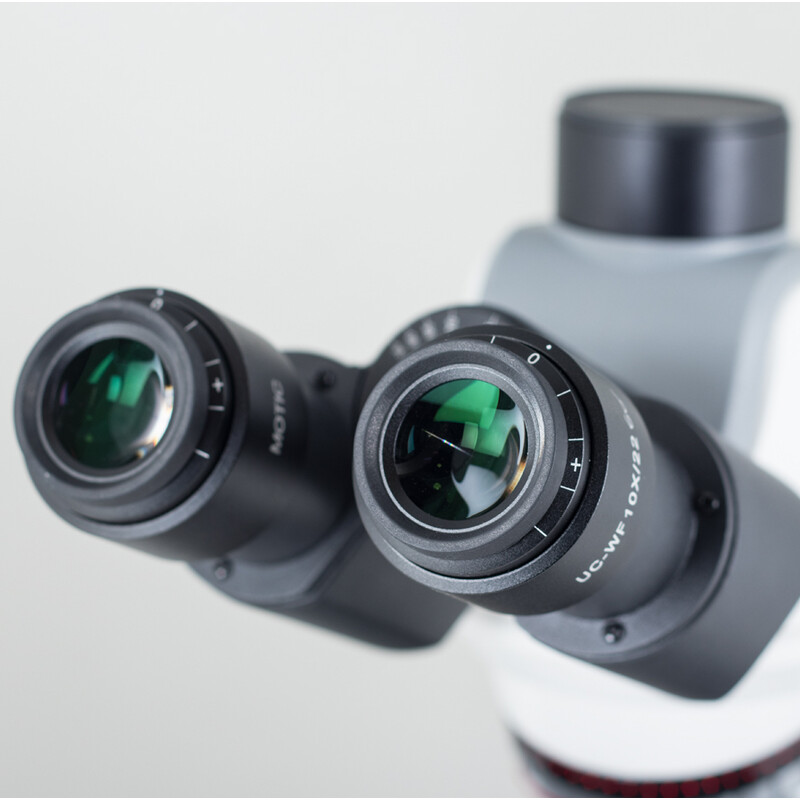

  • Eyepieces: UC-WF10X/22
  • Eyepieces diopter adjustment: +/- 4 dpt
  • Nosepiece: Reversed quintuple, encoded

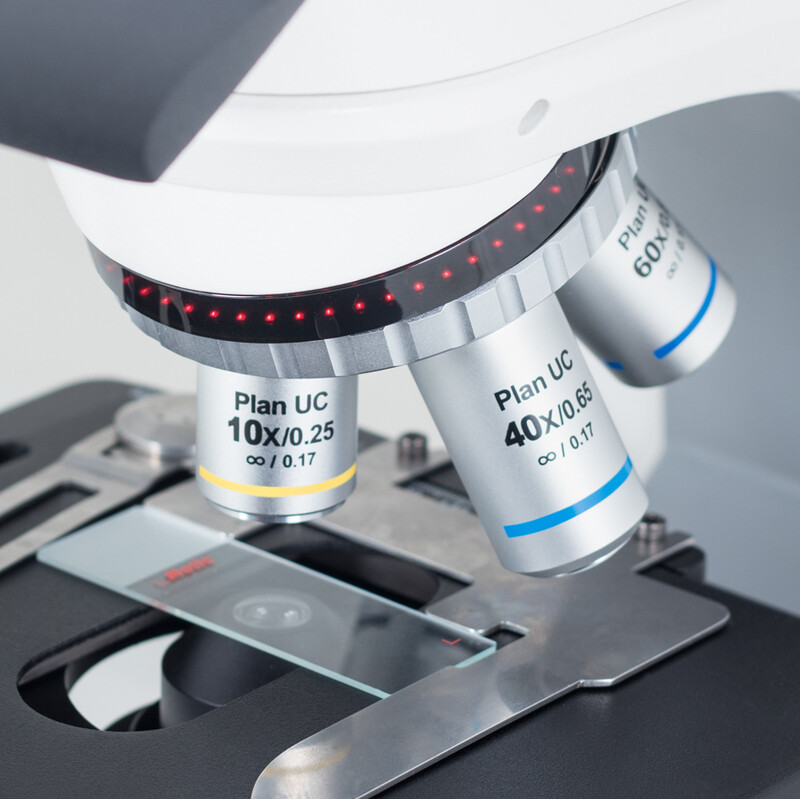

  • Objectives Plan UC Achromat (Pb free): 4X/0.1 (WD 30.5mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.6mm)
  • Objective mounting thread: W 4/5" x 1/36" (RMS standard)

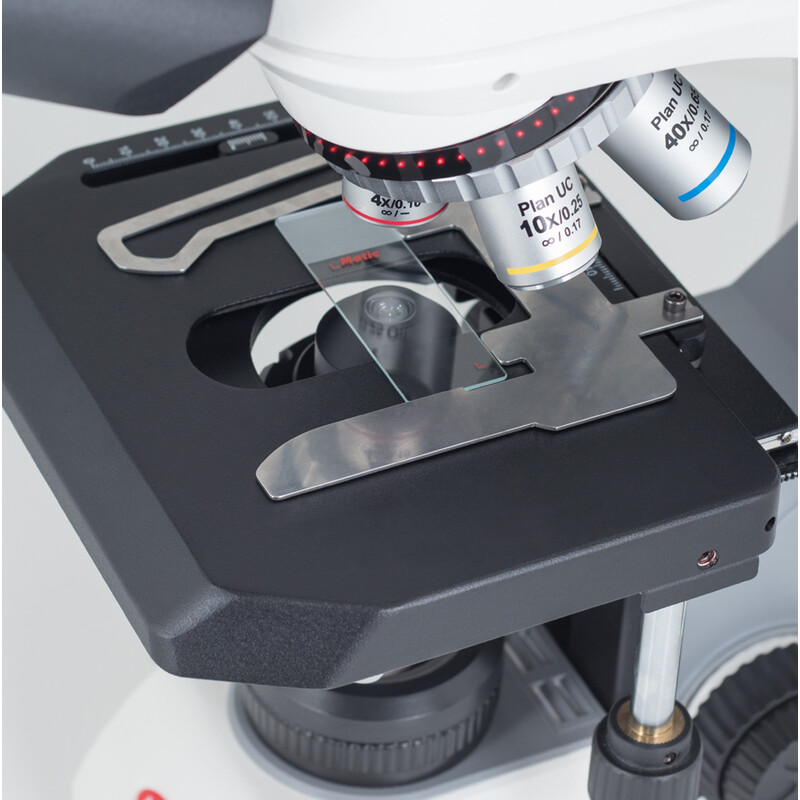

  • Stage: Compact and rackless stage
  • Stage size (mm): 185x145
  • Travel range (mm): 75x50
  • Upper limit stop: Preset; adjustable

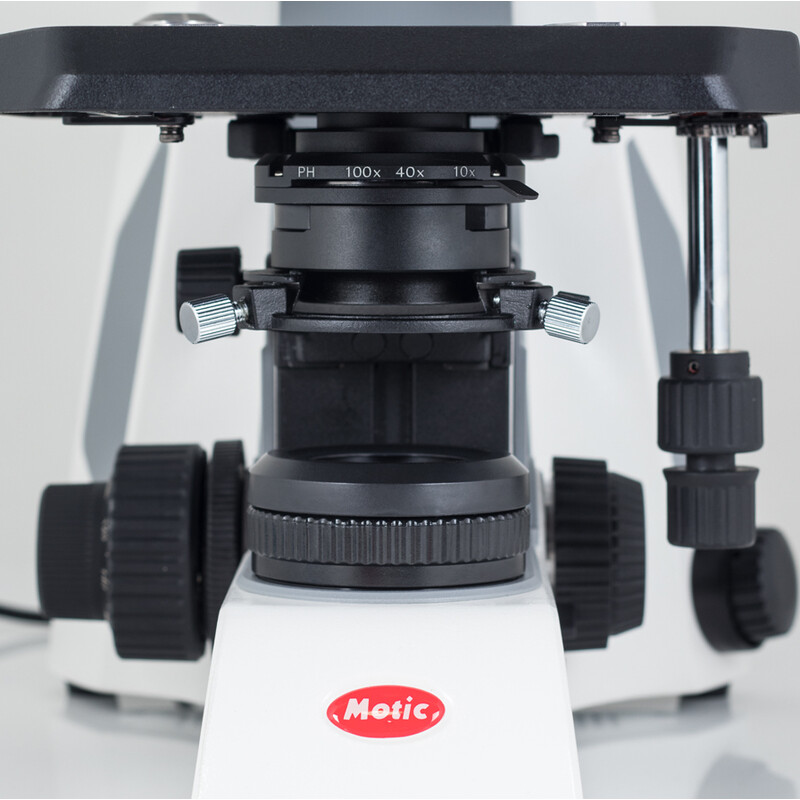

  • Condenser: N.A. 0.90 / 1.25 Abbe condenser with slider slot
  • Focus mechanism: Coaxial; tension adjustment
  • Minimum fine focus precision (µm): 2
  • Z-axis movement (mm): 25
  • Filter holder: On top of the illuminator with fixing cap
  • Illumination type: 3W LED module / 30W Halogen module, Koehler illumination
  • Illumination interchangeability: Halogen/LED and LED color temperature interchangeability
  • Connectivity: USB for external power
  • Power supply: 110-240V (CE)
  • Dimensions (mm): 282x210x394 (Binocular), 282x210x396 (Trinocular)
  • Contrast techniques: Yes
  • Brightfield: Slider & Turret
  • Phase contrast: Yes, optional
  • Simple Polarization: Slider & Turret, optional
  • Simple Darkfield: Yes - Intermediate module optional
  • LED Fluorescence: Yes, optional

Date tehnice

Optica


Putere de marire
400 (40, 100, 400)
Ocular
10/22 (UC-WF 10x/22mm)
Tip obiectiv
Plan Acromat (CCIS)
Condensator
Condensor Abbe- (N.A. 1,25), cu sertar, centrare si diafragma iris
Iluminare
Lumina transmitita
Tip lampa
Halogen (Iluminare halogen si LED interschimbabile)
Sistem optic
infinit
Obiectiv 1
4x/0.10 w.d. 30.5 mm
Obiectiv 2
10x/0.25 w.d.17.4 mm
obiectiv 3
40x/6.65/S w.d. 0.6 mm

Capacitate


Reglaj intensitate luminoasa
da
Surse de curent
Adaptor retea 100-240V, VDE-stecher (CE)
camp luminat
da

Mecanica


Tip constructiv
Trinocular
Focusare
Actionare fina si rapida
Masa specimene
Masa X-Y (185 x 145 mm)
Revolver
5

Extras


Geanta de protectie anti praf
da
Suport filtru
da
Ocular de camp larg
da (10x/22)

General


Culoare
gri/negru
Greutate (g)
8400
Lungime (mm)
396
Inaltime (mm)
282
Latime (mm)
210
Serii
Panthera

Domeniul de aplicare


Medicină
da
Industrie
da

Aplicaţii


Contrast interferenta
-
Metalurgie
-
Medicina veterinara
da
Universitate
da
Știința materialelor
da
