Camera MikroCamII 5MP HIS, color, CMOS, 2/3'', 3.45 µm, USB3

The BRESSER MikroCamII 5MP HIS with the very light- sensitive and low-noise Sony(R) IMX264 sensor is also ideal for difficult lighting conditions. The camera works with a global shutter . As a result, there are no distortions in objects that are moving. If there is enough light, even fast movements can be practically stopped thanks to the extremely short exposure time of up to 1/50,000 seconds .

The MikroCam Lab II software offers a variety of different functions, such as measurement in the live image (calibration preparation required), creation of a mosaic image, focus stacking (for increased depth of field). Furthermore, almost all automatic functions (exposure time, sensitivity, white balance, etc.) can also be set manually.

The functions: mosaic and focus stacking (EDF) can be generated directly from the live image. This can save a lot of time.
Even if you're not a pro, you'll get quick success. In order to be able to use the mosaic function optimally, a cross table is required.

Due to the large sensor, the camera is not optimally suited for every microscope. This can possibly lead to edge shadowing (vignetting). In most cases, this shadowing is prevented by a 0.75x lens (item no. 5914007), which is screwed into the camera.

This camera is not designed for the trinocular tube of the ETD-201. With this microscope, only part of the image field can be used.

PROPERTIES

• Modern Sony(R) IMX264 sensor 8.45mm x 7.07mm (2/3'')
• 5MP (2448x2048)
• Global shutter for distortion-free movements
• Many software functions, such as measurement, focus stacking (for overlaying multiple images, for increased depth of field), mosaic (for displaying larger image fields)
• Image and video recording, including time-lapse function
• High-quality processed metal housing
• 1/4'' tripod thread eg for a photo tripod
• Good compatibility with various microscopes
• C-mount thread: for easy adaptability, also suitable for C-mount lenses
• High speed USB 3.0 port

SYSTEM REQUIREMENTS

• Windows 8.1, 10 or 11
• Intel i3, i5, i7 or i9 processor from 6th generation or
• AMD Ryzen Processor
• Optical drive or internet connection for software download
• USB 3.0, 3.1

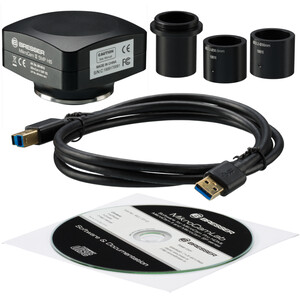

SCOPE OF DELIVERY

• camera head
• USB3.0 cable
• 23.2mm adapter, 30mm and 30.5mm
• Recording and image processing software (for Windows)
