The dew shield and the main tube are made Kruppax 50, all other parts are made from high quality aluminum, CNC turned and milled. OTA and dew shield are with RAL 9001 cream-painted white, the aluminum parts are matte black. The dew cap is screwed and moved for faster transport length and ends in the front section with an inner aperture, which effectively suppressed over a long time a case of the pigeon optic.
The 3.5 inch focuser works with a high precision rack and pinion with the drive pinion is mounted adjustable. On the extract itself is 50 mm viewfinder bracket is attached with a quick coupler, which has worked so precise that remains even after several changes the viewfinder adjusts always constant. The excerpt ends with a reducer 3'''-2''with extensive clamping and an adapter 2''-1 .25''with brass clamping ring. The complete statement of the viewfinder bracket is 360 ° rotation, so that the finder always the most comfortable for you position can be accommodated, the scheduled and focused small or medium-format camera can always be rotated to the desired position, but also help you with your diagonal with ocular changes the sky position is not solved, but only to extract spin. The rotation and the focusing drive can be clamped by a hand screw.
The pipe clamps are made of black powder coated CNC machined aluminum and come up as below with a flat base, a central threaded 1/4-20 inch, 2 inch with 1/4-20 threaded middle 2.362 inch hole axis spacing, and two outer thread 1/4-20 inch with hole spacing of 3.2 inch (Astro-Physics standard).

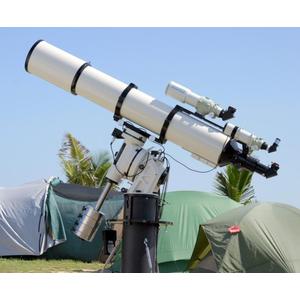

The TMB 8 "F / 9 is not just a dream device for planetary observers, but also an extremely good CCD image device.
Note: This telescope is quite heavy because of the clear front-heavy appearance, so we offer to customers to install at the rear end of the tube, an internal weight, according to your balance requirements. When ordering, please clarify this point with us.
Delivery:
• Optical CNC Leichtbautubus with sliding dew shield
• Set CNC tube rings
• 3.5 "Starlight extract with mounted 50 mm search Sustainer, both at 360 ° Rotatable
• Reducer 3.5 "/ 2" with full comprehensive new eyepiece / Zenitspiegelklemmung
• 2 "Extension 2" -80 mm
• Adapter 2 "/ 1.25" with brass compression ring
• Test report
• Cover both sides
Technical data:
• Taukappenlänge: 420mm
• Tube diameter: 238mm
• Taukappendurchmesser: 271mm
• Overall length: 1,650 mm
• Observation Length: 2030 mm
• Tube Weight: 31kg
• Back focus: 220 mm (to Binonutzung)
NOTE: DELIVERY WITHOUT MOUNT, PILLAR AND finderscope.
