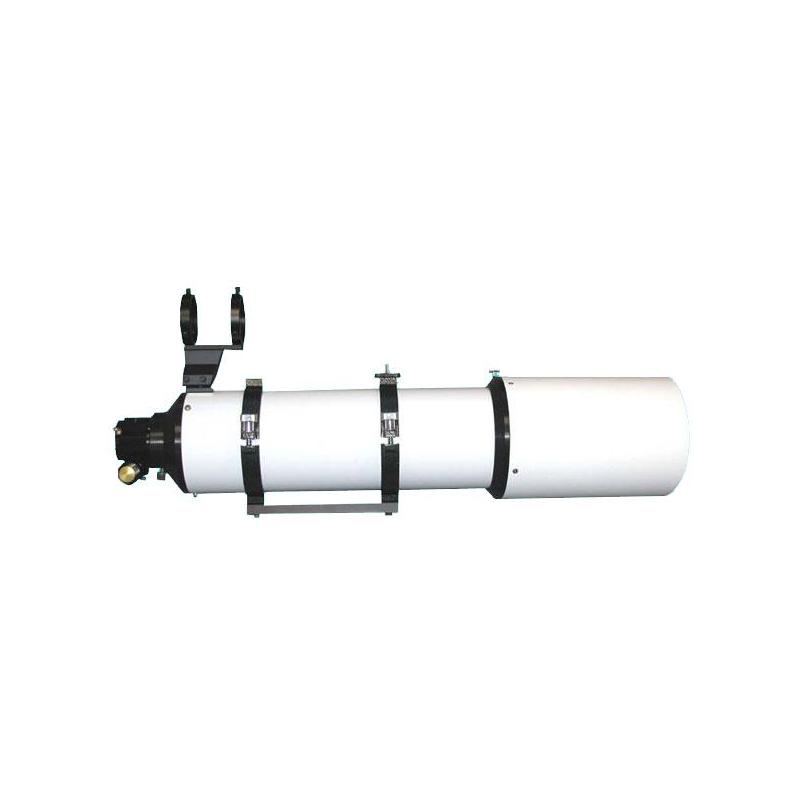

After the huge success with our APM 105 and APM Apochromat Apochromat 115 light tubes, we have now decided to also offer the APM Apochromat 130 in a lightweight version. We finished this version with retractable dew shield, 50 mm search preserver with quick coupler, pipe clamps, GP mounting rail, a 2 "Starlight Feather Touch Focuser with 1:10 reduction micro with an upstream Schiebetubus for quick focusing.
With this version you can take pictures with a CCD camera and 35 mm SLR camera and use a Großfeldbinokularansatz without Barlow / Glaswegkorrektor. For the Wide Field Astrophotography we recommend using a Tele Vue 0.80 x field Ebner / Brennweitenreduzierers.
The APM Apochromat 130F / 6 EV's so compact and lightweight that he is still an absolute travel scope and is carried on not too expensive mounts very solid. The color correction of this APM Apochromat even exceed those of competing visible F / 7 Apo (3-Linser). Also here we can offer you a high end Apo with which you can observe with the help of 2 "eyepieces and large star-fog, and also take maximum magnifications of planets and double stars.


Technical data:
• Tube weight with 3.5 "extension (or 2" excerpt): 7 kg with 2 "extension
• Overall length: 620 mm
• Observation Length: 740 mm
• Focuser 2 "Starlight Instruments Micro with 1:10 reduction
• Connection to the extract 3.5 "/ 2" and 2 "/ 1.25" Viewfinder None (Available at an additional cost)
• focusing path: 63 mm
• Tube diameter: 144 mm
• Taukappendurchmesser: 175mm
• Taukappenaußenlänge: 290mm
• Binotauglich


Delivery:
• LW tube
• retractable dew shield
• 50 mm search Sustainer
• Quick-change device
• Pipe clamps
• GP mounting rail
• Adapter 2 "/ 1.25"
• Interferometric test report
• 2 "Starlight Feather Touch Focuser with 1:10 reduction micro, 360 ° rotatable with sliding unit
• upstream Schiebetubus for quick focusing
