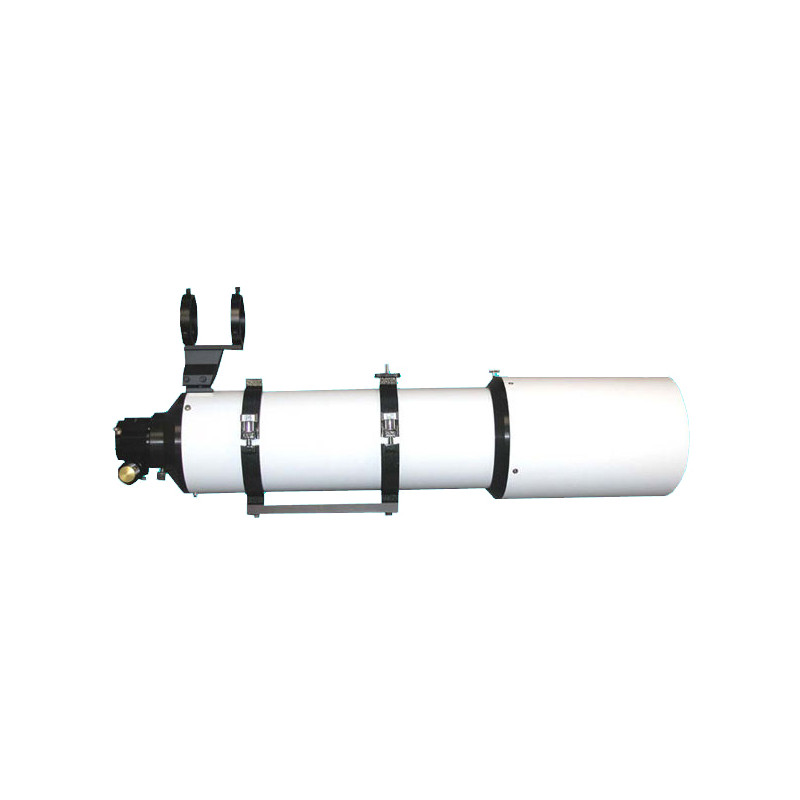

We finished this version with retractable dew shield, 50 mm search preserver with quick coupler, pipe clamps, GP mounting rail, a 2 "Starlight Feather Touch Focuser with 1:10 micro reduction with an upstream Schiebetubus for quick focusing. With this first release you can with a CCD camera and 35 mm SLR cameras use a photograph and Großfeldbinokularansatz without Barlow / Glaswegkorrektor.
This new three-lens Vollapo long focal length is calculated using a polychromatic Strehl ratio of 98% and now shows in practice a color correction is the only really comparable with real mirror optics. The visual quality can be simply described only as perfect. Because of the long focal length and hence lower demands on the Okulargeometrie are possible with this model magnifications can reach no other equal-sized high end Apo. Despite its size, this apo is still fully portable and comes with even more affordable for normal mounts very well.


Technical data:
• Super Planetary Apo triplet gap
• Tube Weight: 7.0 kg
• Overall length: 1,040 mm
• Observing length with retracted focuser: 1200 mm
• Observing length with 2 "star diagonal: 1300 mm
• Focuser: 2 "Starlight Instruments with Schiebetubus, rotatable
• Weight clamps: 1 kg
• Adapter to 1.25 "including
• Viewfinder: Optional
• focuser with Schiebetubus: 165 mm
• Focus point: located 220 mm behind the retracted focuser
• Tube diameter: 144 mm
• Taukappendurchmesser: 175 mm
• binotauglich


Delivery:
• LW tube
• retractable dew shield
• 50 mm search Sustainer
• Quick-change device
• Pipe clamps
• GP mounting rail
• Adapter 2 "/ 1.25"
• Interferometric test report
• 2 "Starlight Feather Touch Focuser with 1:10 reduction micro, 360 ° rotatable with sliding unit
• upstream Schiebetubus for quick focusing
