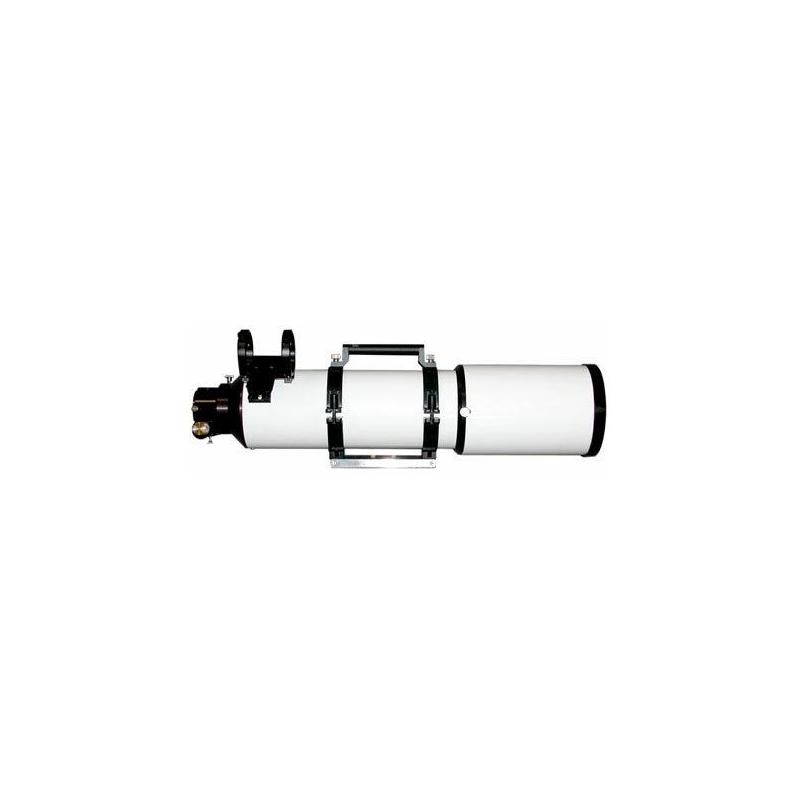

Our APM Apochromat 115 mm F / 7 Apo is practically the successor of the now set APM 100/800, thus we will get something of the many 4 "apo's on the market not only by opening a little more clearly visible from the higher resolution experience but also by an optical quality and color correction, no other apo's in this size even comes close.
With only 805 mm focal lengths they can with a max. 2 "wide angle still huge 3.4 ° to achieve the visual field. Applies also in this model, regardless of the magnification, which star, you will not see the hint of a halo can and will affect in particular for planetary observation where any residual color errors nor to smear the leads finest details.
The package contains the pipe clamps, GP-rail and the viewfinder bracket 50 mm, the sliding dew shield. Used a 2 "Feather Touch focuser (Made in USA) with 1:10 micro reduction. The 2" extension is bolted to a Schiebetubus, so a usable back focus arises of 240 mm, in turn, the use of a binoviewer with 2 enables "star diagonal, without being forced to use a Barlow lens must. The whole tube for the use of a 2 "diagonal is optimized.


Technical data:
• Weight including pipe clamps: 6.45 kg
• Tube diameter: 135 mm
• Taukappendurchmesser: 156 mm
• Adjustable extension: 100 mm
• Tube length with extended dew shield and Schiebetubus extended with extension: 780 mm
• Tube length with extended dew shield retracted and Schiebetubus with extension: 707 mm
• Overall length: 627 mm
• backfocus including ausgefahrenem Schiebetubus: 146 mm
• Back focus without extension: 246 mm
• Binotauglich


Delivery: • LW tube
• retractable dew shield
• 50 mm search Sustainer
• Quick-change device
• Pipe clamps
• GP mounting rail
• Adapter 2 "/ 1.25"
• Interferometric test report
• 2 "Starlight Feather Touch Focuser with 1:10 reduction micro, 360 ° rotatable with sliding unit
• upstream Schiebetubus for quick focusing
